Narrow Door Clearance

Without partial disassembly, the Logic Vue is 39.6 inches (100.7 cm) wide. To fit
through a narrow door, the Logic Vue can be partially disassembled to reduce the
product width to 35.0 inches (89 cm). Follow the instructions below to partially
disassemble the Logic Vue for narrow door clearance.
The following tools are required:
• #2 Phillips screwdriver (Cordless Drill and Phillips bit recommended)
• 5/16" wrench
• 5/16" nut driver (adapter for use with Cordless Drill recommended)
• 1/2" wrench AND 1/2" socket with ratchet
• Step Ladder
Step 1 – Upper Panel Removal
Reference Figure 4-9. Remove the Plate Screws (16) and Cap Plates (8). Lift off the
Top Panel and Pre-Filter.
Remove the two (2) Top Screws on the far right and left end of the Upper Front Panel.
Remove the three (3) Front Screws on each end of the Upper Front Panel. Tilt the
Upper Front Panel away from the enclosure and lift the panel off. Repeat these
instructions for the Upper Rear Panel.
TOP PANEL
TOP
SCREWS
(2)
FRONT
SCREWS
(3)
CAP
PRE-FILTER
PLATES
(8)
33

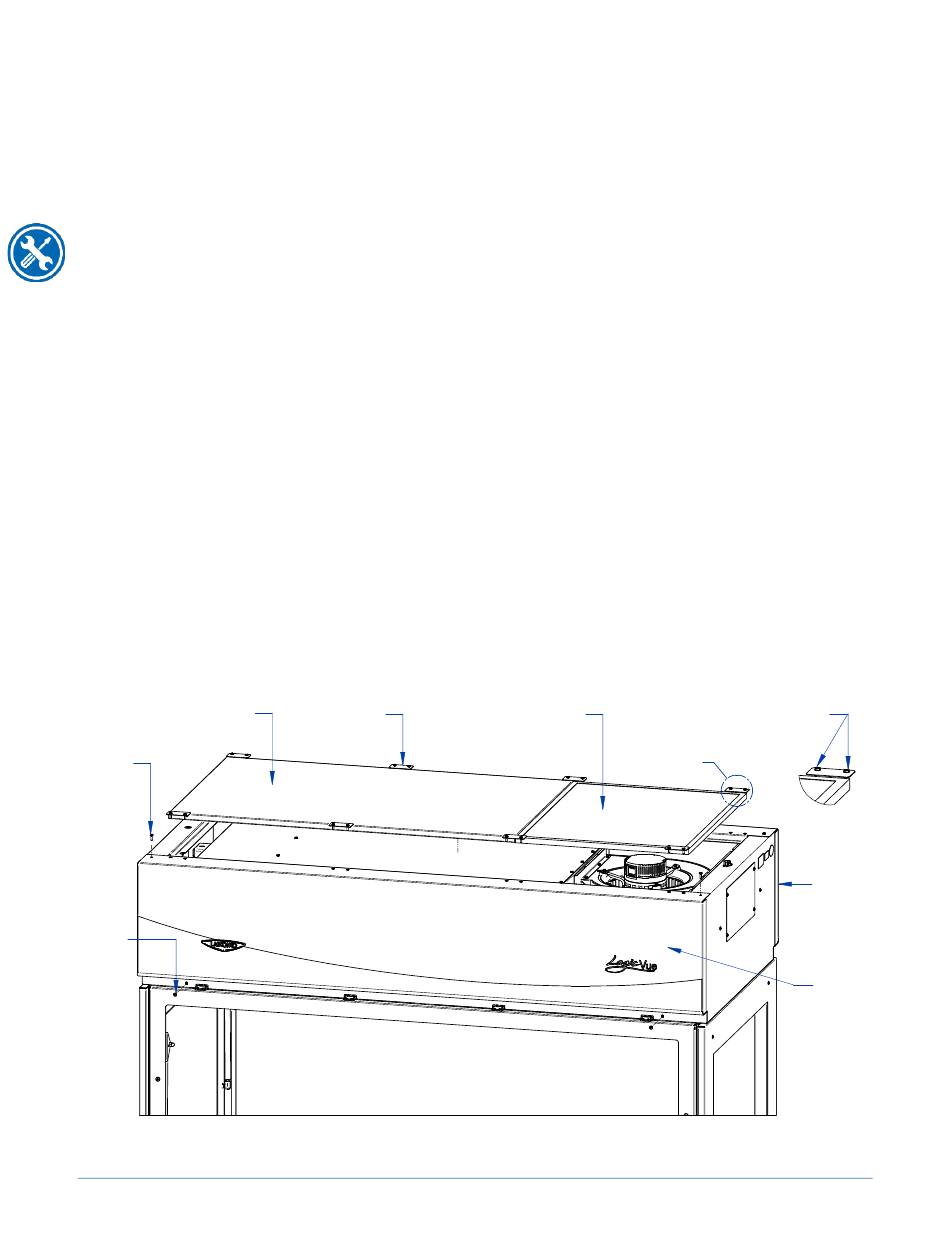

Figure 4-9
PLATE SCREWS
(16 TOTAL)
A
DETAIL A
UPPER REAR
PANEL
UPPER FRONT
PANEL
