Step #3
1. Locate the free end of the Wire Harness (reference Figure 12-8) supplied with
the Airflow Sensor Kit.
Note: If the Wire Harness is not connected to the Airflow Sensor, please connect
it now. The two connectors on either end of the Wire Harness are different, and
therefore it is not possible to install the Wire Harness backwards.
2. Run the free end of the Wire Harness to the right, rear corner of the Logic Vue.
Locate the open 6-pin connector on the side of the Electrical Box. Reference
Figure 12-9.
Note: This 6-pin connector is difficult to reach, and the Electrical Box may need
to be removed slightly to make the connection.
3. Connect the free end of the Wire Harness to the 6-pin connector on the side of
the Electrical Box. It should snap or click in place.
4. Neatly coil excess cable from the Wire Harness and zip-tie (not supplied) or
otherwise secure it in place.

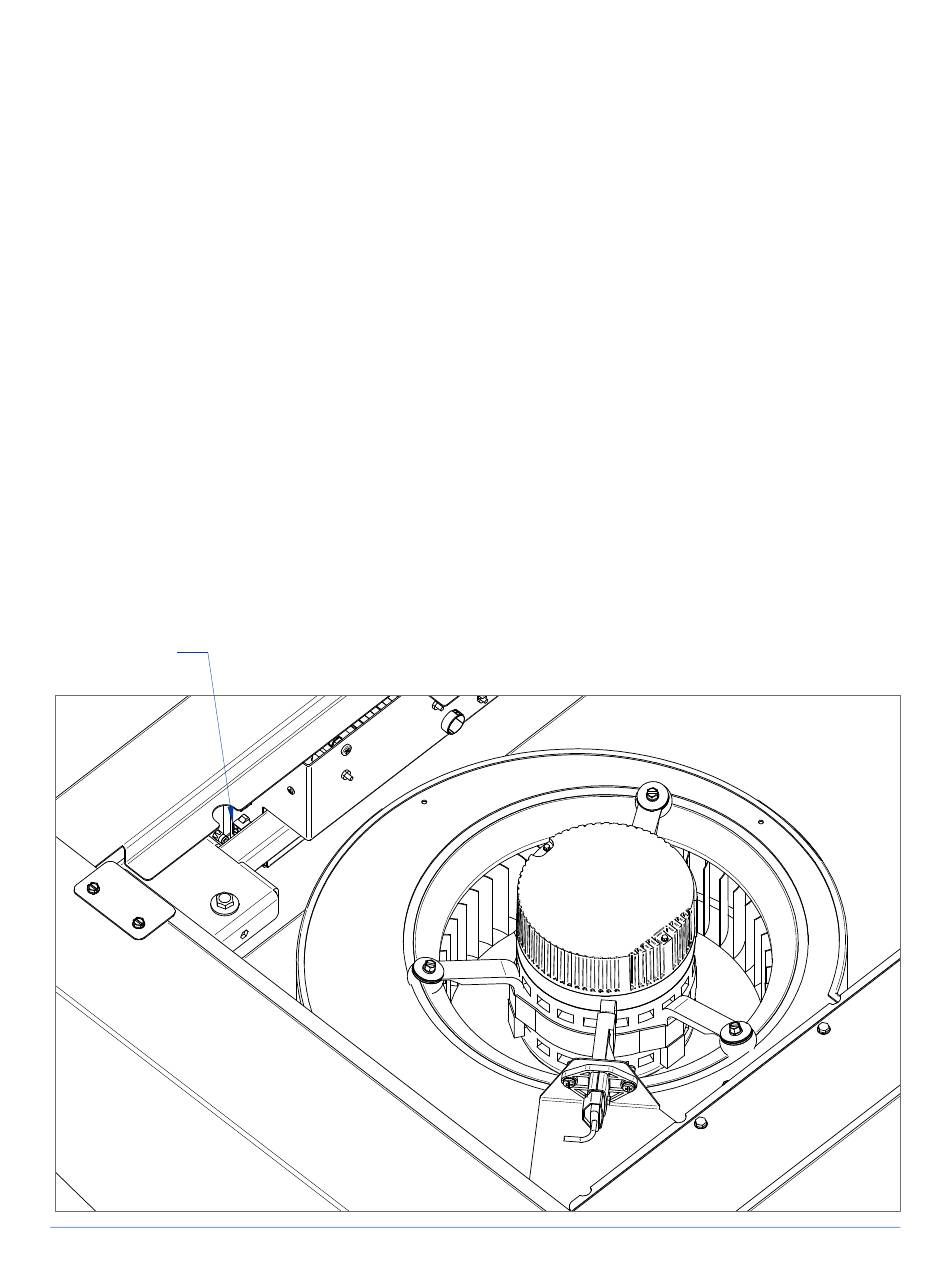

6-PIN
CONNECTOR
148
Figure 12-9
