Labconco Logic Vue User Manual page 42

Step 4 – Supply Filter Removal
Reference Figure 4-18. Using the 1/2" socket and ratchet, turn each of the Plenum Lift
Bolts CLOCKWISE to raise the Plenum off of the Supply HEPA Filter. Do not attempt to
turn each bolt the entire distance, rather work in a pattern turning each bolt no more
than 10 revolutions, then move to the next. This will lift the Plenum evenly. Repeat this
pattern until the Plenum is high enough to slide the HEPA Filter free.
Using two (2) persons, slide the Supply HEPA Filter out. Be very careful not to touch
the media. It WILL damage easily. Set the filter on end (standing up) somewhere that
is safe from accidental contact.

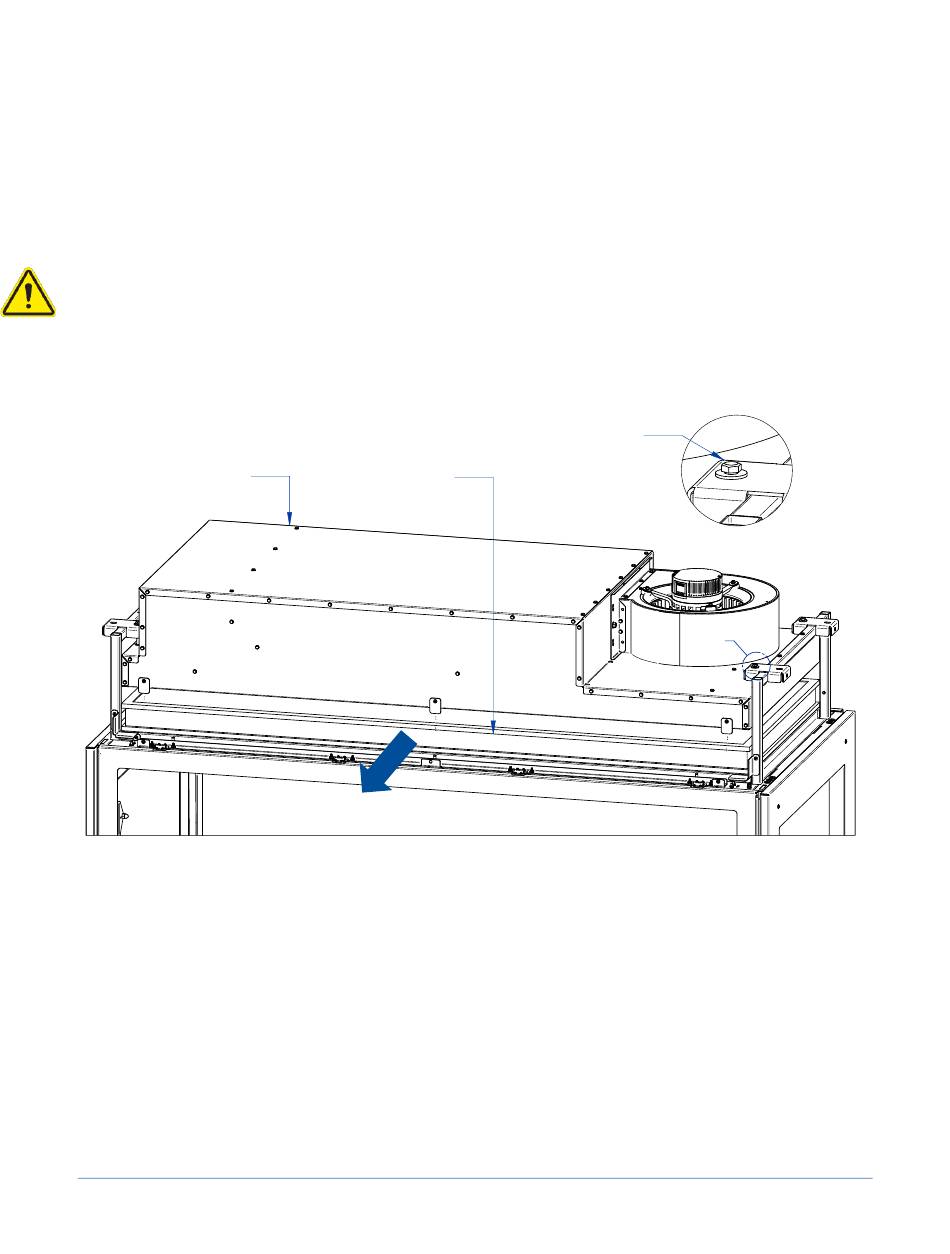

Figure 4-18
PLENUM LIFT
BOLTS (4)
PLENUM
SUPPLY HEPA
FILTER
DETAIL E
E
FRONT VIEW
