Changing the Pre-Filter

Over time the top Pre-Filter will accumulate dust and particulate from the room air
drawn through it. To change the Pre-Filter reference Figure 10-3 and follow these
instructions.
1. Using a ladder and following all facility safety guidelines, locate the Pre-Filter
Plates that hold the Pre-Filter in place.
2. Remove the two Screws on the Plates that hold the front two Pre-Filter corners.
3. Remove the two Pre-Filter Plates.
4. Pull the front edge of the Pre-Filter up and slide the Pre-Filter forward.
5. Remove the old Pre-Filter and replace it with the new Pre-Filter.
6. Replace all parts.
117

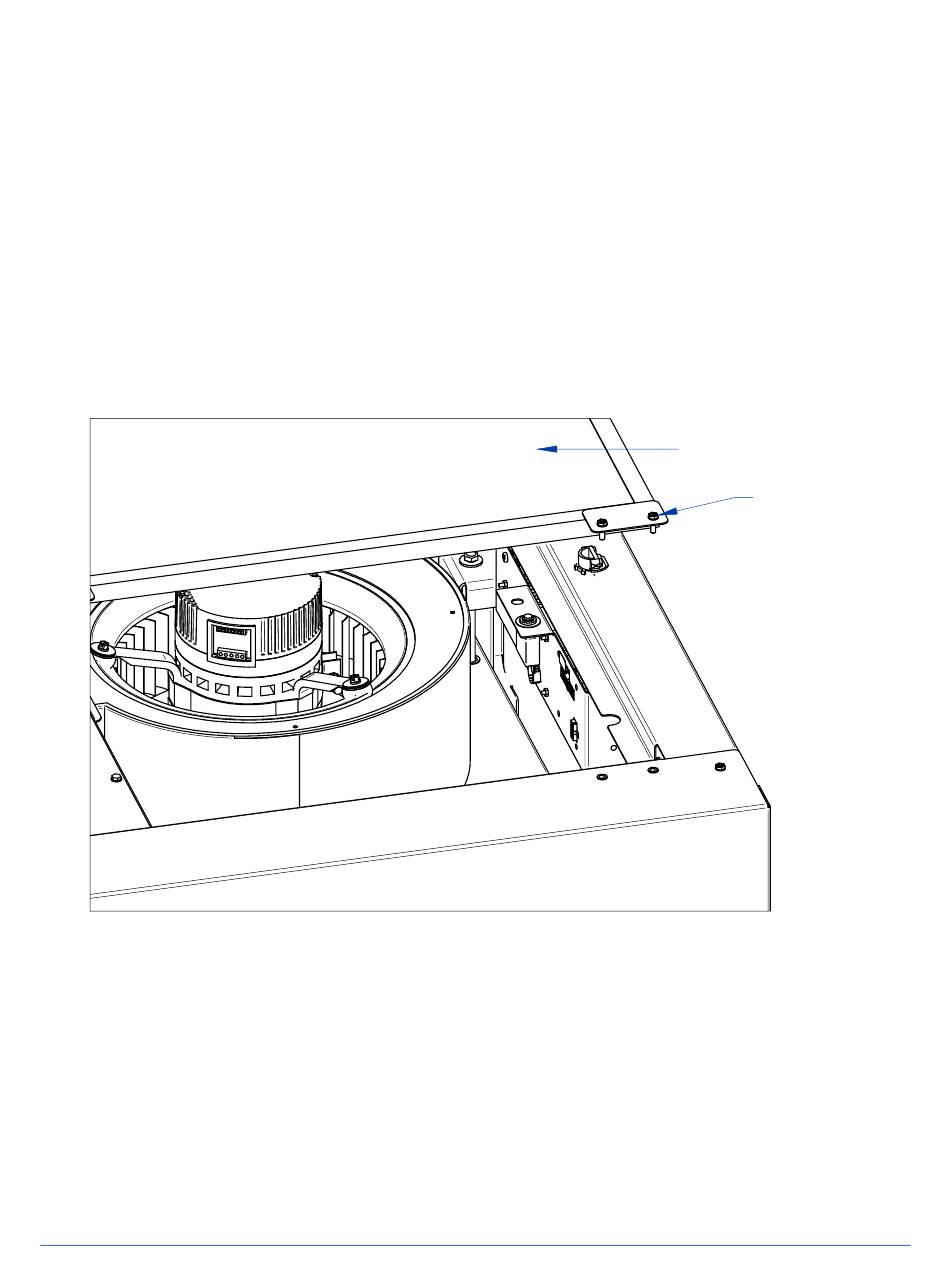

Figure 10-3
PRE-FILTER
PRE-FILTER
PLATE (2)
