End Panels Removal
Reference Figure 11-3. Remove the eight (8) Screws on the Top End Panel. Note that
two (2) Screws hold the Pass Thru Cover in place, and this Cover will come off when
removing these screws. Rotate the top of the Top End Panel away from the enclosure,
then lift panel up to completely remove. Remove the four (4) Screws on the Bottom End
Panel, and remove the Bottom End Panel. Repeat these instructions on the opposite
end.
123

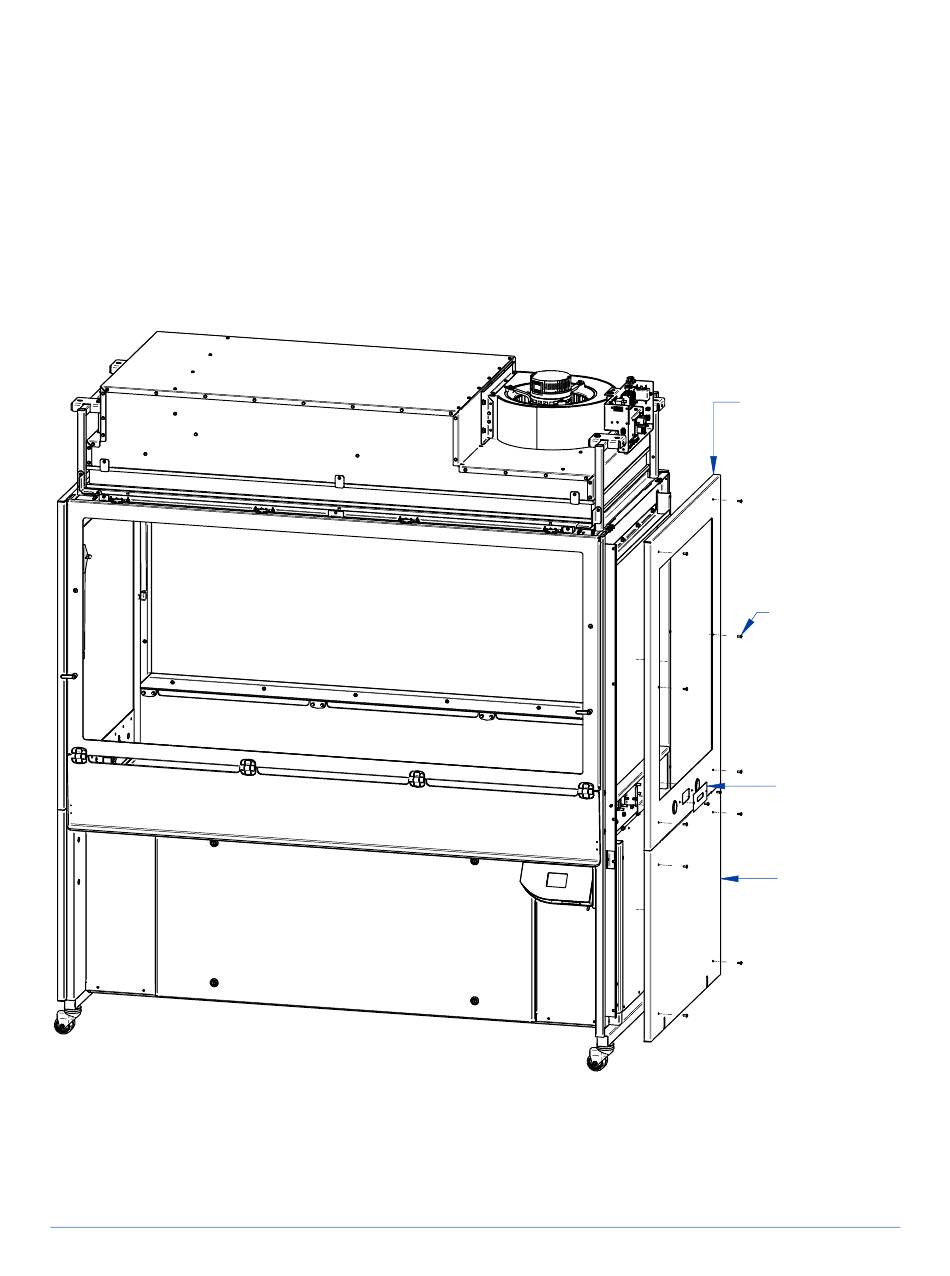

Figure 11-3
TOP END
PANEL
SCREWS
(12 PER END)
PASS THRU
COVER
BOTTOM
END
PANEL
