BOLT
BLOWER/MOTOR
BLOWER CONNECTION

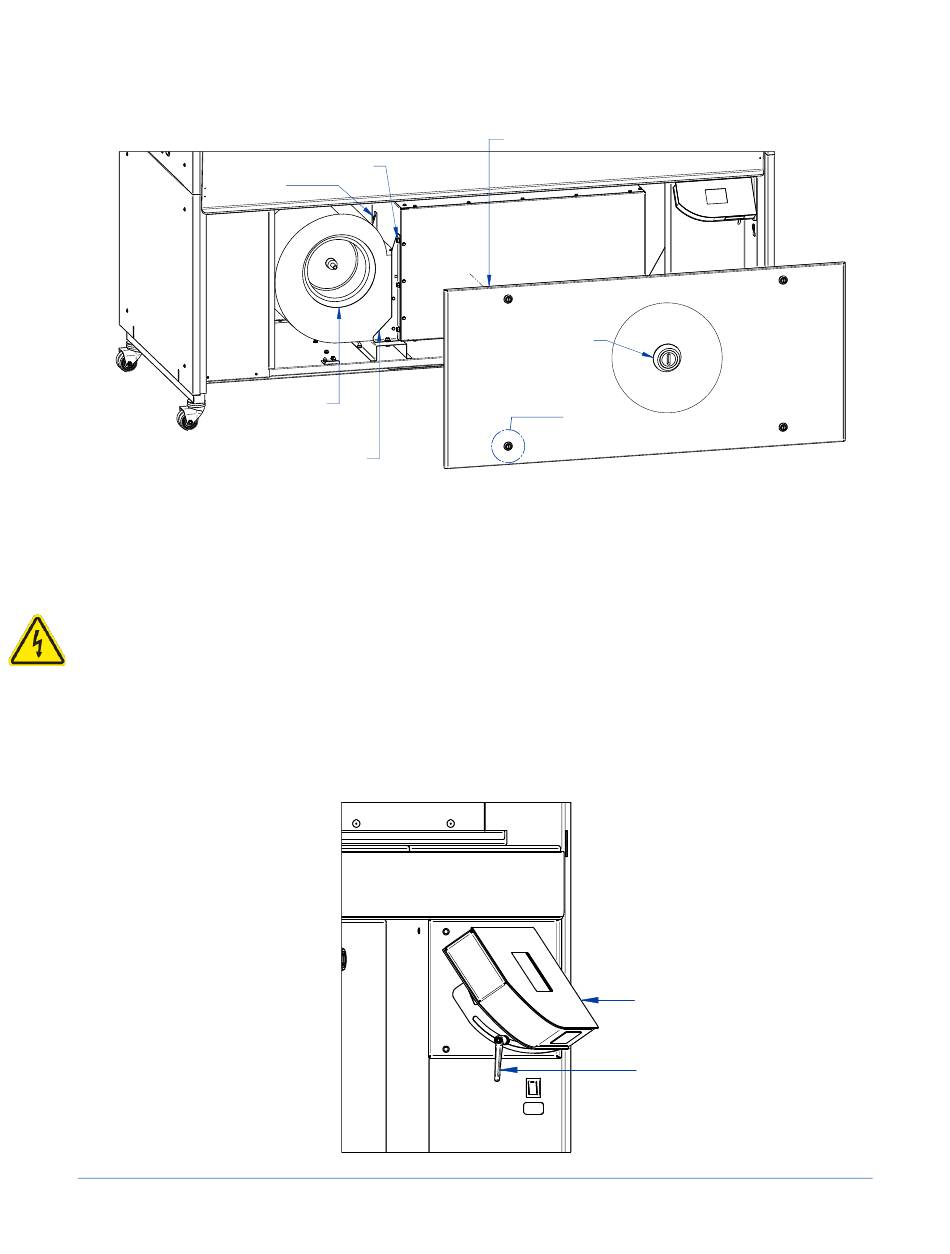

Display Board Replacement

Should the Display need replacement, follow these instructions.
1. Disconnect electrical power from the enclosure. Make sure you use a Static
Dissipative wristband grounded to the enclosure's chassis when handling the
Display Board. Rotate the Locking Handle (Figure 11-13) counter-clockwise
approximately 120 to 180 degrees to free the Display so it can be rotated.
2. Rotate the Display Housing to the outer-most position. See Figure 11-13.
BOLTS (4)
EXHAUST
PLATES (2)
LOWER FRONT SERVICE PANEL
PANEL LATCHES (4)
DETAIL
DETAIL VIEW
Figure 11-13
132
Figure 11-12
DISPLAY
LOCKING
HANDLE
