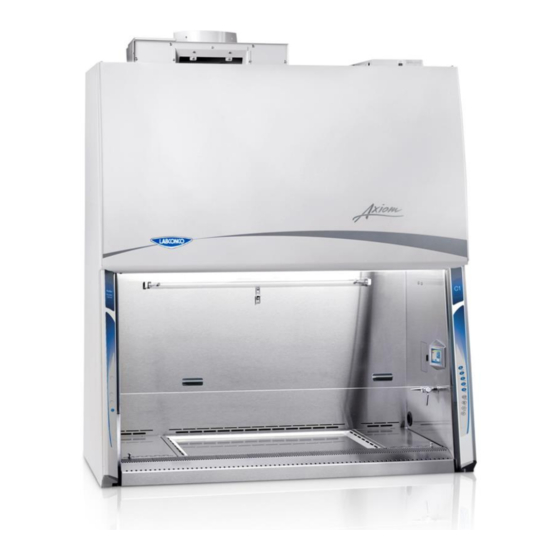

Summary of Contents for Labconco Axiom C1

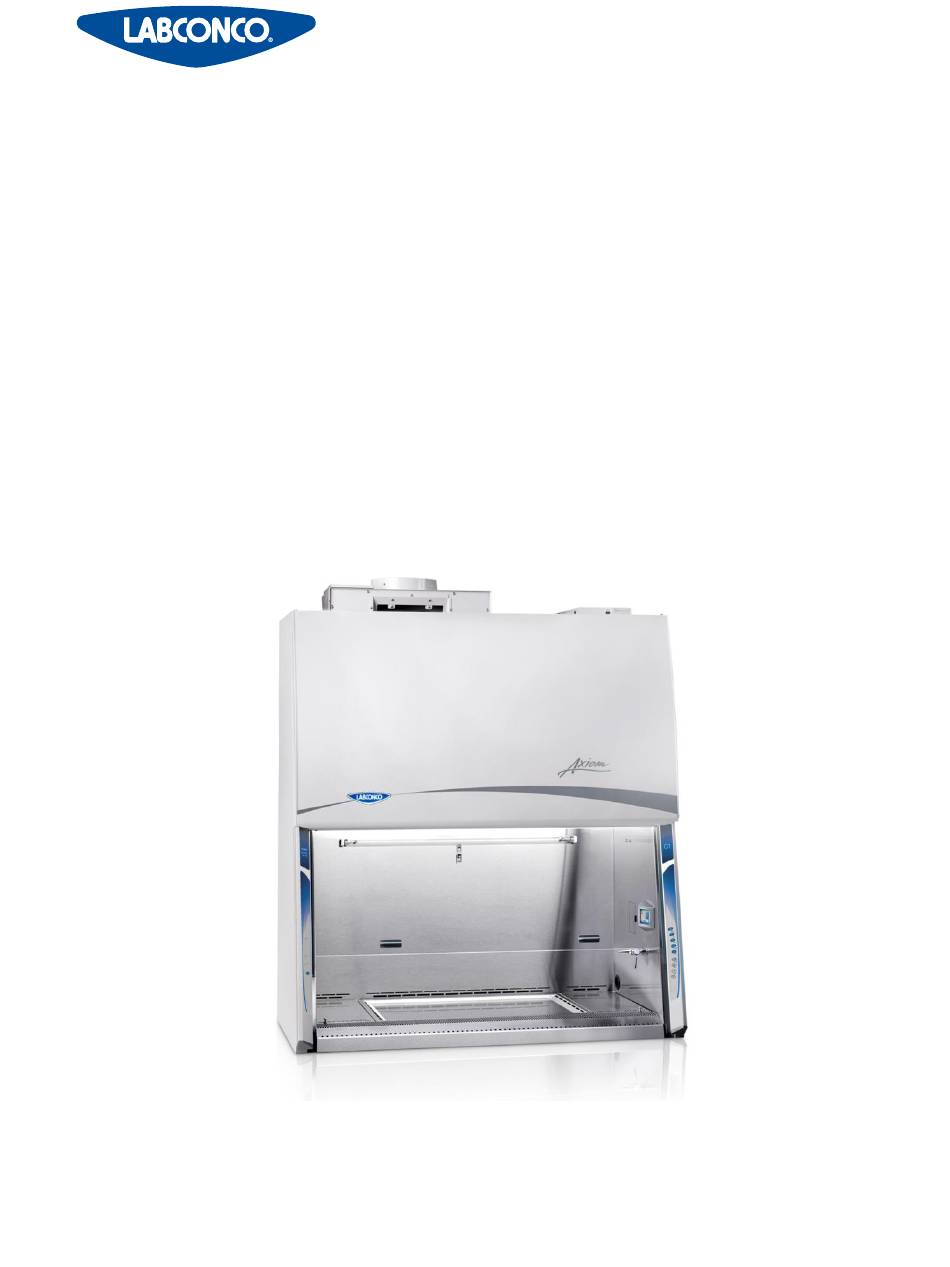

- Page 1 Please read user’s manual before operating equipment Original Instructions LABCONCO CORPORATION 8811 Prospect Avenue Kansas City, MO 64132 (800) 821-5525 I +1 (816) 333-8811 labconco.com User’s Manual ® Axiom Type C1 Biosafety Cabinets Register this product...
- Page 2 Axiom ® Type C1 Biosafety Cabinets 2021—Present 30441xxx1 30448xxx1 30461xxx1 30468xxx1...
- Page 3 Warranty Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not warranted.
-
Page 4: Table Of Contents
Table of Contents 1: INTRODUCTION About This Manual Contents Included 2: BEFORE YOU INSTALL Location Requirements Clearance Requirements Electrical Requirements Service Line Requirements Exhaust Requirements Air-Tight Damper 3: SAFETY PRECAUTIONS Typographical Conventions General Safety Precautions Safety Precautions for this Product 4: INSTALLATION Unpacking Electrical Connection... - Page 5 5: PERFORMANCE FEATURES Laminar Airflow Directional Airflow Cabinet Air Intake (Front Grille) Chem-Zone Directly Exhausted Work Zone HEPA Filters ULPA Filters Motor/Blower UV Lamp (optional) 6: MYLOGIC OPERATING SYSTEM Home Screen Display Sleep Mode Keypad Main Menu Configuration Submenu Audible Tones Selecting a Language Setting the Clock Setting Automatic Operation Options (Nightsmart...
- Page 6 Alarms Power Loss Alarm Sash Height Alarm Blower Failure Alarm Exhaust Airflow Check Starting Exhaust Alarm Running Exhaust Alarm – Active Protection Overdriven Exhaust Alarm 7: USING YOUR AXIOM TYPE C1 Feature Overview System Reset Switch Keypad Sash Operation Blower Operation Light Operation Outlet Operation Vacu-Pass...
- Page 7 Front Grille Removal Front Panel Removal Changing the LED Lamps Changing the Optional UV Lamp Storage 9: ACCESSORIES Telescoping Base Stands Manual or Electric Hydraulic Lift Base Stands SoLo Electric Hydraulic Lift Base Stands IV Bar Flat Work Surface Airflow Sensor Bag In Bag Out Exhaust HEPA Filter Sash Prop 10: TROUBLESHOOTING...
- Page 8 Power Data Motor Specifications Environmental Conditions APPENDIX D: QUICK CHART REFERENCE...
-
Page 9: 1: Introduction
This manual is written for the installer and user of this product. For detailed service, certification, or technical information, please utilize the Technical Manual located on the website labconco.com. This manual contains important operation and safety information. When you see a symbol, such as the INFO symbol to the left, pay close attention to the information provided. -
Page 10: 2: Before You Install
2: Before You Install Before you install the product, the site should be prepared for installation. Examine the location where you intend to install it. You must be certain that the area is level and of solid construction. In addition, a dedicated source of electrical power must be located within 10 feet (3 m) of the installation site. -
Page 11: Clearance Requirements
On 100V and 115V models, both internal electrical outlets are protected by a ground fault interrupter circuit (GFIC). Labconco does NOT recommend connecting the product’s power cord into a GFIC outlet. GFIC outlets can nuisance trip, resulting in complete removal of power to the product. -
Page 12: Exhaust Requirements
Note: The use of air or gases under high pressure should be avoided as they may seriously disrupt the airflow patterns in the cabinet. Exhaust Requirements This product may be connected to a remote (building) exhaust system, when operated as a Type C1 biosafety cabinet in B mode. Note: Only connect the biosafety cabinet to a suitable exhaust system that is dedicated to the biosafety cabinet, or dedicated to exhausting laboratory ventilation equipment. - Page 13 This will allow for proper balancing of the system. See Figure 2-5. Labconco highly recommends installing an air-tight damper above each biosafety cabinet when connected to a building exhaust system. See Air-Tight Damper information on the following page. The air-tight damper allows for fine adjustment of the exhaust air volume provided, in order to correctly set the necessary exhaust airflow for each biosafety cabinet.
-
Page 14: Air-Tight Damper
The exhaust system must be capable of moving the following volumes of exhaust air at the negative pressures listed. The Airflow Volumes are the values recorded via direct measurement using a flow hood at the front opening of the cabinet. The Concurrent Balance Values are measured in the exhaust duct via traverse methodology, and will always be higher due to differences in volume measurement methodologies. -
Page 15: 3: Safety Precautions
3: Safety Precautions Before unpacking, installing, operating, maintaining, or servicing this equipment, read the following safety warnings and precautions. Avant le déballage, l’installation, le fonctionnement, l’entretien ou la maintenance de cet équipement, lire les avertissements de sécurité et les précautions d’emploi. –... - Page 16 – Air or components that will be very hot. BURN RISK (HIGH TEMPERATURE) Take care not to touch these defined areas. Failure to avoid these areas may result in moderate to severe injury. – Air ambiant ou RISQUE DE BRÛLURE (TEMPÉRATURE ÉLEVÉE) composant devenant très chaud.
-
Page 17: General Safety Precautions
– Do not lift or move this equipment without assistance. LIFTING HAZARD – Ne pas soulever ou déplacer cet équipement sans DANGER DE LEVAGE assistance. – Magnets or magnetic field present. MAGNETIC FIELD IN USE – Présence d'aimants ou de champ CHAMP MAGNETIQUE UTILISE magnétique. - Page 18 Never contact moving parts with your person. Failure to avoid moving parts will result in moderate to serious injury, death, or damage to property. Ne jamais toucher les parties mobiles. Le non-respect de la consigne consistant à éviter les pièces mobiles peut entraîner des blessures graves, la mort ou des dommages matériels.
-
Page 19: Safety Precautions For This Product
If your application requires loading more than 50 lbs., contact Labconco’s Product Service Department at 800-821-5525 or 816-333-8811 for assistance. - Page 20 HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the cabinet; contact a local certification agency or Labconco at 800-821-5525 or 816-333-8811 for re- certification information. The HEPA filters in the biosafety cabinet will gradually accumulate airborne particulate matter from the room and from work performed in the cabinet.
-
Page 21: 4: Installation
4: Installation With the installation site properly prepared, you are ready to unpack and install the equipment. This section covers how to: Unpack and move the product Install the product Connect electrical service Connect service utilities ... - Page 22 Note: United States Interstate Commerce Commission rules require that claims be filed with the delivery carrier within fifteen (15) days of delivery. Do not return goods without the prior authorization of Labconco. Unauthorized returns will not be accepted. If the product was damaged in transit, you must file a claim directly with the freight carrier.
- Page 23 Note: The cabinet is very top heavy. Use caution when lifting or moving it. Labconco offers accessory base stands in a variety of configurations to suit your particular needs. If assembly of the base stand is required, the assembly instructions are packaged with the base stand.
- Page 24 Figure 4-2 Side panel Visual appearance of biosafety cabinet and exhaust connection Attachment may vary by model. bolts Mounting (Supplied with stand) DETAIL A Stand rail Installation Instructions...
- Page 25 Step 3 The front sash will not slide open yet. The sash counterweights are pinned for shipment. The Side Panels must still be removed or hinged open for this step. Locate the Support Pin and Clevis Pin on each sash counterweight. See Figure 4-3. For convenience a yellow tag and string are provided.
-
Page 26: Electrical Connection
Electrical Connection The product’s power cord is located in the Parts Box removed in the final step of Unpacking (previous section). Connect the IEC end of the power cord to the IEC connector located on the rear side of the top electrical box. See Figure 4-4. Connect the plug end of the power cord into an appropriately rated outlet (see Electrical Requirements in Section 2: Before You... -
Page 27: Service Line Connection
Service Line Connection Service fixtures are not pre-installed on all models. If your model does not include a service fixture, this step may be skipped. A service fixture can be field installed at any time, the service fixture kit will contain instructions for installing the fixture. Follow the instructions below to make the plumbing connection to the service fixture. -
Page 28: Exhaust Connection
Exhaust Connection The Axiom Type C1 biosafety cabinet can operate in one of two modes: A-mode or B- mode. When operating in A-mode, the HEPA-filtered exhaust air is recirculated back into the room environment, and therefore does not require an Exhaust Connection. If operating this product in A-mode, this section may be skipped. -
Page 29: Drain Valve Installation (Optional)
Step 2 Connect appropriately rated exhaust ducting to the duct collar provided on the exhaust cover assembly (see Figure 4-6). The duct collar provided is sized for 10 inch nominal stainless steel duct. The exhaust ducting will rest INSIDE the duct collar. Consult local codes and regulations, as well as the facility’s SOP to ensure the exhaust ducting chosen meets all applicable requirements, and is installed to applicable specifications. - Page 30 3. Apply a light coating of silicone sealant (not provided) to the mounting surface of the drain flange. Attach the drain flange under the bottom of the cabinet as shown in Figure 4-7. Wipe off any excess sealant from the cabinet bottom. Ensure that the center drain hole is unobstructed.
-
Page 31: Certification
If you have any questions regarding certification agencies or help locating one, contact Labconco’s Product Service Department at (800) 821-5525 or +1 816-333-8811. Detailed information for product certification is located in the Axiom Type C1 Technical... -
Page 32: 5: Performance Features
5: Performance Features The Axiom Type C1 biosafety cabinet protects items placed on the work surface, the personnel working with material inside the cabinet, and the lab environment, when operated to manufacturer’s specifications and proper aseptic techniques are employed. This protection is provided through the use of laminar airflow, HEPA filtration, careful cabinet construction, and Constant Airflow Profile (CAP) ECM motors. -
Page 33: Directional Airflow
Directional Airflow Directional airflow also plays a key role in cabinet performance. Air is drawn into the front of the cabinet at the front grille. This “curtain” of air makes it more difficult for aerosols to escape out of the work area of the cabinet and into the outside environment. This airflow is often calculated and referred to as the Inflow Volume or Average Inflow Velocity. -
Page 34: Chem-Zone Tm Directly Exhausted Work Zone
Chem-Zone Directly Exhausted Work Zone Unique to the Axiom is the Chem-Zone, a directly exhausted work zone. The central portion of the work surface is surrounded by grilles on the sides, front and back. Air entering these grilles is drawn to the Exhaust HEPA filter, and when the cabinet is in B- mode and connected to an exhaust system, out of the laboratory. -
Page 35: Ulpa Filters
quantified, and this establishes the efficiency of the filter. The HEPA filters used in the Axiom are at least 99.99% efficient in removing particles 0.3 micron. Figure 5-4 Filter frame Polyurethane seal between media pack and filter frame Filter media pack Note: The HEPA filter media is very fragile. -
Page 36: Motor/Blower
(ECM). The ECM is a brushless DC motor that includes its own power supply to convert the incoming alternating current to direct current, as well as its own microprocessor to control and measure the motor’s operation. The motors utilize Labconco’s exclusive Constant Airflow Profile (CAP) programming to deliver a consistent volume of air, throughout the life of the HEPA filters. -
Page 37: Uv Lamp (Optional)
UV Lamp (optional) The optional UV lamp generates a primary wavelength of light of 254nm. A secondary emission is in the visible (blue) wavelength, resulting in the characteristic blue color while operating. UV light at this wavelength is biocidal, primarily by creating thymine dimers in DNA. -
Page 38: 6: Mylogic Operating System
6: MyLogic Operating System The Axiom Type C1 biosafety cabinet features the MyLogic operating system, which provides clear status information on the LCD display and user control with the keypad (Figures 6-1 & 6-3). Read this section along with Section 7: Using Your Axiom Type C1 to fully understand the features and controls of this product. -
Page 39: Display Sleep Mode
Display Sleep Mode The LCD display will enter sleep mode when the blower is off (Figure 6-2). If the blower is not turned on, and no keys are pressed on the keypad, after 5 minutes the screen will automatically turn off to relax the LCD display, which extends its life. When the display transitions from sleep mode to off, the screen will appear black. -
Page 40: Main Menu
Main Menu Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. To access the Main Menu from the Home Screen, press [MENU] on the keypad. See Figure 6-4. The display will change to the Main Menu. To return to the Home Screen, press [MENU]. -
Page 41: Configuration Submenu
Configuration Submenu Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. Figure 6-6 This submenu allows you to set preferences for audible tones, set the language, set the clock, and configure how the unit operates when the sash is opened or closed (SmartStart / Nightsmart Audible Tone... -
Page 42: Setting The Clock
Setting the Clock Figure 6-9 Select either 12 Hour (AM/PM) format or 24 Hour format. [OK/MUTE] Figure 6-10 The selected field (Hours Minutes) flashes, set the current time using [UP] and [DOWN]. Hours will flash first, once correct, use [OK/MUTE] to switch to Minutes. -
Page 43: Setting Automatic Operation Options
Setting Automatic Operation Options (Nightsmart / SmartStart The cabinet allows configuration to activate functions automatically when the sash is opened or closed. The following screens will display sequentially with [OK/Mute]. Figure 6-11 The first screen provides the option of activating the blower;... -
Page 44: Navigating The Settings Submenu
Navigating the Settings Submenu Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. Figure 6-16 This submenu allows you to select: Units of Measure, System Lock, Data Output, or Parameters. Units of Measure System Lock Data Output UV Parameters... -
Page 45: Uv Parameters
UV Parameters For models equipped with the optional UV light, the cabinet has an integral UV light maintenance system. It allows you to monitor how many hours the lamp has been on, to reset the UV lamp hourmeter, and to define how many hours you want the UV lamp to operate before receiving a reminder to replace it. -
Page 46: Timer Operation
Timer Operation The timer allows activation of an interval (countdown) or elapsed (stopwatch) timer. The timers cannot be operated simultaneously. Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. To access the Timer Menu, press [Timer] anytime during normal operation (from the Home Screen). -
Page 47: Airflow Alert
Airflow Alert While the blower is on, any sudden disruption to the airflow within the cabinet will trigger an Airflow Alert. When an Airflow Alert activates, the display will automatically change (Figure 6-23), and the audible alert tone will sound. Figure 6-23 The most common causes of an Airflow Alert are: ... -
Page 48: Alarms
Alarms Any alarm that activates requires the user’s immediate attention, and some form of actionable response to clear the alarm. Figure 6-24 Power Loss Alarm The cabinet has lost power. See Figure 6-24 Press [OK] on the keypad to acknowledge that a power loss occurred. -
Page 49: Exhaust Airflow Check
The previous Alarms (Power Loss, Sash Height, and Blower Failure) can occur on any Axiom Type C1 cabinet whether it is operating in A-mode or B-mode. The following Alarms will only occur on the Axiom Type C1 cabinet when operating in B- mode, as these alarms are only related to build exhaust problems. -
Page 50: Overdriven Exhaust Alarm
Figure 6-30 Overdriven Exhaust Alarm When operating in B-mode, and the building exhaust airflow is too high, this alarm will be displayed. All blowers will automatically be turned off if this alarm condition occurs. Press EXHAUST FAILURE BUILDING EXHAUST DETECTED AIRFLOW TOO HIGH [BLOWER] on the keypad to clear the alarm. -
Page 51: 7: Using Your Axiom Type C1
7: Using Your Axiom Type C1 This section details the functional features and proper techniques for safely and efficiently using the Axiom Type C1 biosafety cabinet. Feature Overview Figure 7-1 illustrates key features and components of the product. Figure 7-1 Reset Switch Inlet Relief Valve Attachment Point... -
Page 52: System Reset Switch
System Reset Switch The system reset switch removes power from the control board and microprocessor. It is located on the front side of the electrical box on the top, right side of the product. See Figure 7-2. This switch will NOT remove all electrical power from the product. For service operations, always disconnect the main electrical connection prior to removing service panels. -
Page 53: Keypad
Keypad The keypad of the cabinet is shown in Figure 7-3. Take a moment to familiarize yourself with the buttons, their locations and functions. Also familiarize yourself with the display located on the right side wall. The display will report system functions, such as filter capacity, timer displays, alarm or error messages, as well as icons that illuminate when cabinet functions such as the light and blower are operational. -
Page 54: Sash Operation
Sash Operation The counterbalanced, anti-racking sash mechanism requires only a few pounds of force to move the sash up or down. You can open or close the sash smoothly with one or two hands positioned on either handle. The sash position alarm and safety interlock system senses the sash position and acts appropriately. -
Page 55: Vacu-Pass Tm Cord & Cable Pass Thru (Optional)
activated or deactivated from the Keypad. To activate or deactivate power to the outlets, press [OUTLET]. Vacu-Pass Cord & Cable Pass Thru (optional) The Vacu-Pass allows for passage of a cord, cable, or tube from within the product. The pass thru provides a sealed plug, and the plug housing is maintained under negative pressure to safely pass cords through the right side wall of the product. -
Page 56: Working In The Cabinet
4. Position the cord or cable as it will be used in the cabinet, and then push the plug back into the body of the portal until it seats in the portal. Reinstall the grommet. Working in the Cabinet Working in the Axiom Type C1 biosafety cabinet requires preparation, planning, and an understanding of aseptic technique to work safely. -
Page 57: Loading Materials And Equipment
Loading Materials and Equipment 1. Only load the materials required for the procedure. Do not overload the cabinet. 2. Do not obstruct the front, side, or rear return air grilles. 3. Large objects should not be placed close together. 4. Slowly close the sash until it is in the correct operating position. 5. -
Page 58: Shutdown
Shutdown Lower the sash and turn off the light and cabinet blower. Activate the UV light, if installed. -
Page 59: 8: Maintaining Your Axiom Type C1
8: Maintaining Your Axiom Type C1 This section details normal maintenance required for optimal operation of the Axiom Type C1 biosafety cabinet. This section does not cover service operations beyond normal maintenance, nor does it cover annual airflow certification procedures. These advanced sections are found in the Axiom Type C1 Technical Manual. -
Page 60: Recommended Maintenance Schedule
Recommended Maintenance Schedule Table 8-1 Maintenance Frequency Activity Weekly Monthly Annually Disinfect interior surfaces (with • • • suitable chemical disinfectant) Wipe down interior surfaces after • • • contact time elapsed with 70% alcohol solution Clean sash glass and UV lamp with •... -
Page 61: Service Operations
Service Operations The operations in this section provide instructions to maintain the Axiom Type C1 for normal consumable replacement, and access to parts in accordance with the Recommended Maintenance Schedule. This section does not cover service operations beyond normal maintenance, nor does it cover annual airflow certification procedures. These advanced sections are found in the Axiom Type C1 Technical Manual. -
Page 62: Center Work Surface Removal
Center Work Surface Removal To hinge the center work surface open, reference Figures 7-1 and 8-2 for part identification and follow these steps. 1. Turn the cabinet blower on. 2. Lift either wing work surface approximately 2 inches (50 mm) by grasping the knobs at either front corner. -
Page 63: Wing Work Surface Removal
Wing Work Surface Removal Before beginning, the center work surface must be hinged open or removed as described previously. Reference Figures 7-1 and 8-2 for part identification and follow these steps. 1. If not already on, turn the cabinet blower on. 2. -
Page 64: Center Drip Tray Removal
Center Drip Tray Removal Before beginning, the center work surface must be hinged open or removed, and the wing work surfaces removed as described previously. Reference Figure 8-3 for parts identification. 1. If not already on, turn the cabinet blower on. 2. -
Page 65: Front Panel Removal
Front Panel Removal Removal of the front panel is only necessary to change the LED lamps. Tools Required: #2 Phillips Screwdriver It is recommended to utilize at least two (2) persons to remove the front panel, particularly for a 6-ft model. The front panel is heavy. Take care to use safe lifting practices, and to set the panel where it cannot fall over while uninstalled from the cabinet. -
Page 66: Changing The Led Lamps
Changing the LED Lamps Before proceeding, make sure all electrical power has been removed from the cabinet by disconnecting the main electrical connection, which is the power cord. This product uses only LED direct drive lighting. Do NOT install fluorescent bulbs. 1. - Page 67 Figure 8-7 Spring Clip (2 per end) Note Dead Band (on LED Lamp) Socket Caps (2) 4. Pull each LED Lamp straight toward you to release the lamp from the two Spring Clips holding it in place (Figure 8-7). Note the rotational position of the old LED lamps (there is a dead band stripe that will need to be oriented the same when reinstalling the new LED Lamps).
-
Page 68: Changing The Optional Uv Lamp
Changing the Optional UV Lamp The UV Lamp is an optional feature and may not be found on all models. THE UV LAMP IN THIS PRODUCT CONTAINS MERCURY Manage in accordance with local disposal laws. DO NOT place lamps in trash. Dispose as a hazardous waste. -
Page 69: Storage
Storage If the cabinet is to be left unused for more than one month, it should be prepared for storage. Follow the instructions below. The cabinet should not be stored in areas of excess humidity or temperature extremes. If the cabinet is moved during storage, it must be recertified before use. 1. -
Page 70: 9: Accessories
9: Accessories This section details the available field-installable accessories and approved modifications for your Axiom Type C1 biosafety cabinet. Telescoping Base Stands These stands are included with some product models, or available separately. The base stand catalog numbers are listed in Table 9-1 below. An optional caster wheel kit is available (catalog number 3730500). -
Page 71: Solo Tm Electric Hydraulic Lift Base Stands
SoLo Electric Hydraulic Lift Base Stands These base stands permit the cabinet to be lowered enough to transport it through a standard doorway as low as 84 inches (2133 mm). They offer infinitely adjustable height up to 33.5 inches (851 mm), providing a cabinet work surface height up to 36.0 inches (914 mm). -
Page 72: Airflow Sensor
Airflow Sensor The Airflow Sensor can be field installed on any size Axiom biosafety cabinet. The sensor monitors the average inflow air velocity at the front work opening of the biosafety cabinet, and provides the inflow velocity on the display, as shown in Figure 9-1. The catalog number is listed in Table 9-6. -
Page 73: Sash Prop
Sash Prop The sash prop magnetically fits into the sash track to ensure the sash remains open at the appropriate height for room balancing requirements. The catalog number is listed in Table 9-8. Table 9-8 Sash Height Catalog (in) Number 3620301 3620302 3620303... -
Page 74: 10: Troubleshooting
10: Troubleshooting This section details common troubleshooting for your biosafety cabinet. Blower and Lights not working... -
Page 75: Blower Only Will Not Start
Blower only will not start... -
Page 76: Lights Only Will Not Illuminate
Lights only will not illuminate... -
Page 77: Uv Light Will Not Illuminate
UV Light will not illuminate... -
Page 78: Airflow Alert Activating
Airflow Alert activating... -
Page 79: Filter Life Gauge Not At 100% When New
Filter Life Gauge not at 100% when new... -
Page 80: Contamination In The Work Area
Contamination in the work area... -
Page 81: Appendix A: Parts List
Appendix A: Parts List Table A-1 and Figure A-1 indicate the location and catalog numbers for the following service, and replacement accessory components. Table A-1 Quantity Item Required Catalog Number Description 3838501 Exhaust HEPA Filter 4 Foot Model 3838503 Exhaust HEPA Filter 6 Foot Model 3838401 Supply HEPA Filter 4 Foot Model 3838403... - Page 82 Figure A-1...
-
Page 83: Appendix B: Dimensions
Appendix B: Dimensions Table B-1 and Figure B-1 indicate the product dimensions. All dimensions shown in inches (centimeters). Table B-1 Width 8.0 (20.3) 17.1 48.5 54.3 22.5 (123.2) (137.9) (57.2) 10.0 (25.4) (43.4) 8.0 (20.3) 28.2 72.5 78.3 22.5 (184.2) (198.9) (57.2) (71.5) -
Page 84: Appendix C: Specifications
Appendix C: Specifications Power Data Table C-1 Normal Operating Catalog Number Power (Watts) 30448xxx1 340 W 30441xxx1 360 W 30468xxx1 440 W 30461xxx1 480 W 1 Values are for new product with clean filters, and may vary +/- 10% Motor Specifications Table C-2 Product Size Electrical Requirements... - Page 85 Environmental Conditions Indoor use only Ambient temperature range: 41° to 104°F (5° to 40°C) Maximum relative humidity: 80% for temperatures up to 88°F (31°C), decreasing linearly to 50% relative humidity at 104°F (40°C) Main supply voltage fluctuations not to exceed ±10% of the nominal voltage ...
- Page 86 2. Each motor must be programmed by Labconco for the appropriate width cabinet. 3. THIS PRODUCT USES DIRECT DRIVE T8 LED LAMPS INSTEAD OF FLUORESCENT LAMPS.
