5. Slide the Exhaust HEPA Filter straight out. If the Filter's gasket sticks to the
Exhaust Plenum, gently pull on the filter frame at one corner until the gasket
releases from the Exhaust Plenum.
Reinstallation Notes:
1. When reinstalling the Exhaust HEPA filter, verify the filter's gasket is facing
INWARD. Set the new filter in place against the Exhaust Plenum, and verify the
filter frame is even with the Exhaust Plenum (left-to-right).
2. Reinstall the Filter Frame and the six (6) Frame Bolts, then turn each bolt
clockwise, tightening the bolts gradually working in a pattern amongst all six bolts
until they are tight.
3. Replace the remaining components in reverse order.
EXHAUST HEPA FILTER
129

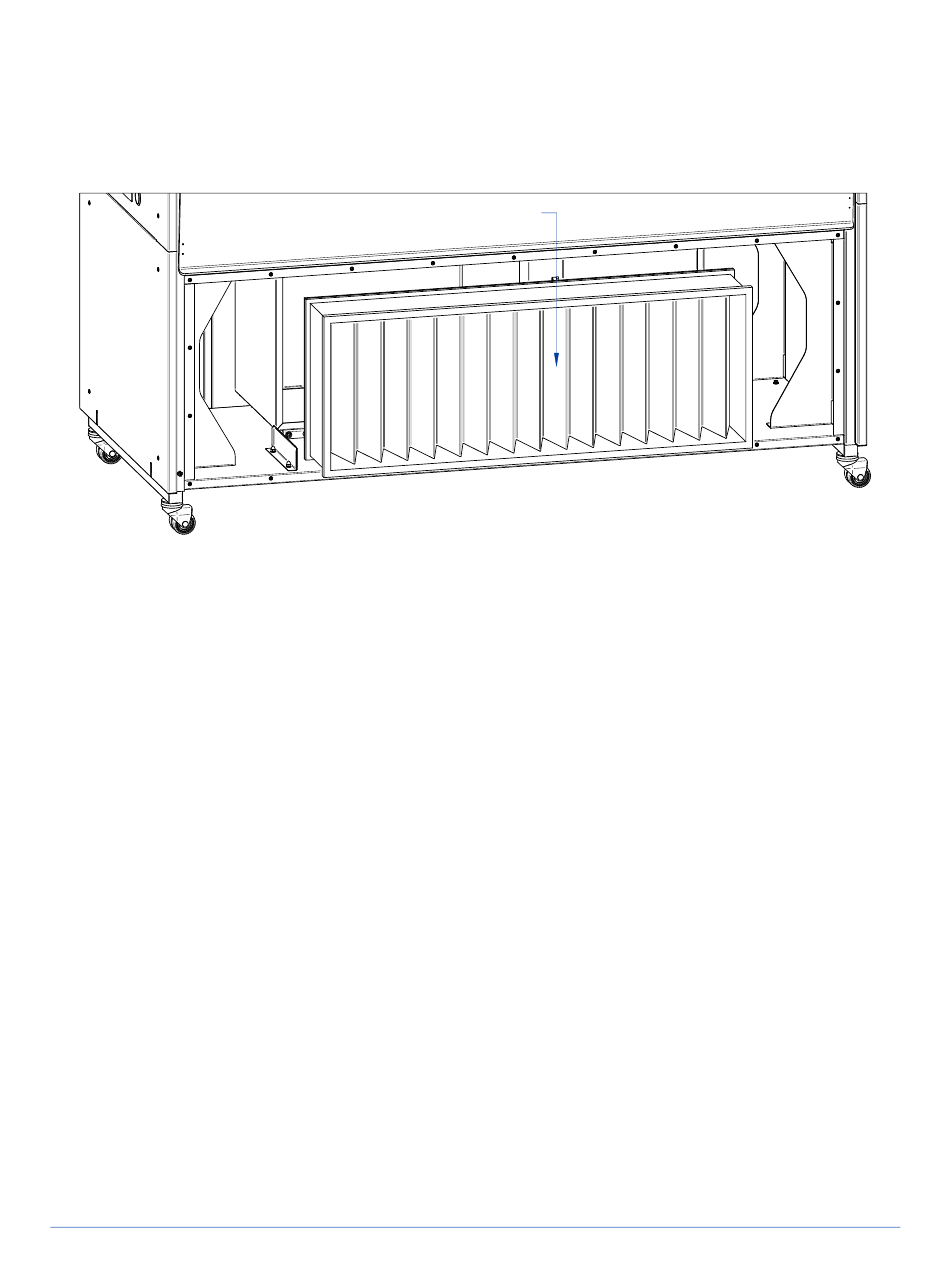

Figure 11-10
