Removal of External Dress Panels

Instructions to remove external dress panels are provided in this section. Subsequent
sections will reference these instructions. For example, when changing the Supply
HEPA filter, the Upper Front Panel needs to be removed.
Upper Panel Removal
Reference Figure 11-1. Remove the Plate Screws (16) and Cap Plates (8). Lift off the
Top Panel and Pre-Filter.
Remove the two (2) Top Screws on the far right and left end of the Upper Front Panel.
Remove the three (3) Front Screws on each end of the Upper Front Panel. Tilt the
Upper Front Panel away from the enclosure and lift the panel off. Repeat these
instructions for the Upper Rear Panel.
TOP PANEL
TOP
SCREWS
(2)
FRONT
SCREWS
(3)
CAP
PRE-FILTER
PLATES
(8)
121

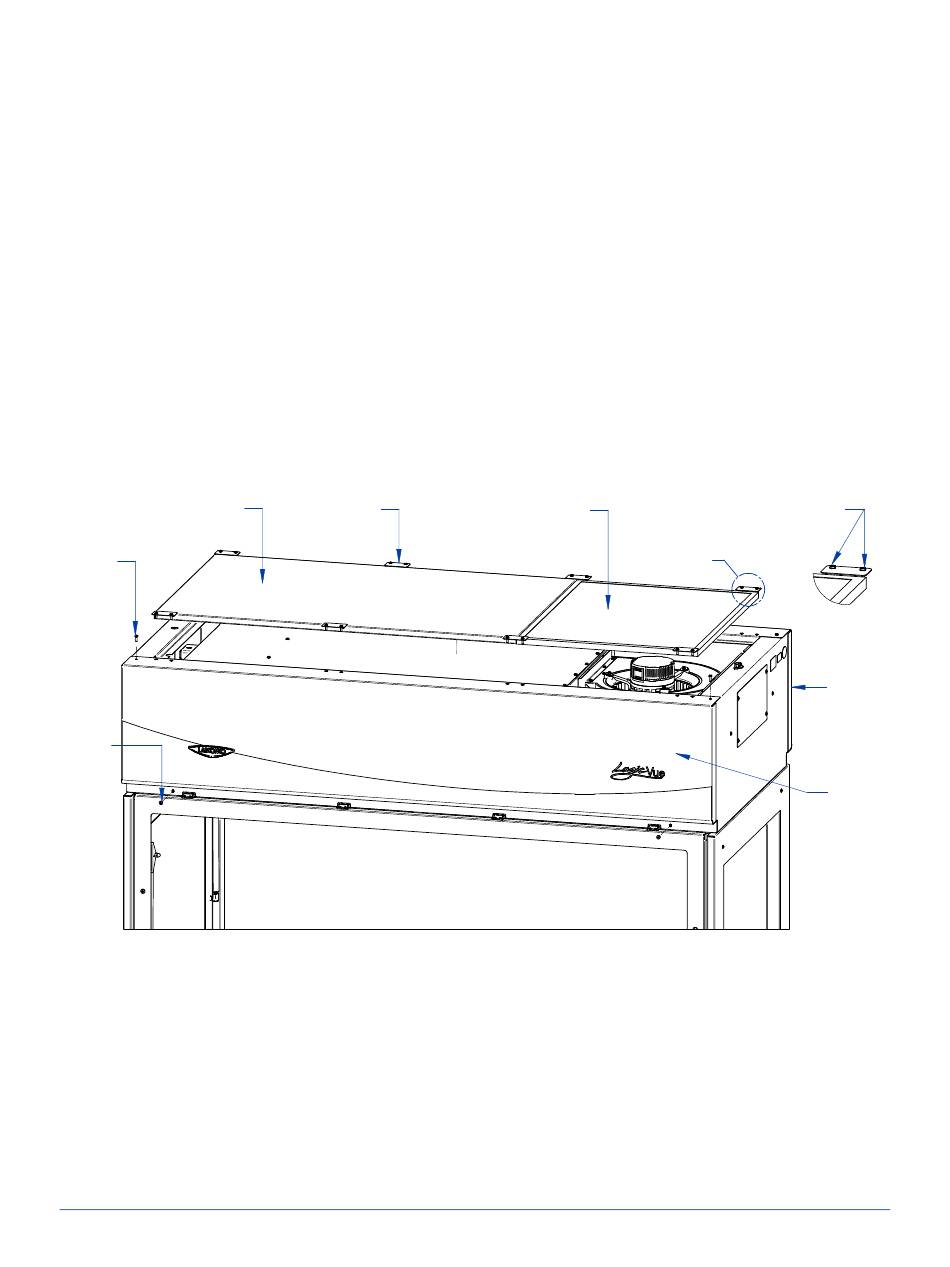

Figure 11-1
PLATE SCREWS
(16 TOTAL)
A
DETAIL A
UPPER REAR
PANEL
UPPER FRONT
PANEL
