Upper End Panel Removal

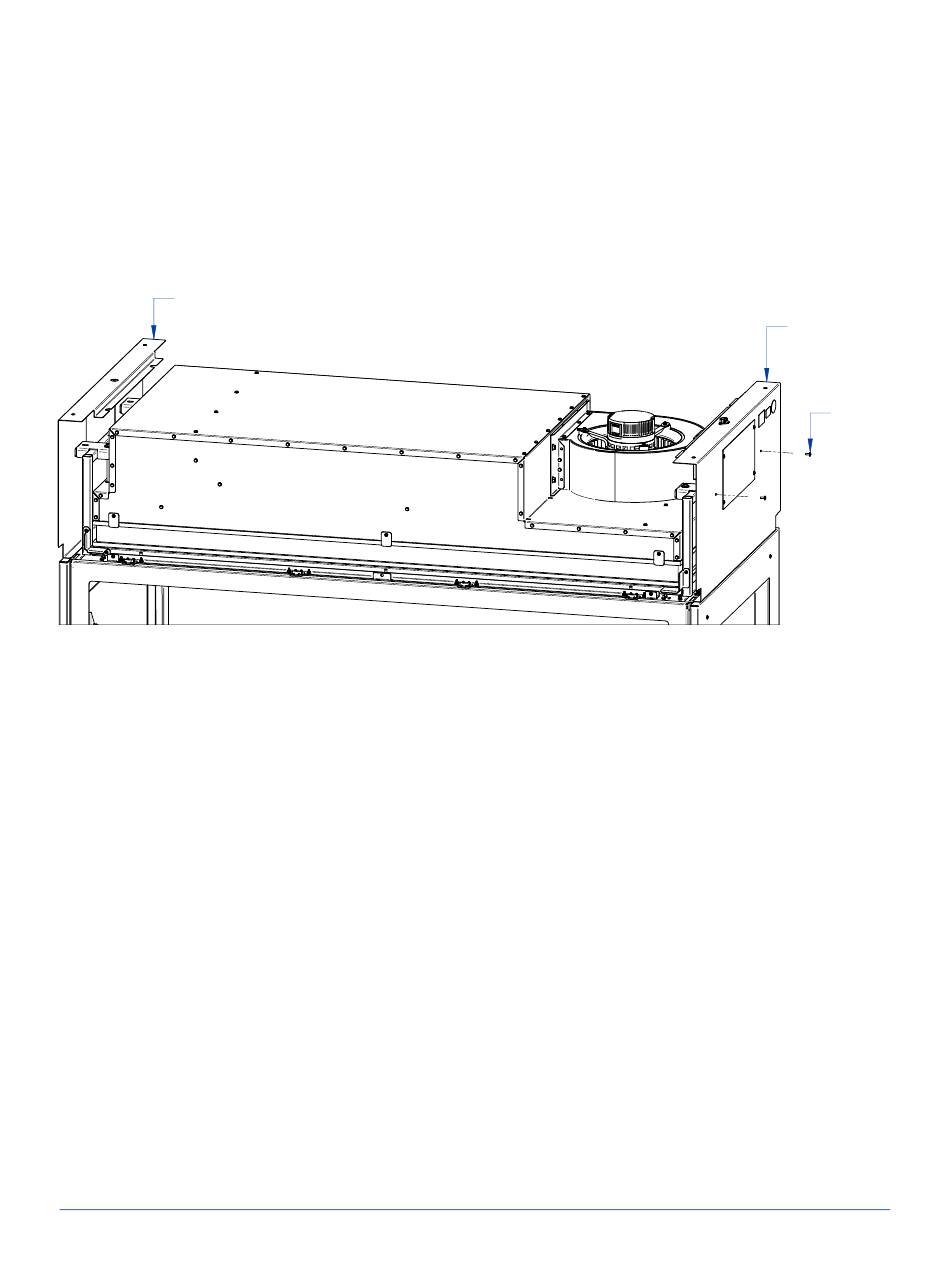

Reference Figure 11-2. Remove the two (2) Screws on each End Panel. Rotate the top
of each End Panel away from the enclosure, then lift each panel up to completely
remove.
END PANEL
122
Figure 11-2
END PANEL
SCREWS
(2 PER PANEL)
