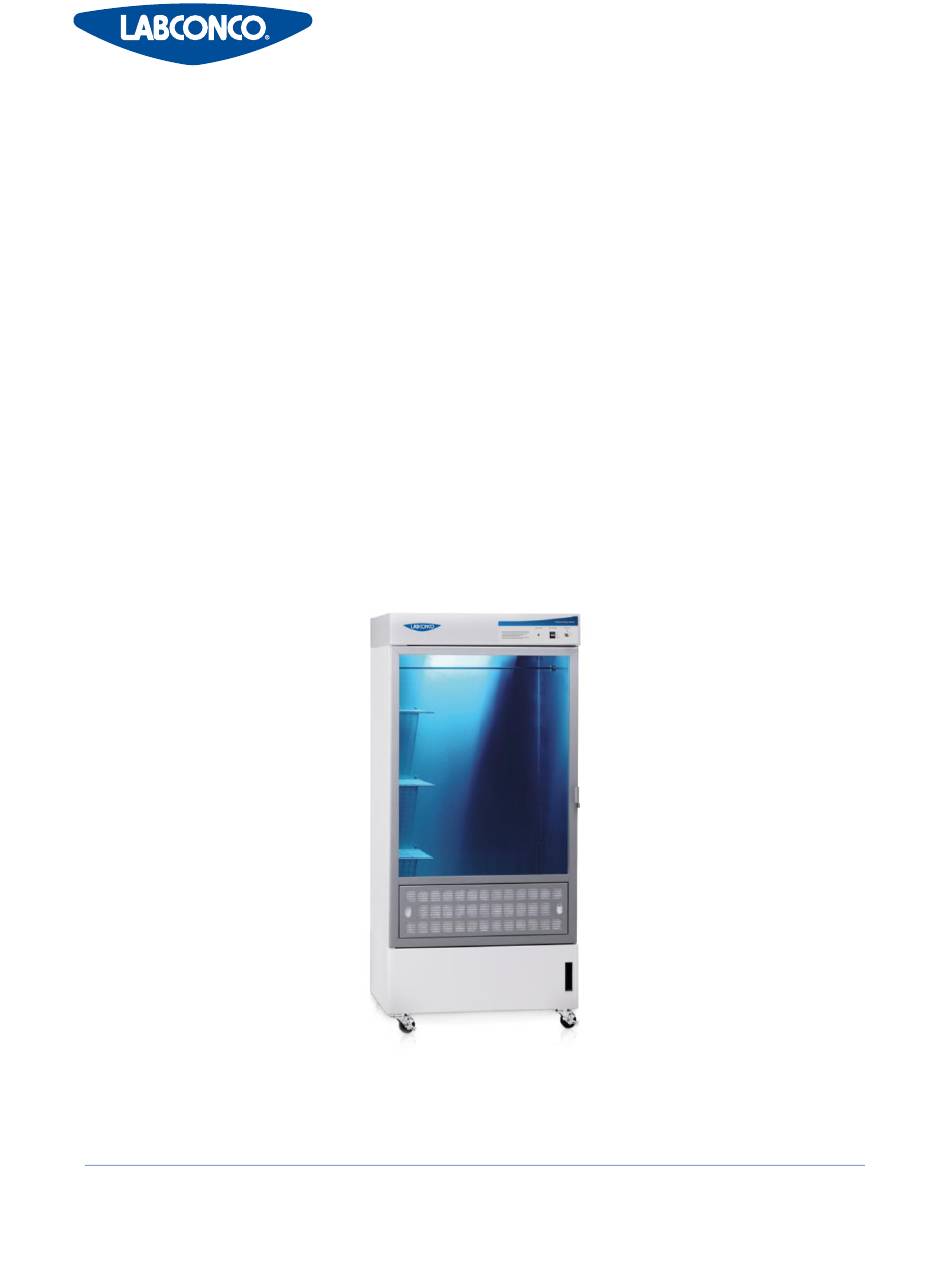

- Page 1 Please read user’s manual before operating equipment Original Instructions LABCONCO CORPORATION 8811 Prospect Avenue Kansas City, MO 64132 (800) 821-5525 I +1 (816) 333-8811 labconco.com User’s Manual Protector® Evidence Drying Cabinets Register this product...
- Page 2 ® Protector Evidence Drying Cabinets 2023—Present 34000xx Series 3’ 34040xx Series 4’ 34050xx Series 5’...
- Page 3 Warranty Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not warranted.
-
Page 4: Table Of Contents
Table of Contents 1: INTRODUCTION About This Manual Contents Included 2: BEFORE YOU INSTALL Location Requirements Clearance Requirements Electrical Requirements Exhaust Requirements Drain Requirements Water Requirements 3: SAFETY PRECAUTIONS Typographical Conventions General Safety Precautions Safety Precautions for this Product 4: INSTALLATION Step 1: Unpacking the EDC Step 2: Shipping Brace Removal &... - Page 5 Airflow Smoke Pattern Test UV Light and Interlock Tests Spray Gun and Drain Pump and Tests 5: PERFORMANCE FEATURES & SAFETY PRECAUTIONS Directional Airflow Optional Evidence Prefilters Prefilters HEPA Filters Blower Cabinet Air Intake and Exhaust Ultraviolet (UV) Lamp Safety Precautions 6: USING THE CABINET Fan/UV Light Switch UV Security Lock...
- Page 6 Start-up Wipe-Down Loading Evidence Unloading Evidence Wash-Down Shutdown 7: MAINTAINING THE CABINET Maintenance Safety Precautions Routine Maintenance Schedule Service Operations Door Evidence Prefilter Replacement Door Prefilter Replacement Cabinet Evidence Prefilter Replacement Cabinet Prefilter Replacement Changing the UV Lamp Resetting a Circuit Breaker Setting the Speed Control Adjusting the Filter Light Pressure Switch 8: TROUBLESHOOTING...
-
Page 7: 1: Introduction
1: Introduction Congratulations on the purchase of a Labconco Protector Evidence Drying Cabinet (EDC). The cabinet is designed to protect you, and the room environment from biohazardous aerosols and offensive odors while drying evidence. The Protector Series cabinet is the result of years of experience in manufacturing laboratory equipment, and users like you suggested many of its features to us. -
Page 8: Contents Included
Contents Included The following items are packaged with the product. • User’s Manual Thumb Drive • Product Registration Card • Power Cord • Drain Strainer Cup & Grid • Hex Key • Security Tags • UV Security Lock Key(s) (Model #s 34000-00 thru -04, 34040-00 thru -04 & 34050-00 thru -04 only) •... -
Page 9: 2: Before You Install
2: Before You Install Before you install the product, the site should be prepared for installation. Examine the location where you intend to install it. You must be certain that the area is level and of solid construction. In addition, a dedicated source of electrical power must be located near the installation site. -
Page 10: Electrical Requirements
Electrical Requirements The product models have the following electrical requirements. Typical Operating Current Catalog Number Electrical Circuit Requirements (Amps) 34000-00 & -10 115 VAC, 60 Hz, 6A 1 Phase 34040-00 & -10 115 VAC, 60 Hz, 6A 1 Phase 34050-00 & -10 115 VAC, 60 Hz, 6A 1 Phase 34000-01 thru -04 &... -
Page 11: Water Requirements
Water Requirements (Model # 34000-10 thru -14, 340404-10 thru -14 & 34050-10 thru -14 Only) If you intend to connect the water supply to wash down the cabinet, locate the cabinet within 6 feet (1.8m) of a domestic water line, equipped with a water shut off valve ending in a 3/4”... -
Page 12: 3: Safety Precautions
3: Safety Precautions Before unpacking, installing, operating, maintaining, or servicing this equipment, read the following safety warnings and precautions. Avant le déballage, l’installation, le fonctionnement, l’entretien ou la maintenance de cet équipement, lire les avertissements de sécurité et les précautions d’emploi. –... - Page 13 – Air or components that will be very hot. BURN RISK (HIGH TEMPERATURE) Take care not to touch these defined areas. Failure to avoid these areas may result in moderate to severe injury. – Air ambiant ou RISQUE DE BRÛLURE (TEMPÉRATURE ÉLEVÉE) composant devenant très chaud.
-
Page 14: General Safety Precautions
– Do not lift or move this equipment without assistance. LIFTING HAZARD – Ne pas soulever ou déplacer cet équipement sans DANGER DE LEVAGE assistance. – Magnets or magnetic field present. MAGNETIC FIELD IN USE – Présence d'aimants ou de champ CHAMP MAGNETIQUE UTILISE magnétique. -
Page 15: Safety Precautions For This Product
Never contact moving parts with your person. Failure to avoid moving parts will result in moderate to serious injury, death, or damage to property. Ne jamais toucher les parties mobiles. Le non-respect de la consigne consistant à éviter les pièces mobiles peut entraîner des blessures graves, la mort ou des dommages matériels. -
Page 16: 4: Installation
4: Installation With the installation site properly prepared, you are ready to unpack and install the Evidence Drying Cabinet (EDC). This section covers how to: • Unpack and move the cabinet. • Install the cabinet. • Connect the electrical supply source. Step 1: Unpacking the EDC The following tools are required to unpack and install the equipment: •... - Page 17 Note: United States Interstate Commerce Commission rules require that claims be filed with the delivery carrier within fifteen (15) days of delivery. Do not return goods without the prior authorization of Labconco. Unauthorized returns will not be accepted. If the product was damaged in transit, you must file a claim directly with the freight carrier.
-
Page 18: Step 2: Shipping Brace Removal & Door Installation
Step 2: Shipping Brace Removal & Door Installation 1. Remove door(s) from back of Cabinet (see Figure 4-1) and set aside. Figure 4-1 2. Remove shrink wrap & packaging on door(s). Set door(s) in a safe location. - Page 19 3. Remove the shipping braces from the front of the Cabinet. The braces are attached by 4 screws on each corner of the “x-shaped” brace, remove with a Philips screwdriver and retain these screws. This is shown in Figure 4-2. Note: If desired, the shipping braces may be removed after Step 11.
- Page 20 7. Open the lower compartment door to access the bolts and locknuts that secure the EDC to the shipping brackets. 8. Remove the bolts and locknuts with the 1/2” wrenches. Refer to Figure 4-3 for reference: Figure 4-3 9. Using two people, carefully tip one end of the drying cabinet & remove one shipping bracket.
- Page 21 NOTE: When moving the cabinet, DO NOT PUSH ON THE FRONT OR BACK OF THE UNIT. Move the cabinet by pushing or pulling it sideways. This will minimize the possibility of the unit overturning when in motion. 11. Remove the EDC from the pallet, using four people (one at each corner) to securely guide the cabinet.
- Page 22 13. Close the main door(s). If the door gasket is not touching the frame around the entire perimeter, reopen door and slightly loosen all 4 screws on the upper brackets. a. With the door opened 180°, slide the upper hinge in or out, then re-tighten the 2 outermost screws.
-
Page 23: Step 3: Attaching The Edc To The Wall
Step 3: Attaching the EDC to the Wall WARNING: The EDC must be secured to a wall stud, or other suitable wall structure, using the included strap(s) and bracket(s). This will minimize the possibility of the unit overturning when in use. 1. - Page 24 Figure 4-7 Secure bracket to wall stud. 79.0" (200 cm) from the floor to the top of the strap slot.
-
Page 25: Drain Options - Uv Lamp Models
Drain Options – UV Lamp Models (Model # 34000-00 thru -04, 34040-00 thru -04 & 34050-00 thru -04 only) NOTE: These models can either drain to a bucket, already located in the lower storage area, or the bucket can be removed, and an optional Drain Kit (#3928200) can be installed. -
Page 26: Drain Options - Wash Down Models
Drain Options - Wash Down Models (Model # 34000-10 thru -14, 34040-10 thru -14 & 34050-10 thru -14 only) NOTE: This model is designed to have its drain hose routed to a nearby floor drain. To install the drain hose assembly: NOTE: The drain line should be routed to a floor or standpipe drain with an air gap only. -
Page 27: Preparing The Evidence Drying Cabinet For Operation
• Wall Mount Bracket & Screws If you did not receive one or more of the components listed for the cabinet, or if any of the components are damaged, contact Labconco Corporation immediately for further instructions. 3. Plug the power cord into the back of the cabinet, and then into an appropriate outlet. -
Page 28: Initial Operation
Turn the UV Security Keylock to the “OFF” position, and the UV light will turn off. If the UV light does not work as described, call Labconco’s Product Service Department at 1-800-522-7658 or 816- 333-8811. Spray Gun and Drain Pump and Tests (Model # 34000-10 thru -14, 34040-10 thru -14 &... -
Page 29: 5: Performance Features & Safety Precautions
5: Performance Features & Safety Precautions The Protector Evidence Drying Cabinet (EDC) operates using the following principles: • Directional airflow. • Prefiltration of large particulates by an inlet prefilter (in the door) and an exhaust prefilter (in the top of the liner). •... -
Page 30: Directional Airflow
Directional Airflow Directional airflow plays a critical role in EDC performance. Air is drawn into the inlet prefilter, located on the bottom of the door(s). The filtered air then flows upwards through the liner, passing over the evidence to be dried. Before leaving the liner, the air then passes through the exhaust prefilter, which is designed to protect the HEPA filter from large particulates and may be removed to examine it for the collection of evidence. -
Page 31: Optional Evidence Prefilters
99.99% efficient in removing particles 0.3 micron. The HEPA filter media is very fragile. DO NOT touch the media. If you think the media of a HEPA filter is damaged, DO NOT USE THE CABINET. Call Labconco’s Product Service Department at 1-800-522-7658 or 816-333-8811. -
Page 32: Blower
Note: HEPA Filters are only effective against particulate material. Gases will pass through the filter. Figure 5-2 Polyurethane seal Filter frame Between media pack and filter frame Filter media pack – A continuous sheet of filter media Blower The blower assembly pulls room air into the intake prefilter on the front of the door(s), through the liner and exhaust prefilter, and then forces it through the HEPA and granular activated carbon filter. -
Page 33: Safety Precautions
Note: UV irradiation is absorbed by the tempered safety glass of the door. Independent research has shown that the level of UV irradiation on the outside of the cabinet’s door is equal to background radiation levels. Note: The UV sensitivity of a target organism varies, depending on the UV output of the lamp, the genus and species of the organism, the medium the agent is suspended in, etc. - Page 34 The media of the filter is fragile and should not be touched. Avoid puncturing the HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the cabinet; contact Labconco at 800-821-5525 or 816-333-8811 for further information.
- Page 35 When surface disinfecting the cabinet: • Always wear appropriate personnel protective equipment. • NEVER use high pressure water to clean the liner; this practice could generate biohazardous aerosols. • NEVER spray disinfectants into the blower intake at the top of the liner; this may damage the blower.
-
Page 36: 6: Using The Cabinet
6: Using the Cabinet UV Lamp Models (Model # 34000-00 thru -04, 34040-00 thru -04 & 34050-00 thru -04 only) Fan/UV Light Switch The cabinet Fan/UV Light switch is located on the upper front of the cabinet, as shown in Figure 6-1. Turning the switch to the “Fan” position starts the blower, drawing air in through the cabinet. -
Page 37: Shelf Operation
NOTE: If the Filter System Light illuminates during use, finish the drying of the evidence in the cabinet, and then correct the problem before using the cabinet again. Figure 6-1 Shelf Operation The three drying shelves on the left side wall can be positioned horizontally to dry small pieces of evidence, or swung down, against the left side wall of the liner, if needed. -
Page 38: Drying In The Cabinet
Drying in the Cabinet Start-up • Turn off UV light and turn the UV Security switch to “OFF”. Remove the key and store it in a safe place. • Ensure the drain strainer is in place. • Turn the switch to “Fan”. •... -
Page 39: Wipe-Down
Wipe-Down • Wear a long-sleeved lab coat with knit cuffs and over-the-cuff rubber gloves. Use protective eyewear. Wear a protective mask if appropriate. • Wipe down the interior surfaces of the cabinet with 70% ethanol, or a suitable disinfectant, and allow to dry. •... -
Page 40: Wash Down Models
Wash Down Models (Model # 34000-10 thru -14, 34040-10 thru -14 & 34050-10 thru -14) Fan/Drain Pump Switch The cabinet Fan/Drain Pump switch is located on the upper front of the cabinet, as shown in Figure 6-1A. Turning the switch to the “Fan” position starts the blower, drawing air into through the cabinet. -
Page 41: Drying In The Cabinet
3. Slowly lower the shelf to a horizontal position, ensuring that the frame of the shelf engages the retaining clip on the back wall of the liner. The shelf is now ready to use. To fold the shelf down (vertical position): 3. -
Page 42: Unloading Evidence
• Slowly close the door(s) and use a padlock (not supplied) or secure it with a chain of custody seal. Unloading Evidence • Wear a long-sleeved lab coat with knit cuffs and over-the-cuff rubber gloves. Use protective eyewear. Wear a protective mask if appropriate. •... -
Page 43: 7: Maintaining The Cabinet
7: Maintaining the Cabinet This section details the maintenance required for optimal operation of the Evidence Drying Cabinet (EDC). Maintenance Safety Precautions The following tools and supplies are required to maintain the equipment: • #2 Phillips Screwdriver • 70% alcohol solution (or other approved surface disinfectant) •... -
Page 44: Routine Maintenance Schedule
The common service operations necessary to maintain the EDC for peak performance are listed below. Routine Maintenance Schedule Maintenance Frequency Activity Weekly Monthly Annually Disinfect interior surfaces (with suitable • • • chemical disinfectant). • • • Clean door and surface of UV lamp with appropriate glass cleaner. -
Page 45: Service Operations
Service Operations Door Evidence Prefilter Replacement: 1. Pull the prefilter frame(s) straight away from the door(s), as shown in Figure 7-1. 2. Wearing appropriate gloves and working on the inside surface of the prefilter frame(s), carefully pull out the Evidence prefilter(s). The Evidence prefilter(s) can now be examined for trace evidence or stored with the evidence in a sealed bag for future reference. -
Page 46: Cabinet Evidence Prefilter Replacement
Cabinet Evidence Prefilter Replacement 1. Open the cabinet’s glass door(s) and locate the cabinet prefilter frame on the upper right side of the liner. See Figure 7-2. 2. To access the prefilter, loosen the captive thumbscrew until it is released. The front of the prefilter frame will swing down. - Page 47 Granular Activated Carbon and HEPA Filter Replacement 1. Use an appropriate stepladder to gain access to the top of the EDC and release the two bungee cords securing the granular activated and carbon and HEPA filters, as shown in Figure 7-3. 2.
-
Page 48: Changing The Uv Lamp
Changing the UV Lamp (Model # 34000-00 thru -04, 34040-00 thru -04 & 34050-00 thru -04): NOTE: For optimum performance, the UV lamp should be changed on an annual basis. NOTE: The UV lamp and the work area of the cabinet must be thoroughly decontaminated before removing the lamp. -
Page 49: Resetting A Circuit Breaker
Resetting a Circuit Breaker To reset any of the circuit breakers located on the top rear of cabinet, depress the white button until it resets. Figure 7-4 Setting the Speed Control Adjustment of the speed control varies the volume of air drawn through the liner while the unit is operating. - Page 50 Figure 7-6 2. After removing the hole plug, locate the pressure switch dial which can be turned using the same flat head screwdriver. Refer to 7-7 for a visual. Figure 7-7 NOTE: Turning the dial clockwise will increase the threshold for the pressure light to turn on.
-
Page 51: 8: Troubleshooting
8: Troubleshooting Refer to the following table if the cabinet fails to operate properly. If the suggested corrective actions do not solve the problem, contact Labconco for additional assistance. UV Light is dim or flickering:... -
Page 52: Cabinet Blower And/Or Lights Will Not Turn On
Cabinet Blower and/or lights will not turn... -
Page 53: Uv Light Not Working
UV Light not working:... -
Page 54: Filter System Light Is On/Flickering
Filter System light is on/flickering: Pump Unit not coming on... -
Page 55: Appendix A: Parts List
Appendix A: Parts List Table A-1 indicates common parts that may need replacing. Table A-1 Quantity Cabinet Item Part No. Description (EA per unit) Size 3872600 Door Prefilter, 3FT package of 6 EA 3872601 Door Prefilter, 4FT package of 6 EA 3872602 Door Prefilter, 5FT package of 6 EA 3951802... -
Page 56: Appendix B: Dimensions
Appendix B: Dimensions Figure B-1 and Table B-1 indicate the product dimensions. All dimensions shown in inches. Figure B-1 28.0" (711mm) or 28.6" (726mm) Interior Dimensions: 56.0" (1422mm) Height x 26.5" (673mm) Deep x “C” Wide Lower Storage Dimensions: 12.4" (315mm) Height x 26.5" (673mm) Deep x “D” Wide Table B-1 Model Model... -
Page 57: Appendix C: Specifications
Appendix C: Specifications Power Data Table C-1 Model # Requirements Energy Use 34000 -00 , -10 115 VAC, 60 Hz, 6 Amps 100W 34000- 01 thru -04 & -11 thru -14 230 VAC, 50/60 Hz, 3 Amps 100W 34040 -00 , -10 115 VAC, 60 Hz, 6 Amps 100W 34040- 01 thru -04 &... -
Page 58: Appendix D: Accessories
Appendix D: Accessories Door Evidence Prefilters (3FT #3951802, 4FT #3951822, 5FT #3951832) Package of 10 each Door Evidence prefilters. Evidence prefilters are single use polyester prefilters to be examined and or retained for trace evidence. Precut to fit the door prefilter frame. 1 lb. (0.5kg). Cabinet Evidence Prefilters (#3951803) Package of 10 each Cabinet Evidence prefilters. - Page 59 Security Tags (#3902400) Package of 100 each tamper-evident, labeled tags. Tags irreversibly indicate if the cabinet door has been opened during the drying cycle. 1 lb. (0.5kg). Hanging Clips (#3869500) Package of 10 each hanging clips, that allow small articles to be hung from the cabinet’s hanger rod or shelf.
