Please read user's manual before
operating equipment
Original Instructions
LABCONCO CORPORATION
8811 Prospect Avenue
Kansas City, MO 64132
(800) 821-5525 I +1 (816) 333-8811
labconco.com
User's Manual
®

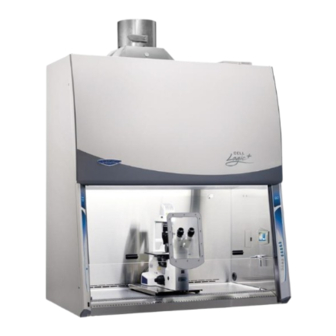

Cell Logic+
Type B2 Biosafety Cabinets
Register this product

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cell Logic+ B2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Labconco Cell Logic+ B2

Summary of Contents for Labconco Cell Logic+ B2

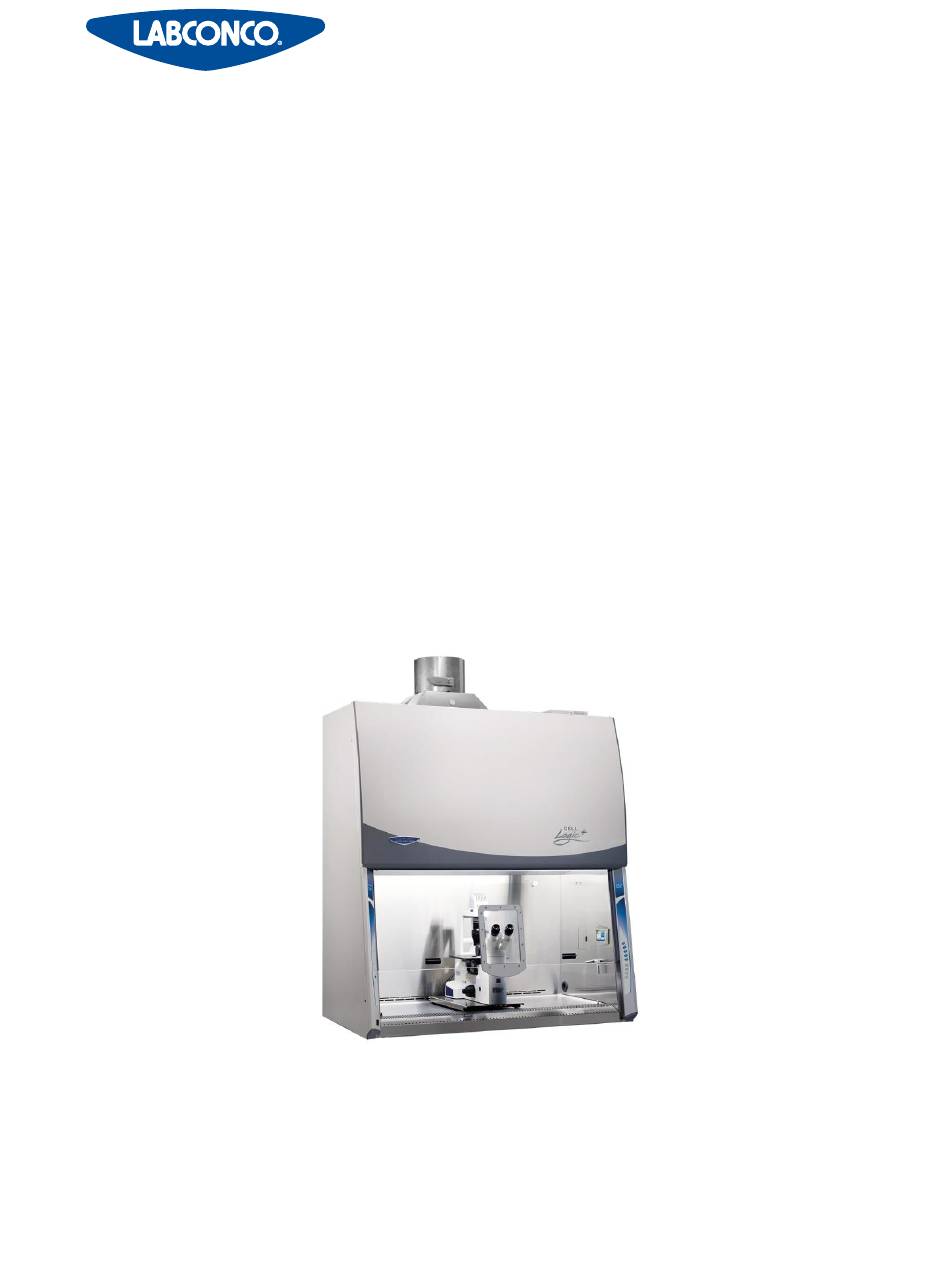

  • Page 1 Please read user’s manual before operating equipment Original Instructions LABCONCO CORPORATION 8811 Prospect Avenue Kansas City, MO 64132 (800) 821-5525 I +1 (816) 333-8811 labconco.com User’s Manual ® Cell Logic+ Type B2 Biosafety Cabinets Register this product...
  • Page 2 Cell Logic +® Type B2 Biosafety Cabinets 2019—Present 32348xxx1 33348xxx1 34348xxx1 32368xxx1 33368xxx1 34368xxx1...
  • Page 3 Warranty Labconco Corporation provides a warranty to the original buyer for the repair or replacement of parts and reasonable labor as a result of normal and proper use of the equipment with compatible chemicals. Broken glassware and maintenance items, such as filters, gaskets, light bulbs, finishes and lubrication are not warranted.

  • Page 4: Table Of Contents

    Table of Contents 1: INTRODUCTION About This Manual Contents Included 2: BEFORE YOU INSTALL Location Requirements Clearance Requirements Electrical Requirements Service Line Requirements Exhaust Requirements Air-Tight Damper User-Supplied Microscope Requirements – Scope-Ready Package Only User-Supplied Circulator Requirements – Temp-Zone Package Only 3: SAFETY PRECAUTIONS Typographical Conventions General Safety Precautions...
  • Page 5 Microscope Installation (optional) Circulator Installation (optional) Figure 4-9 Certification 5: PERFORMANCE FEATURES Laminar Airflow Directional Airflow Cabinet Air Intake (Front Grille) HEPA Filters ULPA Filters Motor/Blower Airflow Sensor UV Lamp (optional) Scope-Ready Package (optional) Pure-Vu™ Seal Stand-Still Isolation Platform Temp-Zone Package (optional) 6: MYLOGIC OPERATING SYSTEM...
  • Page 6 Navigating the Settings Submenu Selecting the Units of Measure Activating the Security Lock Setting the USB Output Rate UV Parameters The Tools Submenu Timer Operation Interval Timer Operation Stopwatch Timer Operation Airflow Alert Resetting the Airflow Alert System Alarms Power Loss Alarm Sash Height Alarm Blower Failure Alarm Exhaust Airflow Check...
  • Page 7 8: MAINTAINING YOUR CELL LOGIC+ TYPE B2 Maintenance Safety Precautions Recommended Maintenance Schedule Service Operations Resetting a Circuit Breaker Dished Work Surface Removal Front Grille Removal Front Panel Removal Changing the LED Lamps Changing the Optional UV Lamp Storage 9: ACCESSORIES Telescoping Base Stands Manual or Electric Hydraulic Lift Base Stands IV Bar...
  • Page 8 APPENDIX B: DIMENSIONS APPENDIX C: SPECIFICATIONS Power Data Motor Specifications Environmental Conditions APPENDIX D: QUICK CHART REFERENCE APPENDIX E: INSTALLATION GUIDE: PURE-VU SEALS AND STAND-STILL ISOLATION PLATFORMS PURE-VU TEMPLATE...

  • Page 9: 1: Introduction

    This manual is written for the installer and user of this product. For detailed service, certification, or technical information, please utilize the Technical Manual located on the website labconco.com. This manual contains important operation and safety information. When you see a symbol, such as the INFO symbol to the left, pay close attention to the information provided.

  • Page 10: 2: Before You Install

    2: Before You Install Before you install the product, the site should be prepared for installation. Examine the location where you intend to install it. You must be certain that the area is level and of solid construction. In addition, a dedicated source of electrical power must be located within 10 feet (3 m) of the installation site.

  • Page 11: Clearance Requirements

    On 100V and 115V models, both internal electrical outlets are protected by a ground fault interrupter circuit (GFIC). Labconco does NOT recommend connecting the product’s power cord into a GFIC outlet. GFIC outlets can nuisance trip, resulting in complete removal of power to the product.

  • Page 12: Exhaust Requirements

    Note: The use of air or gases under high pressure should be avoided as they may seriously disrupt the airflow patterns in the cabinet. Exhaust Requirements This product must be connected to a remote (building) exhaust system. Note: Only connect the biosafety cabinet to a suitable exhaust system that is dedicated to the biosafety cabinet, or dedicated to exhausting laboratory ventilation equipment.
  • Page 13 (or reduce speed). For further information, contact Labconco’s Product Service Department or refer to the Logic+ Technical Manual. A remote electrical switch to control the facility’s remote blower can also be installed near the biosafety cabinet for manual control of the remote blower.

  • Page 14: Air-Tight Damper

    Air-Tight Damper The exhaust housing on a Type B2 biosafety cabinet is sealed to the top of the biosafety cabinet. All of the biosafety cabinet’s airflow is exhausted through the exhaust housing by the facility’s remote blower. The Cell Logic+ Type B2 biosafety cabinet includes an air-tight damper as an integral part of the exhaust housing.

  • Page 15: User-Supplied Circulator Requirements - Temp-Zone

    On models with the Scope-Ready package, the Cell Logic+ Biosafety Cabinet includes a clear, disposable Pure-Vu™ Seal that can be altered to accommodate most microscope’s eyepieces. Utilize the Punch Kit (Catalog Number 4027801), supplied with your cabinet, to cut the two eyepiece holes at approximately 2.75" (69.9 mm) spacing to match the height of your scope.

  • Page 16: 3: Safety Precautions

    3: Safety Precautions Before unpacking, installing, operating, maintaining, or servicing this equipment, read the following safety warnings and precautions. Avant le déballage, l’installation, le fonctionnement, l’entretien ou la maintenance de cet équipement, lire les avertissements de sécurité et les précautions d’emploi. –...
  • Page 17 – Air or components that will be very hot. BURN RISK (HIGH TEMPERATURE) Take care not to touch these defined areas. Failure to avoid these areas may result in moderate to severe injury. – Air ambiant ou RISQUE DE BRÛLURE (TEMPÉRATURE ÉLEVÉE) composant devenant très chaud.

  • Page 18: General Safety Precautions

    – Do not lift or move this equipment without assistance. LIFTING HAZARD – Ne pas soulever ou déplacer cet équipement sans DANGER DE LEVAGE assistance. – Magnets or magnetic field present. MAGNETIC FIELD IN USE – Présence d'aimants ou de champ CHAMP MAGNETIQUE UTILISE magnétique.
  • Page 19 Never contact moving parts with your person. Failure to avoid moving parts will result in moderate to serious injury, death, or damage to property. Ne jamais toucher les parties mobiles. Le non-respect de la consigne consistant à éviter les pièces mobiles peut entraîner des blessures graves, la mort ou des dommages matériels.

  • Page 20: Safety Precautions For This Product

    If your application requires loading more than 50 lbs., contact Labconco’s Product Service Department at 800-821-5525 or 816-333-8811 for assistance.
  • Page 21 HEPA filter during installation or normal operation. If you suspect that a HEPA filter has been damaged, DO NOT use the cabinet; contact a local certification agency or Labconco at 800-821-5525 or 816-333-8811 for re- certification information. The HEPA filters in the biosafety cabinet will gradually accumulate airborne particulate matter from the room and from work performed in the cabinet.

  • Page 22: 4: Installation

    4: Installation With the installation site properly prepared, you are ready to unpack and install the equipment. This section covers how to: • Unpack and move the product • Install the product • Connect electrical service • Connect service utilities •...
  • Page 23 Note: United States Interstate Commerce Commission rules require that claims be filed with the delivery carrier within fifteen (15) days of delivery. Do not return goods without the prior authorization of Labconco. Unauthorized returns will not be accepted. If the product was damaged in transit, you must file a claim directly with the freight carrier.
  • Page 24 Note: The cabinet is very top heavy. Use caution when lifting or moving it. Labconco offers accessory base stands in a variety of configurations to suit your particular needs. If assembly of the base stand is required, the assembly instructions are packaged with the base stand.
  • Page 25 Figure 4-2 Side panel Visual appearance of biosafety cabinet and exhaust connection Attachment may vary by model. bolts Mounting (Supplied with stand) DETAIL A Stand rail Installation Instructions...
  • Page 26 Step 3 The front sash will not slide open yet. The sash counterweights are pinned for shipment. The Side Panels must still be removed or hinged open for this step. Locate the Support Pin and Clevis Pin on each sash counterweight. See Figure 4-3. For convenience a yellow tag and string are provided.

  • Page 27: Electrical Connection

    Electrical Connection The product’s power cord is located in the Parts Box removed in the final step of Unpacking (previous section). Connect the IEC end of the power cord to the IEC connector located on the rear side of the top electrical box. See Figure 4-4. Connect the plug end of the power cord into an appropriately rated outlet (see Electrical Requirements in Section 2: Before You...

  • Page 28: Service Line Connection

    Safe for use with vacuum, air, carbon dioxide, nitrogen, and argon. Not for use with water, steam or high purity gasses like oxygen and hydrogen. Contact Labconco for additional valve options.

  • Page 29: Drain Valve Installation (Optional)

    Drain Valve Installation (Optional) A drain valve assembly is provided in the Parts Box. The drain allows for removal of large amounts of liquid trapped in the area underneath the work surface. The installation of the drain valve is not required. If not installing the drain valve, this section may be skipped.

  • Page 30: Exhaust Connection

    INSUFFICIENT EXHAUST AIRFLOW. If your research involves the use of toxic compounds or volatile materials, contact your facility’s safety officer or Labconco to ensure that your Cell Logic+ and its exhaust system are compatible with the materials you will be working with.

  • Page 31: Microscope Installation (Optional)

    Punch Kit (Catalog Number 4027801) supplied with your cabinet. For your convenience, pre-cut accessory Pure-Vu Seals can be found at labconco.com, and may be an easier installation. 5. If punching the 0.5" (12.7 mm) diameter holes, with the microscope eyepieces removed line up the centerline of the eyepiece base with the seal.
  • Page 32 Figure 4-8...

  • Page 33: Circulator Installation (Optional)

    2. Find a suitable place next to the cabinet or underneath the cabinet to place the circulator. Accessory shelves for small circulators are available from labconco.com. Larger circulators should be placed on the floor. 3. Pivot the work surface up and use the Easy-Clean Prop Rods to support the work surface.

  • Page 34: Figure

    condensation occur under the work surface. Simply snap in the supplied press-fit elbow to the drain valve shown in Figure 4-9. Follow the diagram to finish the installation. Figure 4-9 Quick-Connect Elbow Fitting Prop Press-fit Elbow Drain Valve Optional Drain Line Temp-Zone Circulator Tubing Circulator...

  • Page 35: Certification

    If you have any questions regarding certification agencies or help locating one, contact Labconco’s Product Service Department at (800) 821-5525 or +1 816-333-8811. Detailed information for product certification is located in the Logic+ Technical Manual.

  • Page 36: 5: Performance Features

    5: Performance Features The Cell Logic+ Type B2 biosafety cabinet protects items placed on the work surface, the personnel working with material inside the cabinet, and the lab environment, when operated to manufacturer’s specifications and proper aseptic techniques are employed. This protection is provided through the use of laminar airflow, HEPA filtration, careful cabinet construction, and Constant Airflow Profile (CAP) ECM motors.

  • Page 37: Directional Airflow

    Directional Airflow Directional airflow also plays a key role in cabinet performance. Air is drawn into the front of the cabinet at the front grille. This “curtain” of air makes it more difficult for aerosols to escape out of the cabinet’s work area and into the laboratory environment. This airflow is often calculated and referred to as the Inflow Volume or Average Inflow Velocity.

  • Page 38: Hepa Filters

    HEPA Filters HEPA filters are disposable, dry-type particulate filters. The filter material or media is typically made of borosilicate microfibers formed into a thin sheet, in a process similar to the production of paper. This sheet is folded, or pleated to increase its surface area. The pleats are typically held in place by beads of glue that add rigidity to the media pack.

  • Page 39: Motor/Blower

    The motor utilizes Labconco’s exclusive Constant Airflow Profile (CAP) program to deliver a consistent volume of air, throughout the life of the cabinet.

  • Page 40: Uv Lamp (Optional)

    UV Lamp (optional) The optional UV lamp generates a primary wavelength of light of 254nm. A secondary emission is in the visible (blue) wavelength, resulting in the characteristic blue color while operating. UV light at this wavelength is biocidal, primarily by creating thymine dimers in DNA.

  • Page 41: Stand-Still Tm Isolation Platform

    Stand-Still Isolation Platform The Stand-Still Isolation Platform supports the microscope on the cabinet’s work surface and removes up to 94% of vertical and horizontal vibrations. ASHRAE 110 and NSF 49 testing confirms this unique elevated, aerodynamic base ensures safe airflow. Constructed of seamless Type 304 stainless steel, the isolation platform is non-porous, easy to clean, and autoclavable.

  • Page 42: 6: Mylogic Operating System

    6: MyLogic Operating System The Cell Logic+ Type B2 biosafety cabinet features the MyLogic operating system, which provides clear status information on the LCD display and user control with the keypad (Figures 6-1 & 6-3). Read this section along with Section 7: Using Your Cell Logic+ Type B2 to fully understand the features and controls of this product.

  • Page 43: Display Sleep Mode

    Display Sleep Mode The LCD display will enter sleep mode when the blower is off (Figure 6-2). If the blower is not turned on, and no keys are pressed on the keypad, after 5 minutes the screen will automatically turn off to relax the LCD display, which extends its life. When the display transitions from sleep mode to off, the screen will appear black.

  • Page 44: Main Menu

    Main Menu Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. To access the Main Menu from the Home Screen, press [MENU] on the keypad. See Figure 6-4. The display will change to the Main Menu. To return to the Home Screen, press [MENU].

  • Page 45: Configuration Submenu

    Configuration Submenu Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. Figure 6-6 This submenu allows you to set preferences for audible tones, set the language, set the clock, and configure how the unit operates when the sash is opened or closed (SmartStart Audible Tone Language...

  • Page 46: Setting The Clock

    Setting the Clock Figure 6-9 Select either 12 Hour (AM/PM) format or 24 Hour format. [OK/MUTE] Figure 6-10 The selected field (Hours Minutes) flashes, set the current time using [UP] and [DOWN]. Hours will flash first, once correct, use [OK/MUTE] to switch to Minutes.

  • Page 47: Setting Automatic Operation Options

    Setting Automatic Operation Options (SmartStart The cabinet allows configuration to activate functions automatically when the sash is opened or closed. The following screens will display sequentially with [OK/Mute]. Figure 6-11 The first screen provides the option of activating the blower; if you want the cabinet blower to start every time you raise the sash, select Blower On, and then...

  • Page 48: Navigating The Settings Submenu

    Navigating the Settings Submenu Keypad button presses are shown as [BLUE WITH BRACKETS]. Menu screen selections are shown as green italics. Figure 6-15 This submenu allows you to select: Units of Measure, System Lock, Data Output, or Parameters. Units of Measure System Lock Data Output UV Parameters...

  • Page 49: Uv Parameters

    UV Parameters For models equipped with the optional UV light, the cabinet has an integral UV light maintenance system. It allows you to monitor how many hours the lamp has been on, to reset the UV lamp hourmeter, and to define how many hours you want the UV lamp to operate before receiving a reminder to replace it.

  • Page 50: Timer Operation

    Timer Operation The timer allows activation of an interval (countdown) or elapsed (stopwatch) timer. The timers cannot be operated simultaneously. To access the Timer Menu, press [Timer] anytime during normal operation (from the Home Screen). The Timer Menu is displayed (Figure 6-21). Select Interval Stopwatch Timer, then [OK/MUTE].

  • Page 51: Airflow Alert

    Airflow Alert While the blower is on, any sudden disruption to the airflow within the cabinet will trigger an Airflow Alert. When an Airflow Alert activates, the display will automatically change (Figure 6-22), and the audible alert tone will sound. Figure 6-22 The most common causes of an Airflow Alert are: •...

  • Page 52: Alarms

    Alarms Any alarm that activates requires the user’s immediate attention, and some form of actionable response to clear the alarm. Figure 6-23 Power Loss Alarm The cabinet has lost power. See Figure 6-23 Press [OK] on the keypad to acknowledge that a power loss occurred.

  • Page 53: Exhaust Airflow Check

    Exhaust Airflow Check Figure 6-26 is pressed to turn on the cabinet’s When [BLOWER] internal blower, If there is insufficient exhaust system airflow for a proper startup, this alarm will be displayed for 60 seconds to allow the exhaust EXHAUST FAILURE DETECTED system to begin operation.

  • Page 54: 7: Using Your Cell Logic+ Type B2

    7: Using Your Cell Logic+ Type B2 This section details the functional features and proper techniques for safely and efficiently using the Cell Logic+ Type B2 biosafety cabinet. Feature Overview Figure 7-1 illustrates key features and components of the product. Figure 7-1 Reset Switch Exhaust Housing...

  • Page 55: System Reset Switch

    System Reset Switch The system reset switch removes power from the control board and microprocessor. It is located on the front side of the electrical box on the top, right side of the product. See Figure 7-2. This switch will NOT remove all electrical power from the product. For service operations, always disconnect the main electrical connection prior to removing service panels.

  • Page 56: Keypad

    Keypad The keypad of the cabinet is shown in Figure 7-3. Take a moment to familiarize yourself with the buttons, their locations and functions. Also familiarize yourself with the display located on the right side wall. The display will report system functions, such as filter capacity, timer displays, alarm or error messages, as well as icons that illuminate when cabinet functions such as the light and blower are operational.

  • Page 57: Sash Operation

    Sash Operation The counterbalanced, anti-racking sash mechanism requires only a few pounds of force to move the sash up or down. You can open or close the sash smoothly with one or two hands positioned on either handle. The sash position alarm and safety interlock system senses the sash position and acts appropriately.

  • Page 58: Vacu-Pass Tm Cord & Cable Pass Thru (Optional)

    Vacu-Pass Cord & Cable Pass Thru (optional) The Vacu-Pass allows for passage of a cord, cable, or tube from within the product. The pass thru provides a sealed plug, and the plug housing is maintained under negative pressure to safely pass cords through the right side wall of the product. Not all models are configured with a Vacu-Pass port, if your model does not contain this option, this section may be skipped.

  • Page 59: Working In The Cabinet

    Working in the Cabinet Working in the Cell Logic+ Type B2 biosafety cabinet requires preparation, planning, and an understanding of aseptic technique to work safely. The steps below represent the minimum requirements before, during, and after working in a biosafety cabinet. Consult your Health &...

  • Page 60: Loading Materials And Equipment

    Loading Materials and Equipment 1. Only load the materials required for the procedure. Do not overload the cabinet. 2. Do not obstruct the front, side, or rear return air grilles. 3. Large objects should not be placed close together. 4. Slowly close the sash until it is in the correct operating position. 5.

  • Page 61: Shutdown

    Shutdown • Lower the sash and turn off the light and cabinet blower. Activate the UV light, if installed.

  • Page 62: 8: Maintaining Your Cell Logic+ Type B2

    8: Maintaining Your Cell Logic+ Type B2 This section details normal maintenance required for optimal operation of the Cell Logic+ Type B2 biosafety cabinet. This section does not cover service operations beyond normal maintenance, nor does it cover annual airflow certification procedures. These advanced sections are found in the Logic+ Technical Manual.

  • Page 63: Recommended Maintenance Schedule

    Recommended Maintenance Schedule Table 8-1 Maintenance Frequency Activity Weekly Monthly Annually Disinfect interior surfaces (with • • • suitable chemical disinfectant) Wipe down interior surfaces after • • • contact time elapsed with 70% alcohol solution Clean sash glass and UV lamp with •...

  • Page 64: Service Operations

    Service Operations The operations in this section provide instructions to maintain the Cell Logic+ Type B2 for normal consumable replacement, and access to parts in accordance with the Recommended Maintenance Schedule. This section does not cover service operations beyond normal maintenance, nor does it cover annual airflow certification procedures. These advanced sections are found in the Logic+ Technical Manual.

  • Page 65: Dished Work Surface Removal

    Dished Work Surface Removal To lift or remove the dished work surface, reference Figure 7-1 for part identification and follow these steps. 1. Turn the cabinet blower on. 2. Lift the front edge of the work surface up by grasping the knob at either front corner.

  • Page 66: Front Panel Removal

    Front Panel Removal Removal of the front panel is only necessary to change the LED lamps. Tools Required: • #2 Phillips Screwdriver It is recommended to utilize at least two (2) persons to remove the front panel, particularly for a 6-ft model. The front panel is heavy. Take care to use safe lifting practices, and to set the panel where it cannot fall over while uninstalled from the cabinet.

  • Page 67: Changing The Led Lamps

    Changing the LED Lamps Before proceeding, make sure all electrical power has been removed from the cabinet by disconnecting the main electrical connection, which is the power cord. This product uses only LED direct drive lighting. Do NOT install fluorescent bulbs. 1.
  • Page 68 Figure 8-7 Spring Clip (2 per end) Note Dead Band (on LED Lamp) Socket Caps (2) 4. Pull each LED Lamp straight toward you to release the lamp from the two Spring Clips holding it in place (Figure 8-7). Note the rotational position of the old LED lamps (there is a dead band stripe that will need to be oriented the same when reinstalling the new LED Lamps).

  • Page 69: Changing The Optional Uv Lamp

    Changing the Optional UV Lamp The UV Lamp is an optional feature and may not be found on all models. THE UV LAMP IN THIS PRODUCT CONTAINS MERCURY Manage in accordance with local disposal laws. DO NOT place lamps in trash. Dispose as a hazardous waste.

  • Page 70: Storage

    Storage If the cabinet is to be left unused for more than one month, it should be prepared for storage. Follow the instructions below. The cabinet should not be stored in areas of excess humidity or temperature extremes. If the cabinet is moved during storage, it must be recertified before use. 1.

  • Page 71: 9: Accessories

    9: Accessories This section details the available field-installable accessories and approved modifications for your Cell Logic+ Type B2 biosafety cabinet. Telescoping Base Stands These stands are included with some product models, or available separately. The base stand catalog numbers are listed in Table 9-1 below. An optional caster wheel kit is available (catalog number 3730500).

  • Page 72: Iv Bar

    IV Bar The IV Bar can be field installed on any size Cell Logic+ B2 biosafety cabinet. The bar allows for easy hanging of IV bags used inside the biosafety cabinet. Catalog numbers are listed in Table 9-4 below. Table 9-4...

  • Page 73: 10: Troubleshooting

    10: Troubleshooting This section details common troubleshooting for your biosafety cabinet. Blower and Lights not working...

  • Page 74: Blower Only Will Not Start

    Blower only will not start...

  • Page 75: Lights Only Will Not Illuminate

    Lights only will not illuminate...

  • Page 76: Uv Light Will Not Illuminate

    UV Light will not illuminate...

  • Page 77: Airflow Alert Activating

    Airflow Alert activating...

  • Page 78: Filter Life Gauge Not At 100% When New

    Filter Life Gauge not at 100% when new...

  • Page 79: Contamination In The Work Area

    Contamination in the work area...

  • Page 80: Exhaust Alarm Activates 60 Seconds After Turning The Blower On

    Exhaust Alarm activates 60 seconds after turning the blower on...

  • Page 81: Appendix A: Parts List

    Appendix A: Parts List Table A-1 and Figure A-1 indicate the location and catalog numbers for the following service, and replacement accessory components. Table A-1 Quantity Item Catalog Number Description Required 3850500 Prefilter for 4 Foot B2 Model 3850501 Prefilter for 6 Foot B2 Model 3438501 Exhaust HEPA Filter 4 Foot B2 Model 3438503...
  • Page 82 Figure A-1...

  • Page 83: Appendix B: Dimensions

    Appendix B: Dimensions Table B-1 and Figure B-1 indicate the product dimensions. All dimensions shown in inches (centimeters). Table B-1 Width 48.5 54.3 17.2 22.5 (123.2) (137.9) (43.7) (57.2) 72.5 78.3 28.2 22.5 (184.2) (198.9) (71.6) (57.2) Figure B-1 Power Cord Inlet 10.1 I.D.

  • Page 84: Appendix C: Specifications

    Appendix C: Specifications Power Data Table C-1 Normal Operating Power Width Catalog Number (Watts) 3x349xx01, 21 210 W 4’ 3x349xx11, 31, 41, 51, 61, 71 210 W 3x369xx01, 21 285 W 6’ 3x369xx11, 31, 41, 51, 61, 71 285 W 1 Values are for new product with clean filters (light and blower on), and may vary +/- 10% Motor Specifications Table C-2...

  • Page 85: Environmental Conditions

    Environmental Conditions • Indoor use only • Ambient temperature range: 41° to 104°F (5° to 40°C) • Maximum relative humidity: 80% for temperatures up to 88°F (31°C), decreasing linearly to 50% relative humidity at 104°F (40°C) • Main supply voltage fluctuations not to exceed ±10% of the nominal voltage •...

  • Page 86: Appendix D: Quick Chart Reference

    2. These values equal the Concurrent Balance Values (CVB) published by National Sanitation Foundation International (NSF International). 3. Each motor must be programmed by Labconco for the appropriate width cabinet. 4. THIS PRODUCT USES DIRECT DRIVE T8 LED LAMPS INSTEAD OF FLUORESCENT LAMPS. THERE IS NO BALLAST; LINE VOLTAGE IS SUPPLIED TO THE LAMP SOCKETS.

  • Page 87: Appendix E: Installation Guide: Pure-Vu Seals And Stand-Still Isolation Platforms

    Appendix E: Installation Guide: Pure-Vu Seals and Stand-Still Isolation Platforms For proper installation of the Pure-Vu Seal and Stand-Still Isolation Platforms on the Cell Logic+ biosafety cabinet with Scope-Ready Package, reference the following figures and instructions. Figure E-1 also shows the proper placement of the Stand-Still Isolation Platform. Figure E-1...
  • Page 88 Figure E-2 is an aid to show the Pure-Vu Seal fully installed with the eyepieces extended and sealed. Figure E-2 also shows the microscope moved forward into proper position on the Stand-Still Isolation Platform. Figure E-2...
  • Page 89 Stereoscopes with forward extending bases and frequent eyepiece height adjustment typically require the selection of a Pure-Vu XL Seal and Stand-Still XL Isolation Platform. Figures E-3 through E-10 are an aid in setting up the pleated Pure-Vu XL Seal. Figures E-11 and E-12 show typical complete installations of stereo microscopes and proper placement of the Stand-Still XL Isolation Platform.
  • Page 90 3. Per Figure E-5, form the second pleat and secure with transparent tape. Figure E-5 4. Per Figure E-6 and Figure 4-8, place the Outer Aerodynamic collar over the Pure-Vu XL Seal and lightly secure in place with the 14 Phillips mounting screws. Do not tighten.
  • Page 91 6. Per Figure E-8, move the microscope forward through the holes in the Pure-Vu Seal and install each eyepiece. A tight seal should be formed around each eyepiece. Figure E-8 7. Figure E-9 shows the finished installation. Figure E-9 8. Per Figure E-10, adjust the scope eyepiece height for proper focus. Figure E-10...
  • Page 92 9. Figure E-11 shows the completed installation of the Pure-Vu XL Seal and Stand- Still XL Isolation Platform for one scope manufacturer. The Pure-Vu XL Seals extend 5.5" below the aerodynamic collar. Figure E-11...
  • Page 93 10. Figure E-12 shows a different installation of the Pure-Vu XL Seal and Stand-Still XL Isolation Platform for another scope manufacturer. Figure E-12 11. Refer to Section 9: Accessories to order Pure-Vu Seals and Stand-Still Isolation Platforms and use Section 4 Appendix E as an aid for proper setup.

  • Page 94: Pure-Vu Template

    Pure-Vu Template For the optics cutout locations on various pre-cut Pure-Vu Seals by Catalog Number, see Figure E-13. Note: Not to scale, see Figure E-14 for a 1:1 scale drawing of these optics hole locations. The 1:1 scale drawing allows you to cut out the desired optics holes in the provided blank Pure-Vu Seal.
  • Page 95 Figure E-14...
