a. Check to ensure that the magnet is still attached to the inside edge of the
Hatch/Sash.
b. Reposition the Sensor to align with the magnet on the inside surface of the
Hatch/Sash. Reference Figure 11-5. Loosen the two (2) Screws with a
T20 Torx Driver. Slide the Sash Sensor Bracket up or down as needed to
better align the Sash Sensors with the magnets on the Hatch and/or Sash.
4. If the switch position does not respond as described, replace it with a new
Sensor.
SCREWS (2)
T20 TORX DRIVE
SASH SENSOR (1)
SASH SENSOR
BRACKET
SCREWS (2)
T20 TORX DRIVE
SASH SENSORS (2)

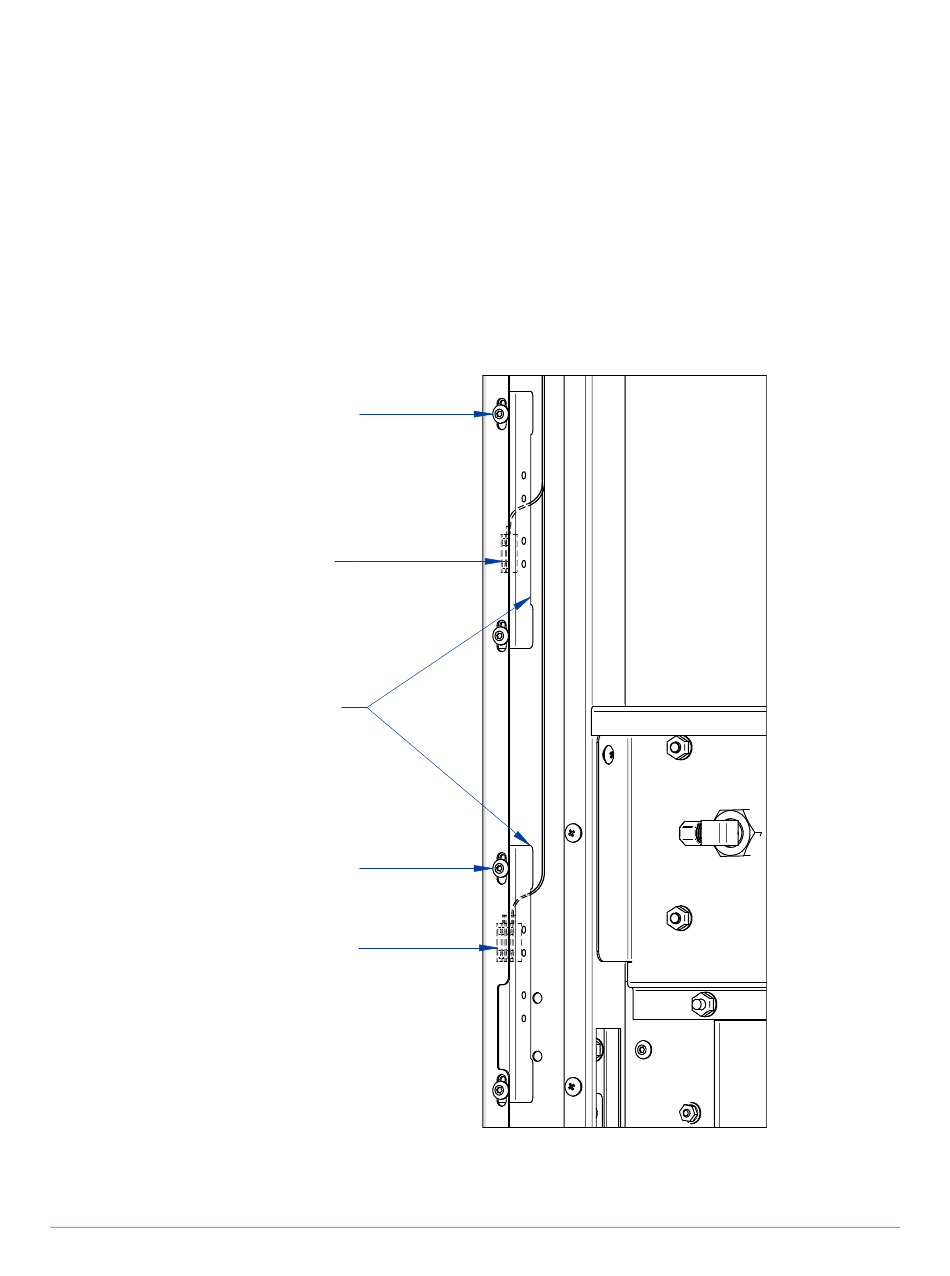

Figure 11-5
