Drip Tray Removal

To lift or remove the Drip Tray, reference Figure 10-2 and follow these steps.
1. Turn the enclosure blowers on.
2. Take note of the air slots that house each Drip Tray Tab. Lift the Drip Tray to
clear each Tab from the air slot.
If removing the Drip Tray from the enclosure, the Drip Tray must be thoroughly
decontaminated before removing it from the enclosure.
To reinstall the Drip Tray, carefully set and/or slide the Drip Tray onto the Work Surface.
Locate the four (4) Tabs on each corner of the Drip Tray into the farthest outward front
and rear air slot on the innermost row of slots.

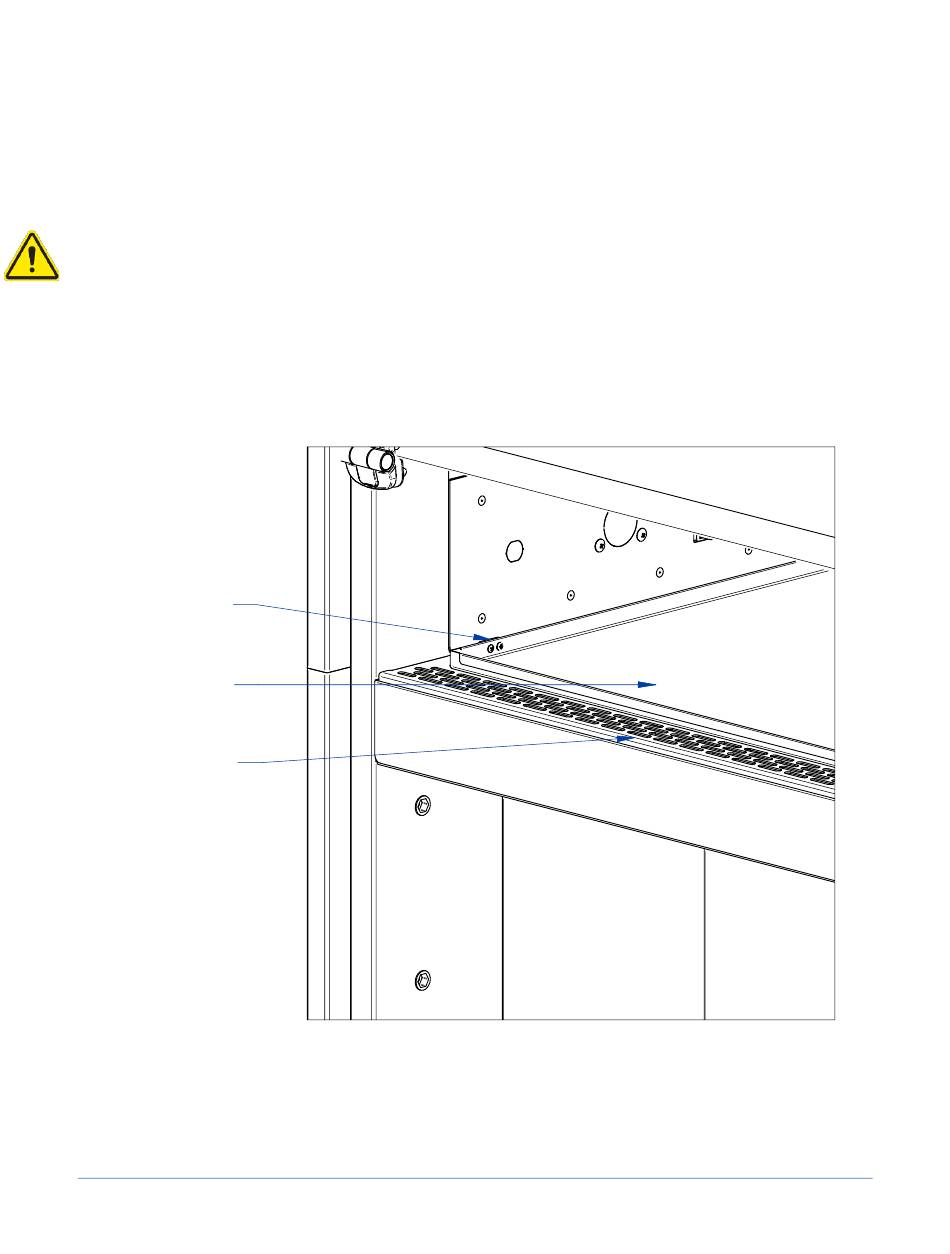

DRIP TRAY
TABS (4)
DRIP TRAY
WORK
SURFACES
116
Figure 10-2
