As shown in Figure 9-8, remove the two (2) Screws on each of the two (2) Pre-Filter
Plates, then pull the front edge of the Pre-Filter up and slide it towards you. Set the
Pre-Filter, Plates, and Screws aside. Pull the USB cable further into the upper
blower/plenum area, and locate the USB Data label (see Figure 9-8). Connect the mini-
USB end of the cable into this port.
Replace the Electrical Service Panel, being sure to route the USB cable through the
provided slot in the Panel. Replace all four (4) Screws to secure the Panel.
Verify the USB cable is still connected firmly in the USB Data port. The use of zip ties
as a strain relief on the USB cable is acceptable, provided the zip ties and cable are not
near the Supply Blower.
Replace the Pre-Filter, two (2) Pre-Filter Plates, and all Screws.

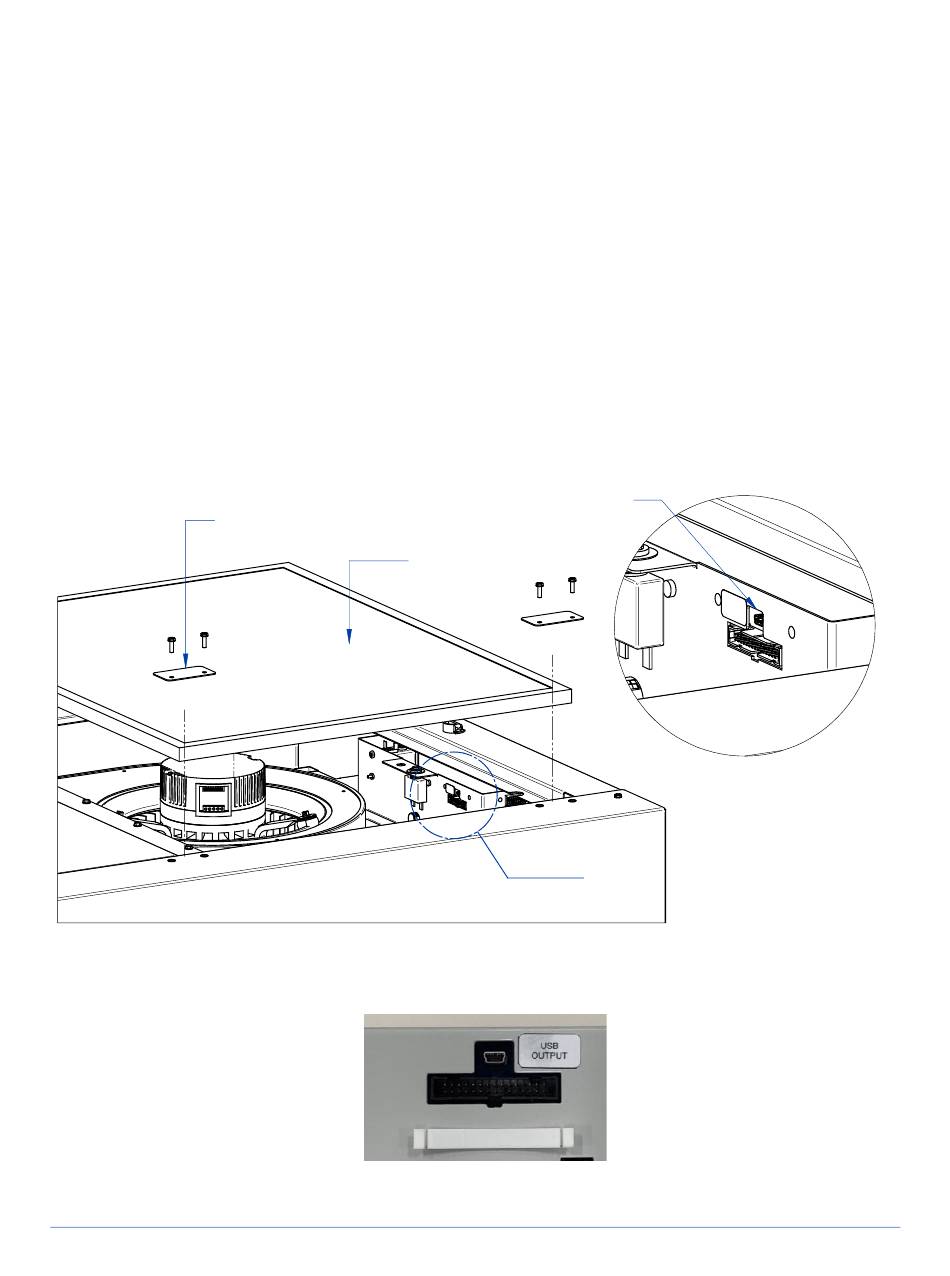

Figure 9-8
MINI-USB
PRE-FILTER PLATE (2)
CONNECTION
PRE-FILTER
DETAIL VIEW
DETAIL
107
