Step 4 – Sash Removal

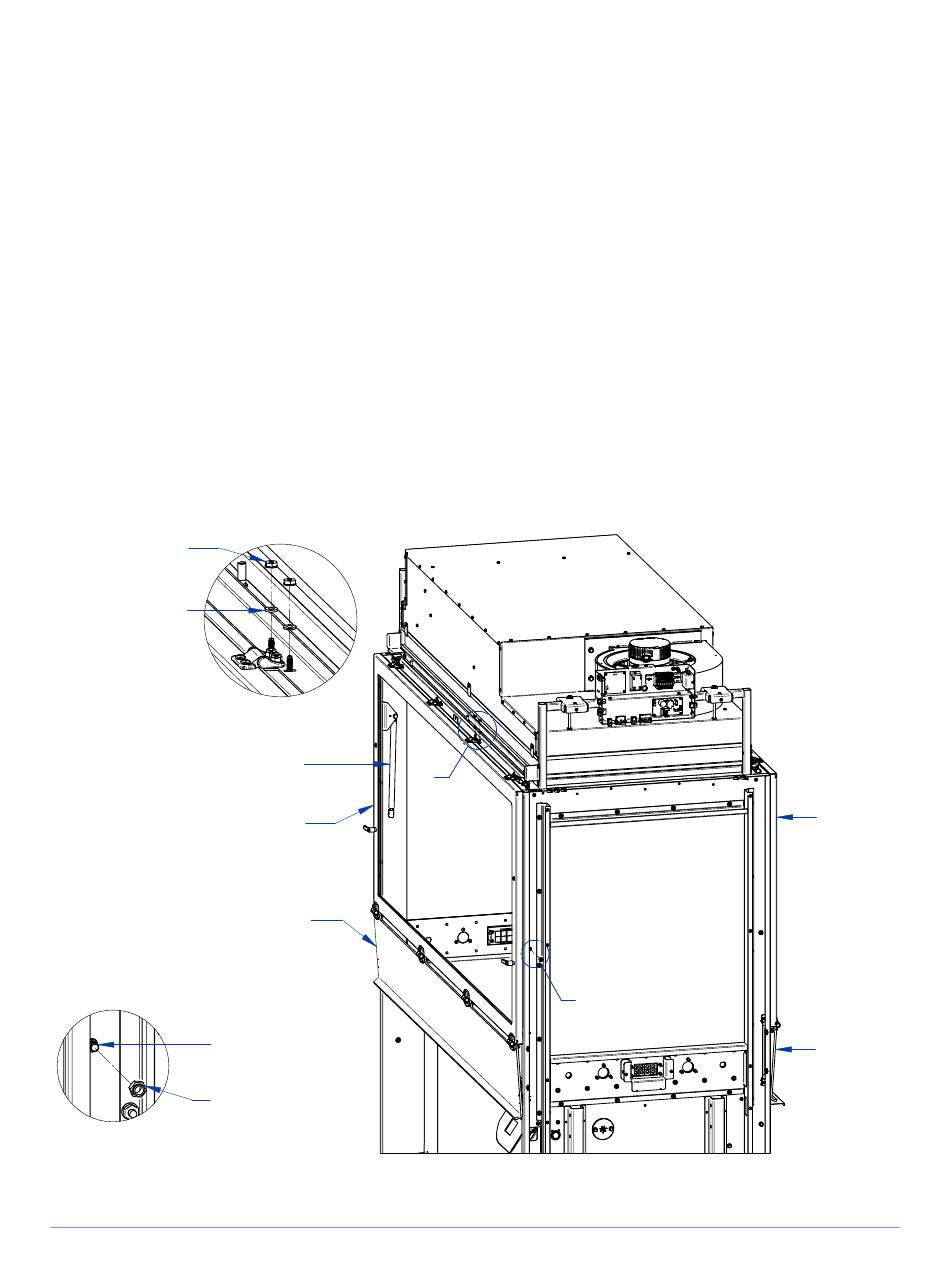

Reference Figure 4-12. Rotate the Lower Sash fully open (lock Sash Retainer Latches
if desired). Rotate Front Hatch fully open. Use one person to support the Front Hatch,
while a second person removes the Gas Spring Nut (see Detail B in Figure 4-12). Hold
the Gas Spring Stud stationary using the 1/2" wrench on the inside of the liner, while
using the 1/2" socket and ratchet to loosen the Nut. Repeat for Gas Spring Nut on
opposite end of Front Hatch. Allow Gas Springs to extend fully, close the Front Hatch
slowly.
Remove the eight (8) Keps Nuts and Washers along the top of the Front Hatch (2
Nuts/Washers located near each of the four (4) hinges). Using two persons, lift the
Front Hatch up to clear the threaded studs in the top of the liner. Set the Front Hatch
aside.
Repeat these instructions for the Rear Hatch.
KEPS NUTS
(8 PER HATCH)
WASHERS
(8 PER HATCH)
GAS SPRING
(2 PER HATCH)
GAS SPRING
STUD
GAS SPRING
NUT
DETAIL B
DETAIL C
FRONT
HATCH
LOWER
SASH
C
B
36
Figure 4-12
REAR
HATCH
LOWER
SASH
