Web – Click Priority, Queue Mode. Select Strict or WRR, then click Apply.
CLI – The following sets the queue mode to strict priority service mode.
Console(config)#queue mode strict
Console(config)#exit
Console#show queue mode
Queue mode: strict
Console#

Setting the Service Weight for Traffic Classes

This switch uses the Weighted Round Robin (WRR) algorithm to
determine the frequency at which it services each priority queue. As
described in "Mapping CoS Values to Egress Queues" on page 3-187, the
traffic classes are mapped to one of the four egress queues provided for
each port. You can assign a weight to each of these queues (and thereby to
the corresponding traffic priorities). This weight sets the frequency at
which each queue will be polled for service, and subsequently affects the
response time for software applications assigned a specific priority value.
Command Attributes
• WRR Setting Table* – Displays a list of weights for each traffic class
(i.e., queue).
* CLI shows Queue ID.

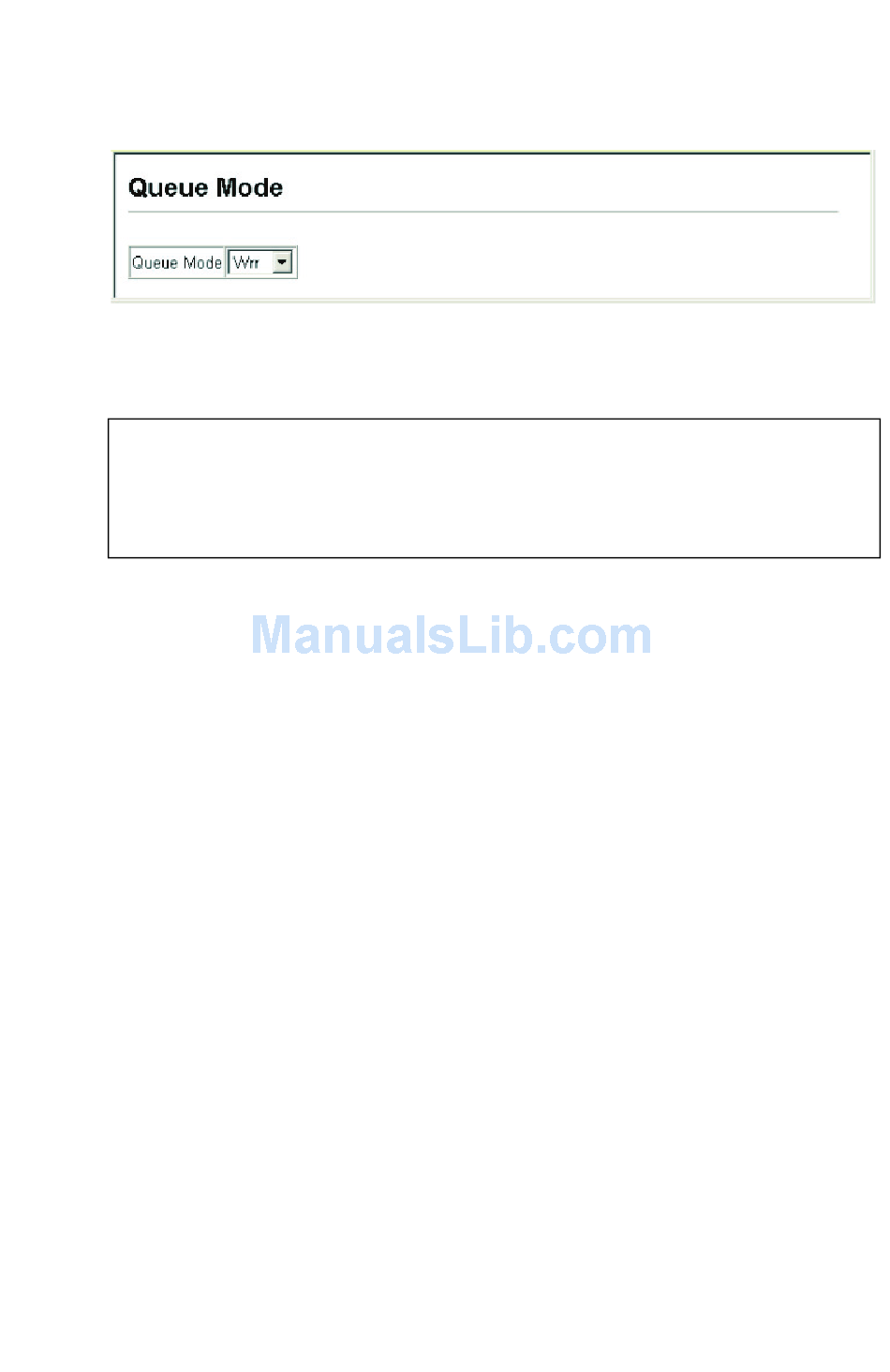

Figure 3-85. Setting the Queue Mode
