4

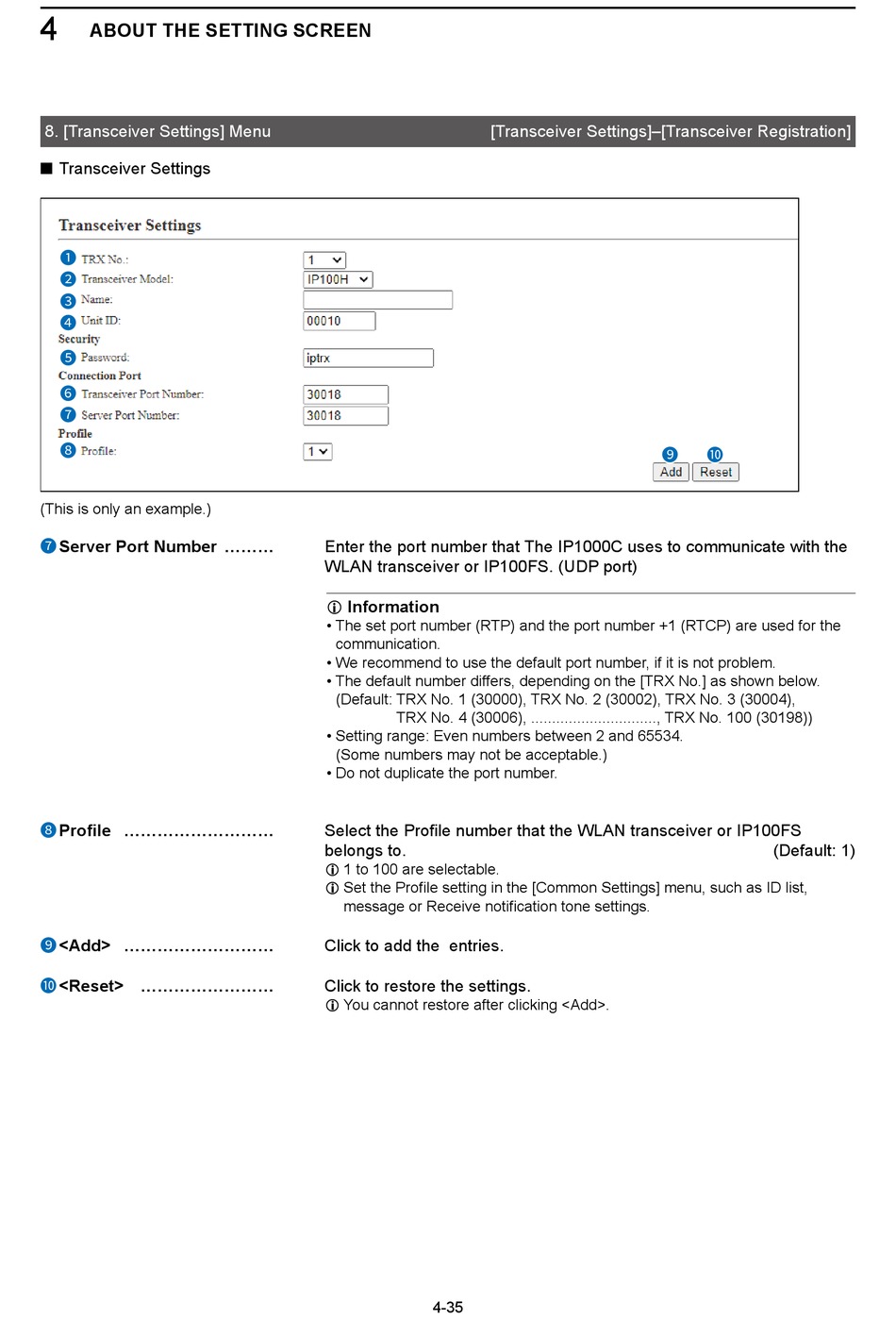

ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings
1
2
3
4
5
6
7
8
(This is only an example.)
Server Port Number ���
7
Profile ���������
8
<Add> ���������
9
<Reset> ��������
10
[Transceiver Settings]–[Transceiver Registration]
Enter the port number that The IP1000C uses to communicate with the
WLAN transceiver or IP100FS. (UDP port)
Information
L
• The set port number (RTP) and the port number +1 (RTCP) are used for the
communication.
• We recommend to use the default port number, if it is not problem.
• The default number differs, depending on the [TRX No.] as shown below.
(Default: TRX No. 1 (30000), TRX No. 2 (30002), TRX No. 3 (30004),
TRX No. 4 (30006), .............................., TRX No. 100 (30198))
• Setting range: Even numbers between 2 and 65534.
(Some numbers may not be acceptable.)
• Do not duplicate the port number.
Select the Profile number that the WLAN transceiver or IP100FS
belongs to.
L 1 to 100 are selectable.
L Set the Profi le setting in the [Common Settings] menu, such as ID list,
message or Receive notifi cation tone settings.
Click to add the entries.
Click to restore the settings.
L You cannot restore after clicking <Add>.
4-35
9 10
(Default: 1)
