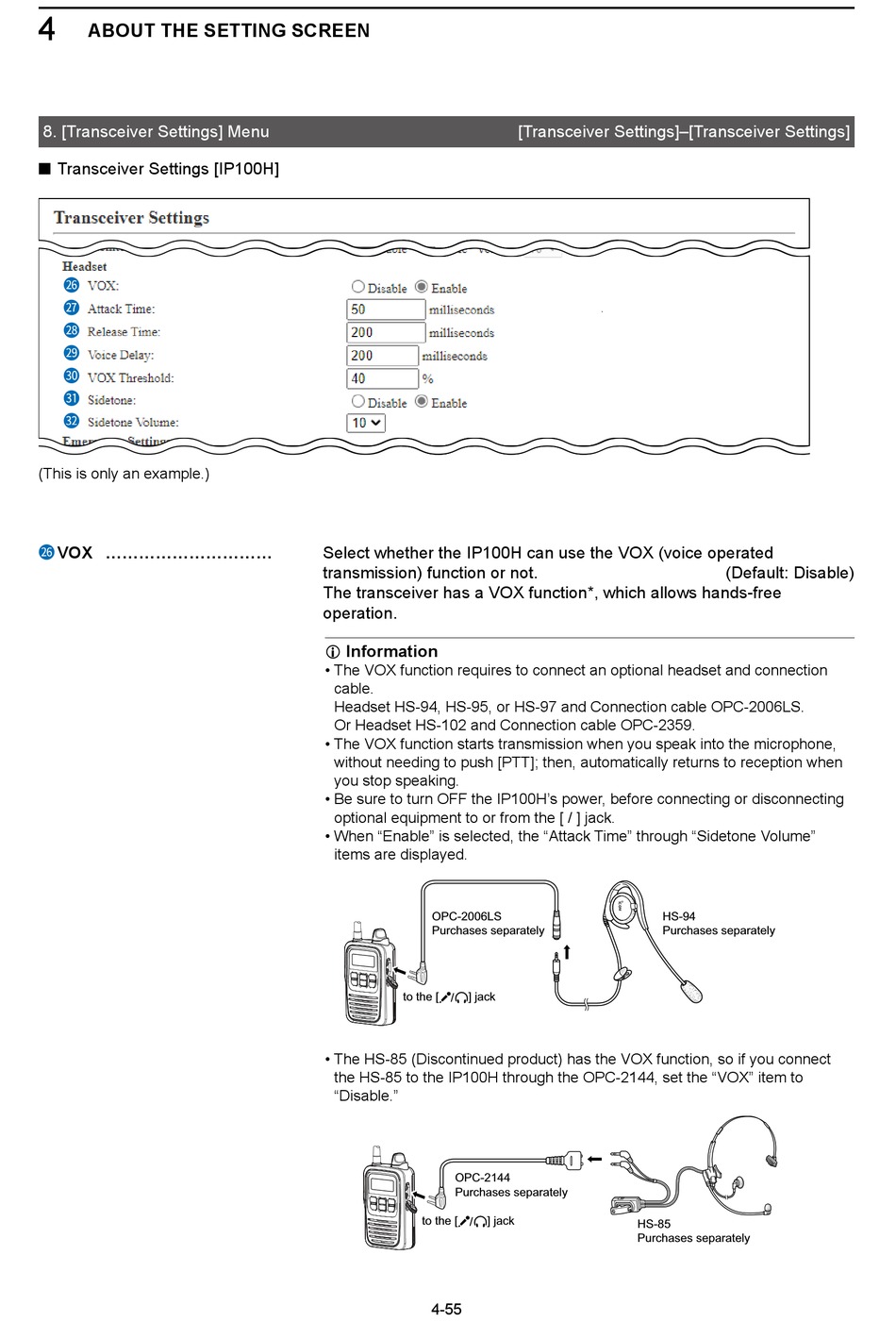

Icom IP1000C Instruction Manual page 108

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP100H]
26
27
28
29
30
31
32
(This is only an example.)
VOX ����������
26
Select whether the IP100H can use the VOX (voice operated
transmission) function or not.
The transceiver has a VOX function*, which allows hands-free
operation.
Information
L
• The VOX function requires to connect an optional headset and connection
cable.
Headset HS-94, HS-95, or HS-97 and Connection cable OPC-2006LS.
Or Headset HS-102 and Connection cable OPC-2359.
• The VOX function starts transmission when you speak into the microphone,
without needing to push [PTT]; then, automatically returns to reception when
you stop speaking.
• Be sure to turn OFF the IP100H's power, before connecting or disconnecting
optional equipment to or from the [ / ] jack.
• When "Enable" is selected, the "Attack Time" through "Sidetone Volume"
items are displayed.
OPC-2006LS
Purchases separately
to the [ ] jack
/
• The HS-85 (Discontinued product) has the VOX function, so if you connect
the HS-85 to the IP100H through the OPC-2144, set the "VOX" item to
"Disable."
OPC-2144
Purchases separately
to the [ ] jack
/
4-55
[Transceiver Settings]–[Transceiver Settings]
HS-94
Purchases separately
HS-85
Purchases separately
(Default: Disable)
