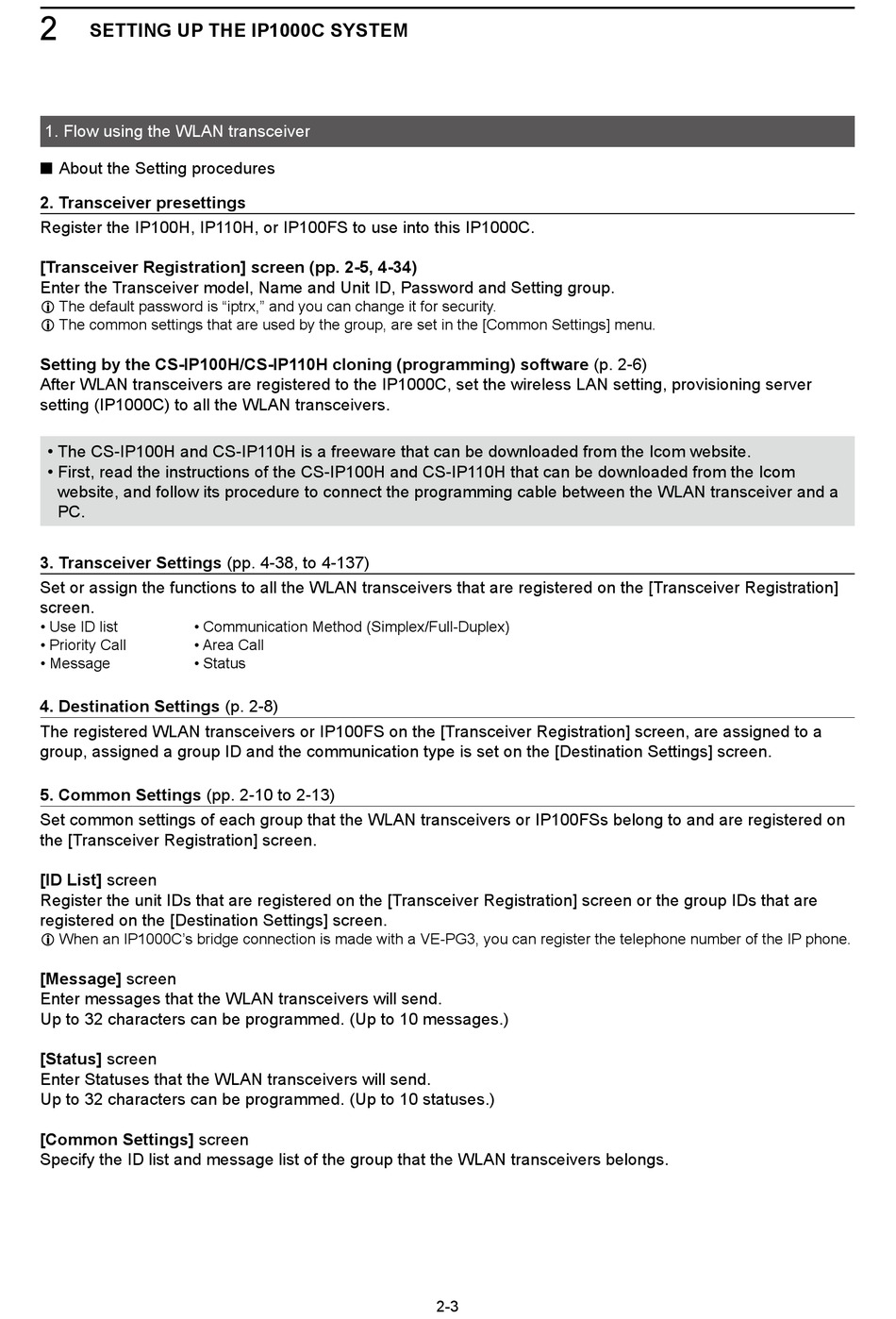

Icom IP1000C Instruction Manual page 22

2
SETTING UP THE IP1000C SYSTEM
1. Flow using the WLAN transceiver
■ About the Setting procedures
2. Transceiver presettings
Register the IP100H, IP110H, or IP100FS to use into this IP1000C.
[Transceiver Registration] screen (pp. 2-5, 4-34)
Enter the Transceiver model, Name and Unit ID, Password and Setting group.
L The default password is "iptrx," and you can change it for security.
L The common settings that are used by the group, are set in the [Common Settings] menu.
Setting by the CS-IP100H/CS-IP110H cloning (programming) software (p. 2-6)
After WLAN transceivers are registered to the IP1000C, set the wireless LAN setting, provisioning server
setting (IP1000C) to all the WLAN transceivers.
• The CS-IP100H and CS-IP110H is a freeware that can be downloaded from the Icom website.
• First, read the instructions of the CS-IP100H and CS-IP110H that can be downloaded from the Icom
website, and follow its procedure to connect the programming cable between the WLAN transceiver and a
PC.
3. Transceiver Settings (pp. 4-38, to 4-137)
Set or assign the functions to all the WLAN transceivers that are registered on the [Transceiver Registration]
screen.
• Use ID list • Communication Method (Simplex/Full-Duplex)
• Priority Call • Area Call
• Message • Status
4. Destination Settings (p. 2-8)
The registered WLAN transceivers or IP100FS on the [Transceiver Registration] screen, are assigned to a
group, assigned a group ID and the communication type is set on the [Destination Settings] screen.
5. Common Settings (pp. 2-10 to 2-13)
Set common settings of each group that the WLAN transceivers or IP100FSs belong to and are registered on
the [Transceiver Registration] screen.
[ID List] screen
Register the unit IDs that are registered on the [Transceiver Registration] screen or the group IDs that are
registered on the [Destination Settings] screen.
L When an IP1000C's bridge connection is made with a VE-PG3, you can register the telephone number of the IP phone.
[Message] screen
Enter messages that the WLAN transceivers will send.
Up to 32 characters can be programmed. (Up to 10 messages.)
[Status] screen
Enter Statuses that the WLAN transceivers will send.
Up to 32 characters can be programmed. (Up to 10 statuses.)
[Common Settings] screen
Specify the ID list and message list of the group that the WLAN transceivers belongs.
2-3
