1

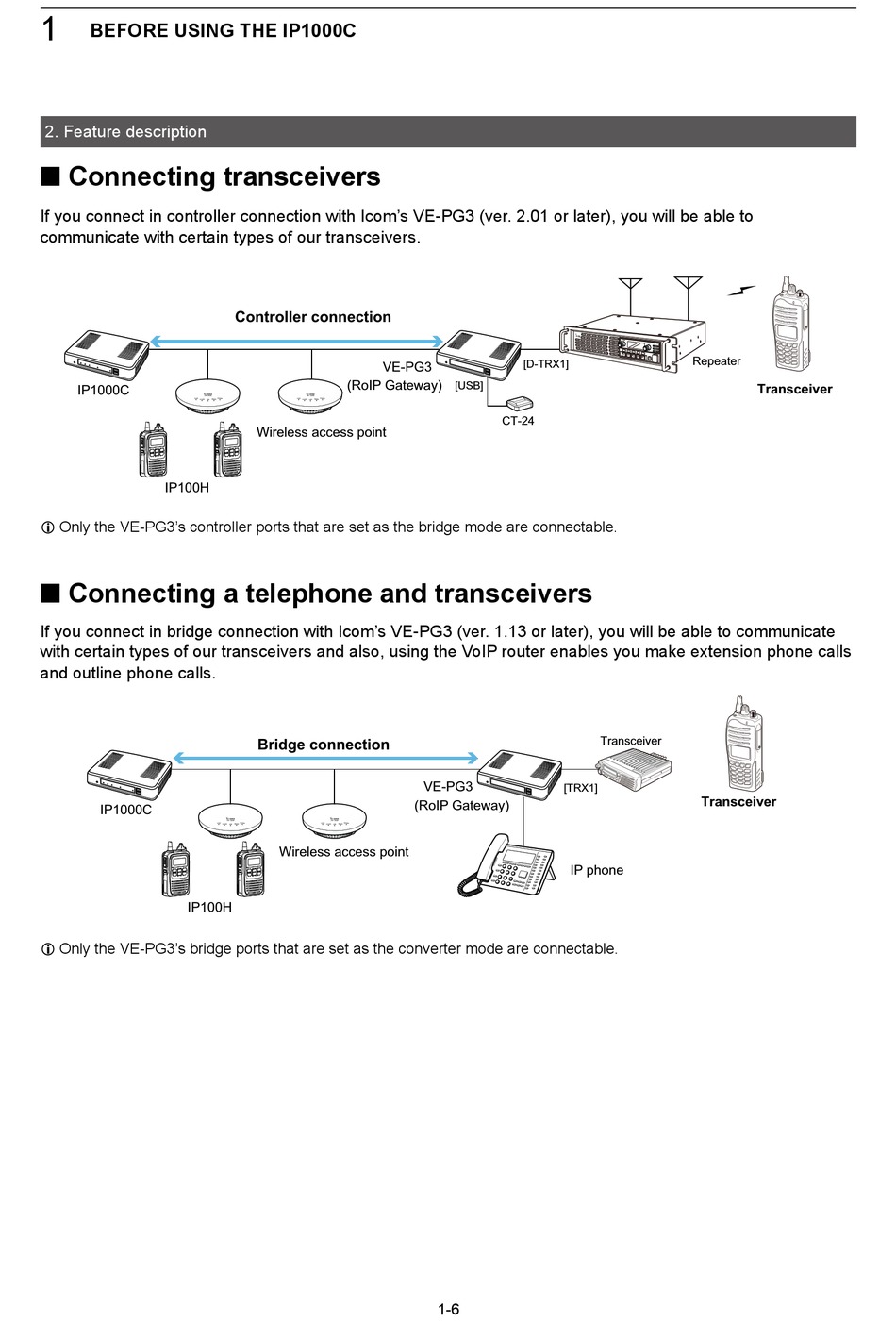

BEFORE USING THE IP1000C
2. Feature description
■ Connecting transceivers
If you connect in controller connection with Icom's VE-PG3 (ver. 2.01 or later), you will be able to
communicate with certain types of our transceivers.
Controller connection
P 0 Repeater
P 1
P 2
P 3
[D-TRX1] P 4
VE-PG3
(RoIP Gateway)
[USB]
Transceiver
IP1000C
CT-24
Wireless access point
IP100H
L Only the VE-PG3's controller ports that are set as the bridge mode are connectable.
■ Connecting a telephone and transceivers
If you connect in bridge connection with Icom's VE-PG3 (ver. 1.13 or later), you will be able to communicate
with certain types of our transceivers and also, using the VoIP router enables you make extension phone calls
and outline phone calls.
Transceiver
Bridge connection
VE-PG3
[TRX1]
Transceiver
(RoIP Gateway)
IP1000C
Wireless access point
IP phone
IP100H
L Only the VE-PG3's bridge ports that are set as the converter mode are connectable.
1-6
