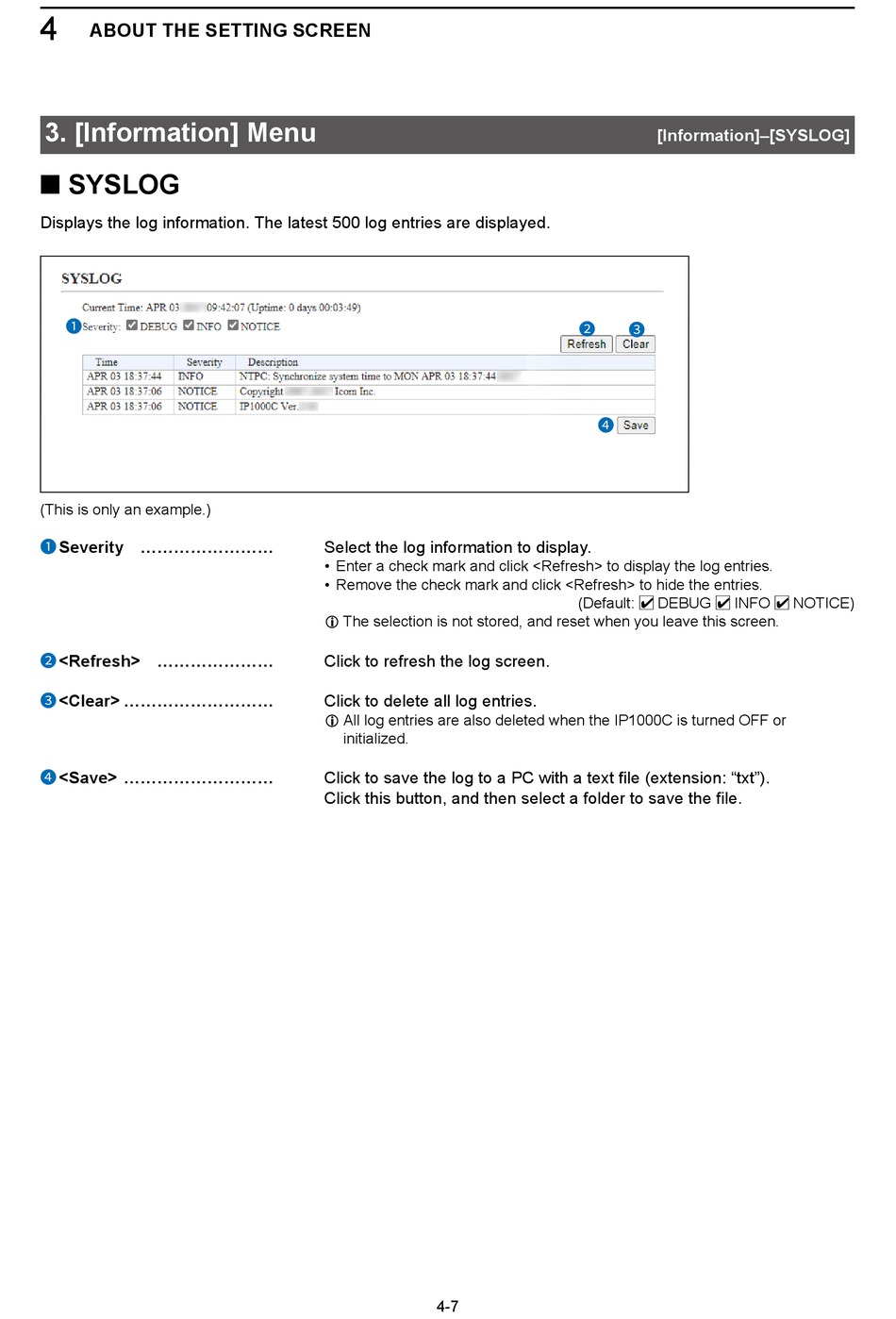

Icom IP1000C Instruction Manual page 60

4
ABOUT THE SETTING SCREEN
3. [Information] Menu
■ SYSLOG
Displays the log information. The latest 500 log entries are displayed.
1
(This is only an example.)
Severity ��������
1
<Refresh> �������
2
<Clear> ���������
3
<Save> ���������
4
Select the log information to display.
• Enter a check mark and click <Refresh> to display the log entries.
• Remove the check mark and click <Refresh> to hide the entries.
L The selection is not stored, and reset when you leave this screen.
Click to refresh the log screen.
Click to delete all log entries.
L All log entries are also deleted when the IP1000C is turned OFF or
initialized.
Click to save the log to a PC with a text file (extension: "txt").
Click this button, and then select a folder to save the file.
4-7
[Information]–[SYSLOG]
2
3
4
(Default: M ✔ DEBUG M ✔ INFO M ✔ NOTICE)
