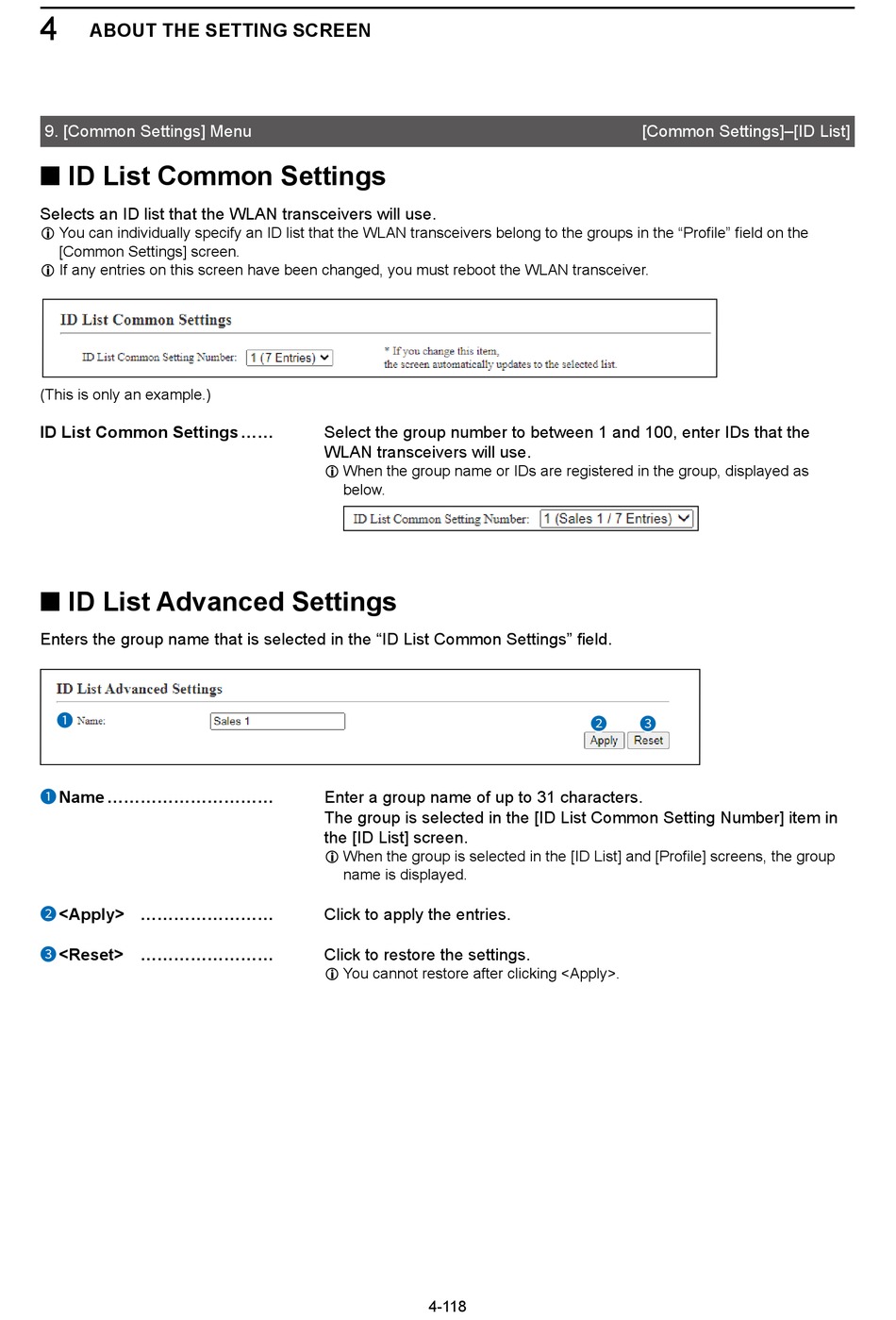

Icom IP1000C Instruction Manual page 171

4
ABOUT THE SETTING SCREEN
9. [Common Settings] Menu
■ ID List Common Settings
Selects an ID list that the WLAN transceivers will use.
L You can individually specify an ID list that the WLAN transceivers belong to the groups in the "Profile" field on the
[Common Settings] screen.
L If any entries on this screen have been changed, you must reboot the WLAN transceiver.
(This is only an example.)
ID List Common Settings ��
■ ID List Advanced Settings
Enters the group name that is selected in the "ID List Common Settings" field.
1
Name ����������
1
<Apply> ��������
2
<Reset> ��������
3
Select the group number to between 1 and 100, enter IDs that the
WLAN transceivers will use.
L When the group name or IDs are registered in the group, displayed as
below.
Enter a group name of up to 31 characters.
The group is selected in the [ID List Common Setting Number] item in
the [ID List] screen.
L When the group is selected in the [ID List] and [Profile] screens, the group
name is displayed.
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-118
[Common Settings]–[ID List]
2 3
