4

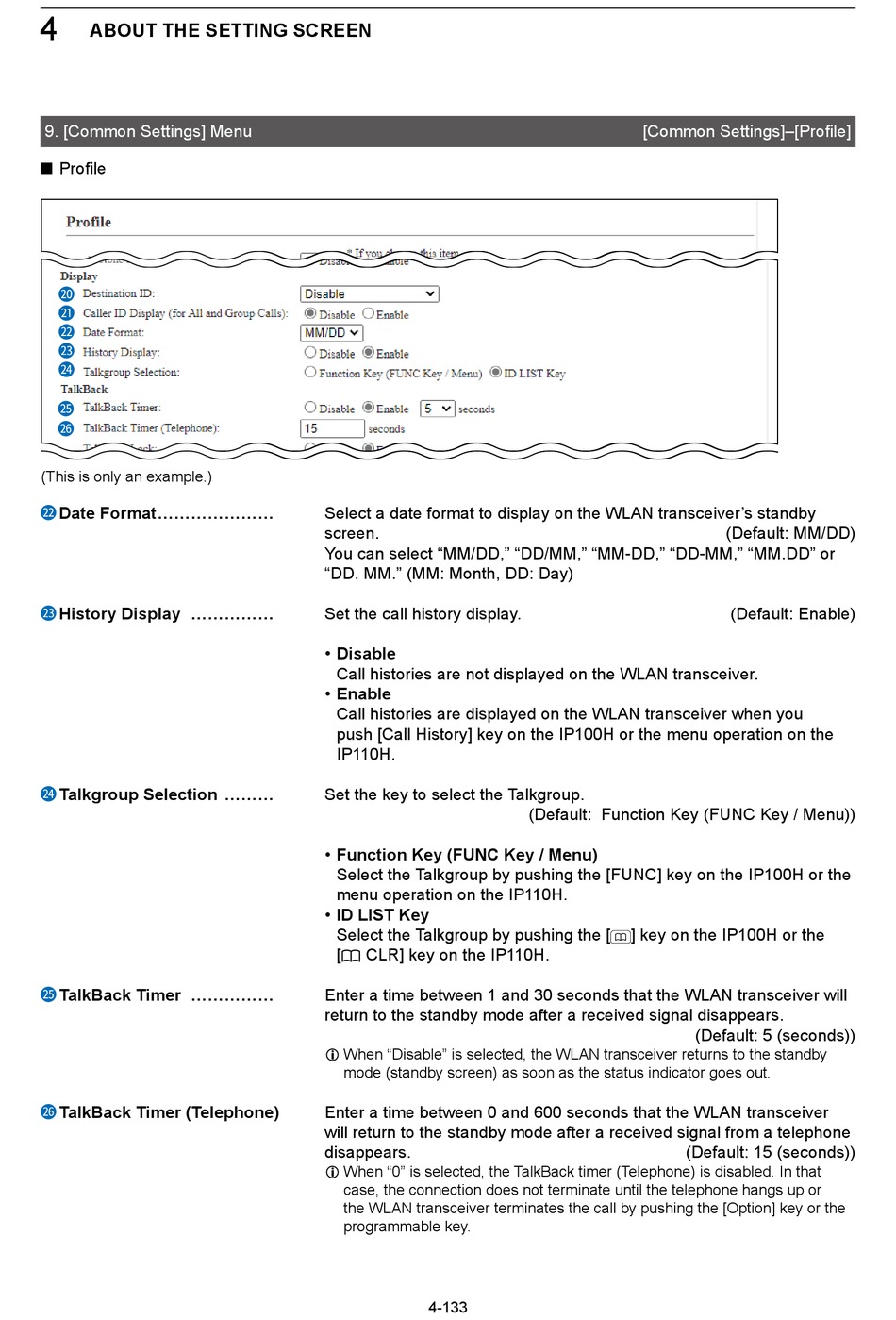

ABOUT THE SETTING SCREEN
9. [Common Settings] Menu
■ Profile
20
21
22
23
24
25
26
(This is only an example.)
Date Format �������
22
History Display �����
23
Talkgroup Selection ���
24
TalkBack Timer �����
25
TalkBack Timer (Telephone)
26
Select a date format to display on the WLAN transceiver's standby
screen.
You can select "MM/DD," "DD/MM," "MM-DD," "DD-MM," "MM.DD" or
"DD. MM." (MM: Month, DD: Day)
Set the call history display.
• Disable
Call histories are not displayed on the WLAN transceiver.
• Enable
Call histories are displayed on the WLAN transceiver when you
push [Call History] key on the IP100H or the menu operation on the
IP110H.
Set the key to select the Talkgroup.
• Function Key (FUNC Key / Menu)
Select the Talkgroup by pushing the [FUNC] key on the IP100H or the
menu operation on the IP110H.
• ID LIST Key
Select the Talkgroup by pushing the [
[
CLR] key on the IP110H.
Enter a time between 1 and 30 seconds that the WLAN transceiver will
return to the standby mode after a received signal disappears.
L When "Disable" is selected, the WLAN transceiver returns to the standby
mode (standby screen) as soon as the status indicator goes out.
Enter a time between 0 and 600 seconds that the WLAN transceiver
will return to the standby mode after a received signal from a telephone
disappears.
L When "0" is selected, the TalkBack timer (Telephone) is disabled. In that
case, the connection does not terminate until the telephone hangs up or
the WLAN transceiver terminates the call by pushing the [Option] key or the
programmable key.
4-133
[Common Settings]–[Profile]
(Default: Function Key (FUNC Key / Menu))
] key on the IP100H or the
(Default: 5 (seconds))
(Default: 15 (seconds))
(Default: MM/DD)
(Default: Enable)
