MAINTENANCE

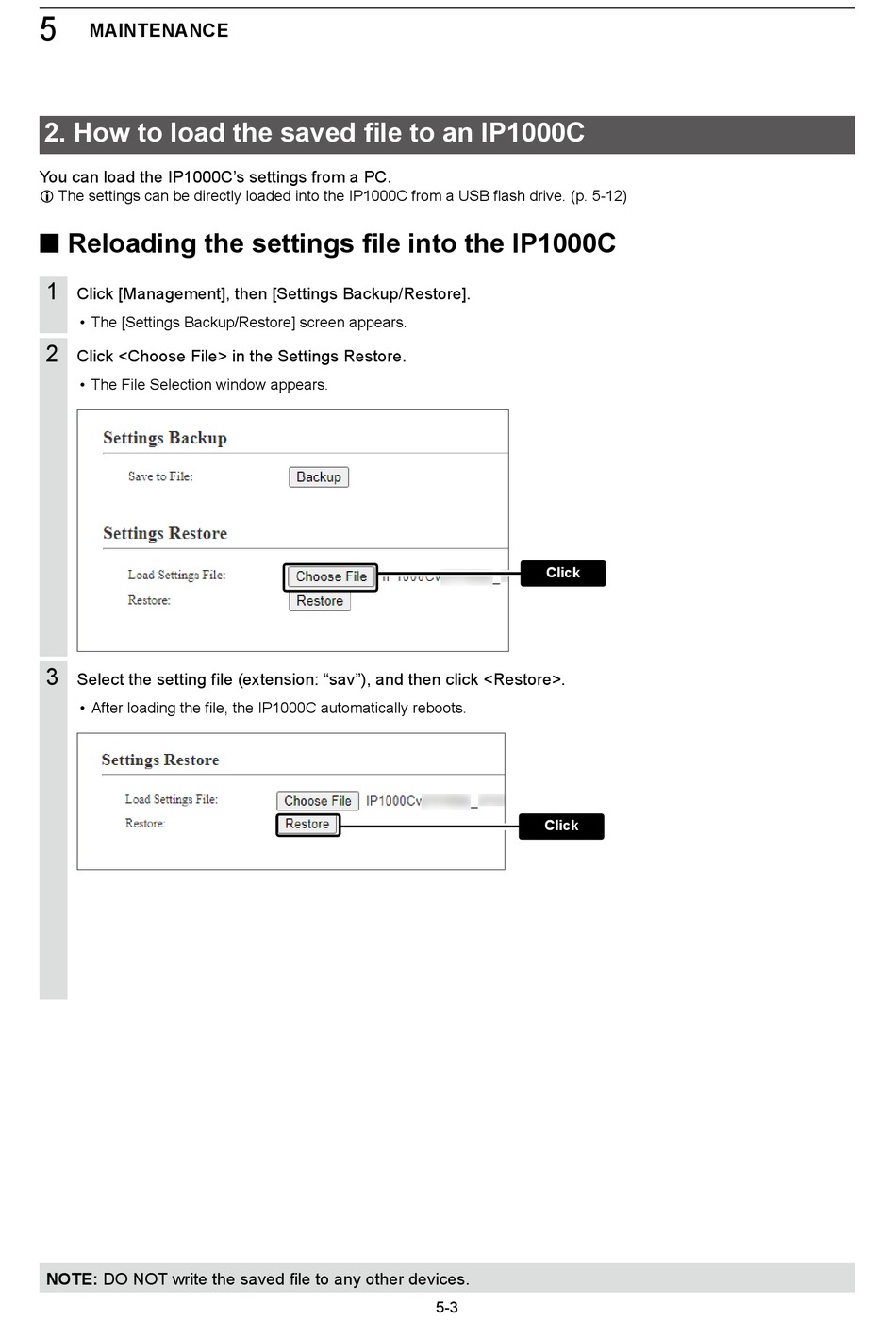

2. How to load the saved file to an IP1000C
You can load the IP1000C's settings from a PC.
L The settings can be directly loaded into the IP1000C from a USB flash drive. (p. 5-12)
■ Reloading the settings file into the IP1000C
1
Click [Management], then [Settings Backup/Restore].
• The [Settings Backup/Restore] screen appears.
2
Click <Choose File> in the Settings Restore.
• The File Selection window appears.
3
Select the setting file (extension: "sav"), and then click <Restore>.
• After loading the file, the IP1000C automatically reboots.
NOTE: DO NOT write the saved file to any other devices.
Click
Click
5-3
