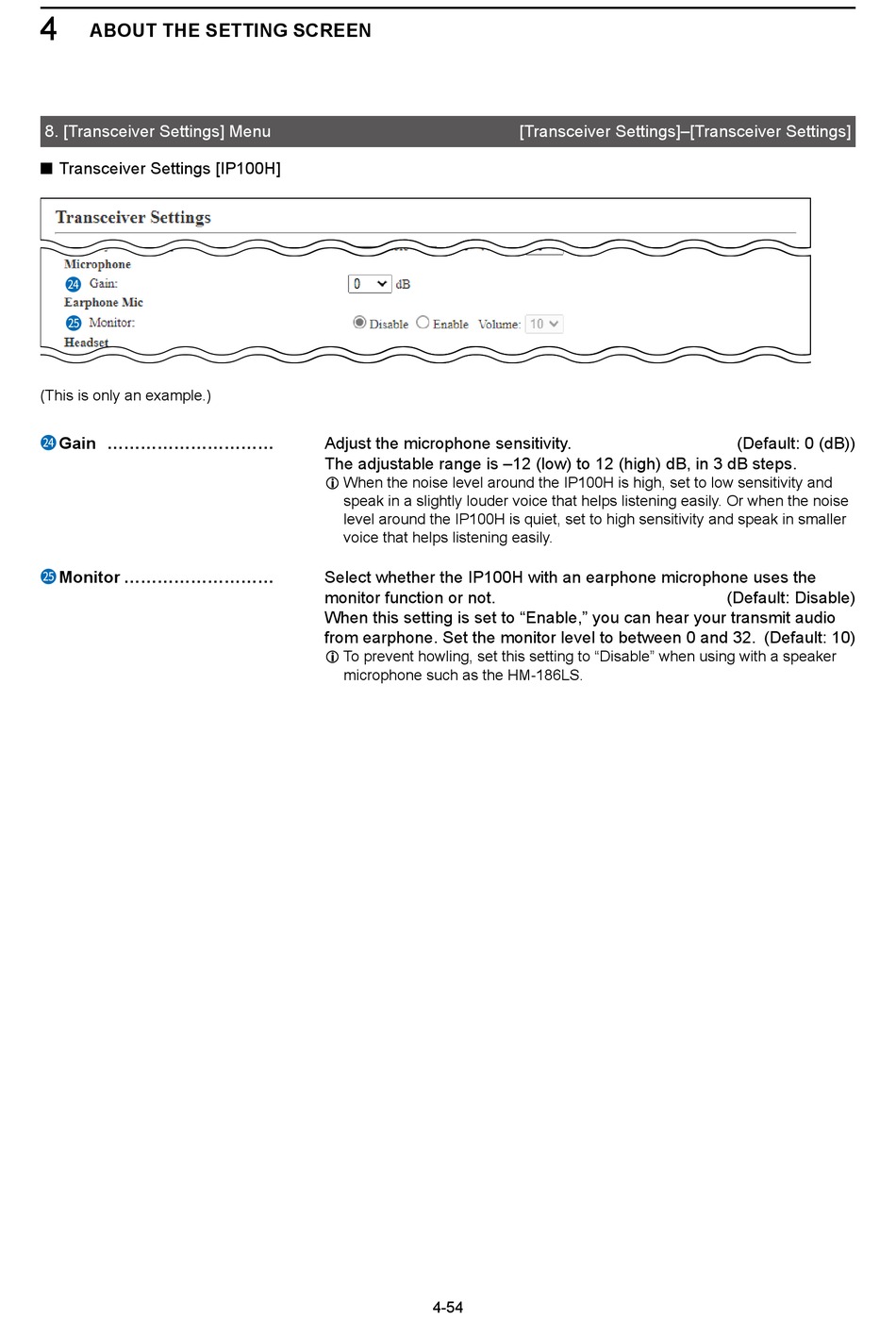

Icom IP1000C Instruction Manual page 107

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP100H]
24
25
(This is only an example.)
Gain ����������
24
Monitor ���������
25
Adjust the microphone sensitivity.
The adjustable range is –12 (low) to 12 (high) dB, in 3 dB steps.
L When the noise level around the IP100H is high, set to low sensitivity and
speak in a slightly louder voice that helps listening easily. Or when the noise
level around the IP100H is quiet, set to high sensitivity and speak in smaller
voice that helps listening easily.
Select whether the IP100H with an earphone microphone uses the
monitor function or not.
When this setting is set to "Enable," you can hear your transmit audio
from earphone. Set the monitor level to between 0 and 32. (Default: 10)
L To prevent howling, set this setting to "Disable" when using with a speaker
microphone such as the HM-186LS.
4-54
[Transceiver Settings]–[Transceiver Settings]
(Default: 0 (dB))
(Default: Disable)
