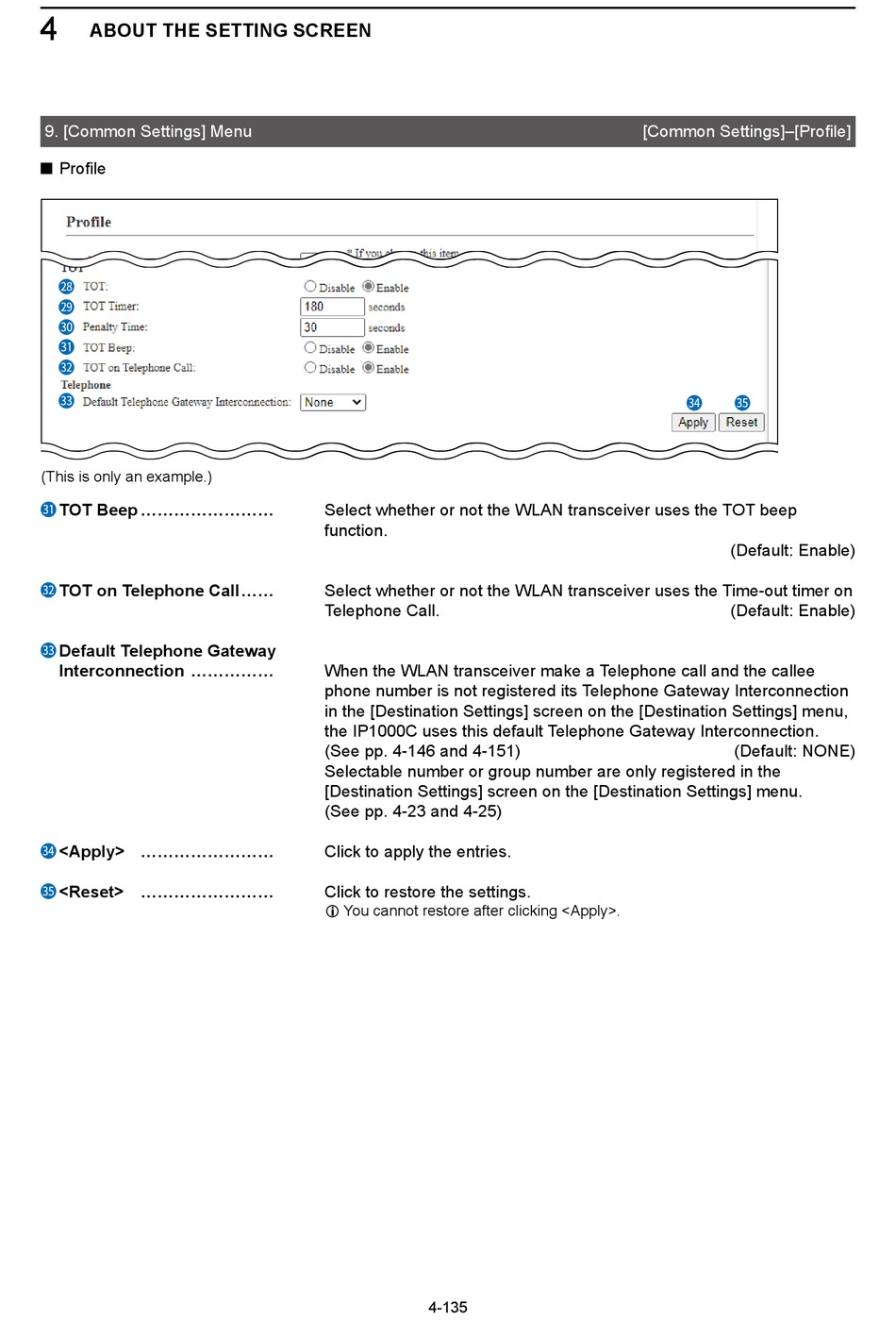

Icom IP1000C Instruction Manual page 188

4
ABOUT THE SETTING SCREEN
9. [Common Settings] Menu
■ Profile
28
29
30
31
32
33
(This is only an example.)
TOT Beep ��������
31
TOT on Telephone Call ��
32
Denault Telephone Gateway
33
Interconnection �����
<Apply> ��������
34
<Reset> ��������
35
Select whether or not the WLAN transceiver uses the TOT beep
function.
Select whether or not the WLAN transceiver uses the Time-out timer on
Telephone Call.
When the WLAN transceiver make a Telephone call and the callee
phone number is not registered its Telephone Gateway Interconnection
in the [Destination Settings] screen on the [Destination Settings] menu,
the IP1000C uses this default Telephone Gateway Interconnection.
(See pp. 4-146 and 4-151)
Selectable number or group number are only registered in the
[Destination Settings] screen on the [Destination Settings] menu.
(See pp. 4-23 and 4-25)
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-135
[Common Settings]–[Profile]
34 35
(Default: Enable)
(Default: Enable)
(Default: NONE)
