2
SETTING UP THE IP1000C SYSTEM

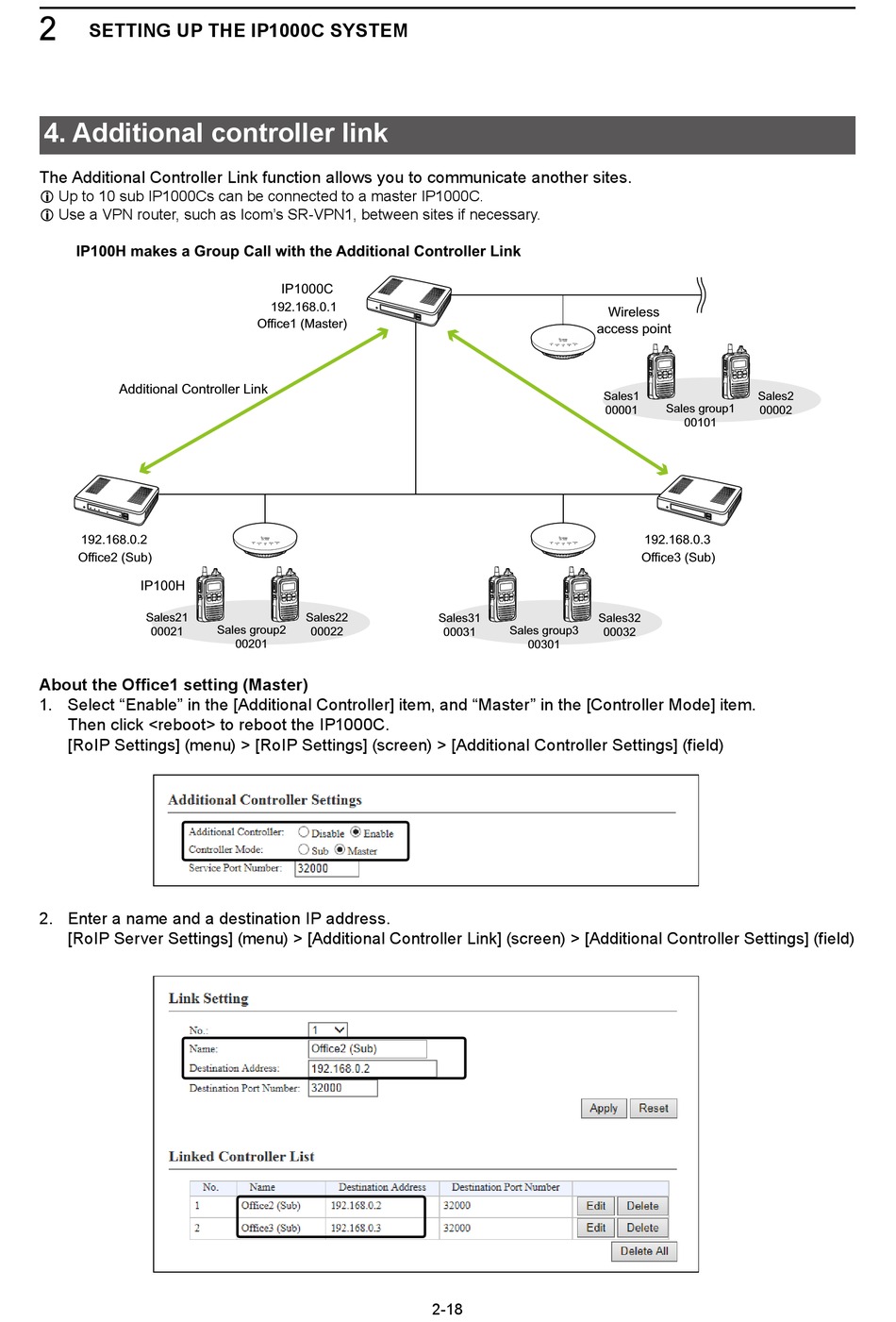

4. Additional controller link
The Additional Controller Link function allows you to communicate another sites.
L Up to 10 sub IP1000Cs can be connected to a master IP1000C.
L Use a VPN router, such as Icom's SR-VPN1, between sites if necessary.
IP100H makes a Group Call with the Additional Controller Link
Additional Controller Link
192.168.0.2
Office2 (Sub)
IP100H
Sales21
00021
About the Office1 setting (Master)
1. Select "Enable" in the [Additional Controller] item, and "Master" in the [Controller Mode] item.
Then click <reboot> to reboot the IP1000C.
[RoIP Settings] (menu) > [RoIP Settings] (screen) > [Additional Controller Settings] (field)
2. Enter a name and a destination IP address.
[RoIP Server Settings] (menu) > [Additional Controller Link] (screen) > [Additional Controller Settings] (field)
IP1000C
192.168.0.1
Office1 (Master)
Sales22
Sales group2
00022
00201
access point
Sales31 Sales32
Sales group3
00031
00301
2-18
Wireless
Sales1 Sales2
Sales group1
00001 00002
00101
192.168.0.3
Office3 (Sub)
00032
