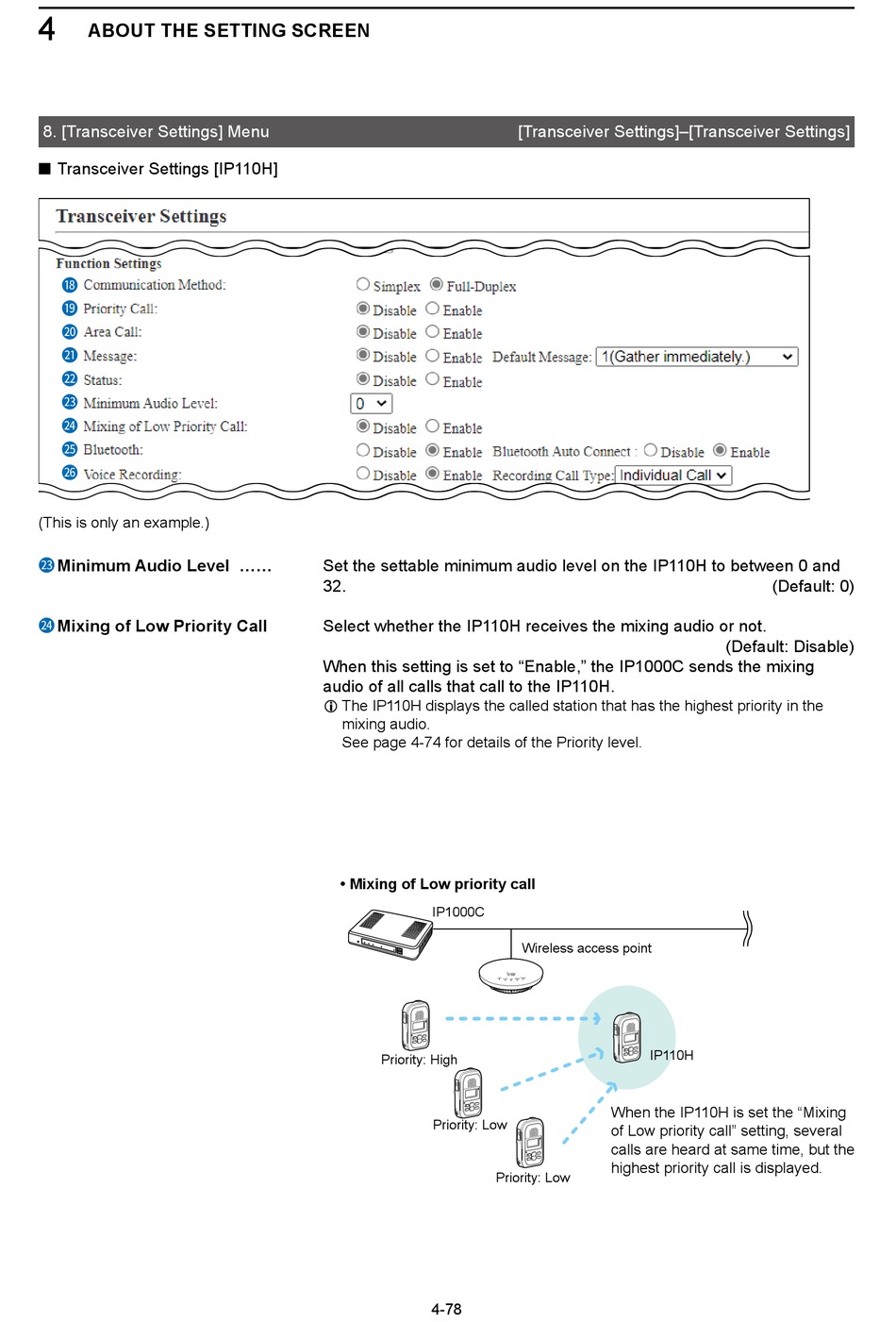

Icom IP1000C Instruction Manual page 131

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP110H]
18
19
20
21
22
23
24
25
26
(This is only an example.)
Minimum Audio Level ��
23
Mixing of Low Priority Call
24
Set the settable minimum audio level on the IP110H to between 0 and
32.
Select whether the IP110H receives the mixing audio or not.
When this setting is set to "Enable," the IP1000C sends the mixing
audio of all calls that call to the IP110H.
L The IP110H displays the called station that has the highest priority in the
mixing audio.
See page 4-74 for details of the Priority level.
• Mixing of Low priority call
IP1000C
Priority: High
Priority: Low
4-78
[Transceiver Settings]–[Transceiver Settings]
Wireless access point
IP110H
When the IP110H is set the "Mixing
of Low priority call" setting, several
calls are heard at same time, but the
highest priority call is displayed.
Priority: Low
(Default: 0)
(Default: Disable)
