Icom IP1000C Instruction Manual page 218

4
ABOUT THE SETTING SCREEN
11. [Management] Menu

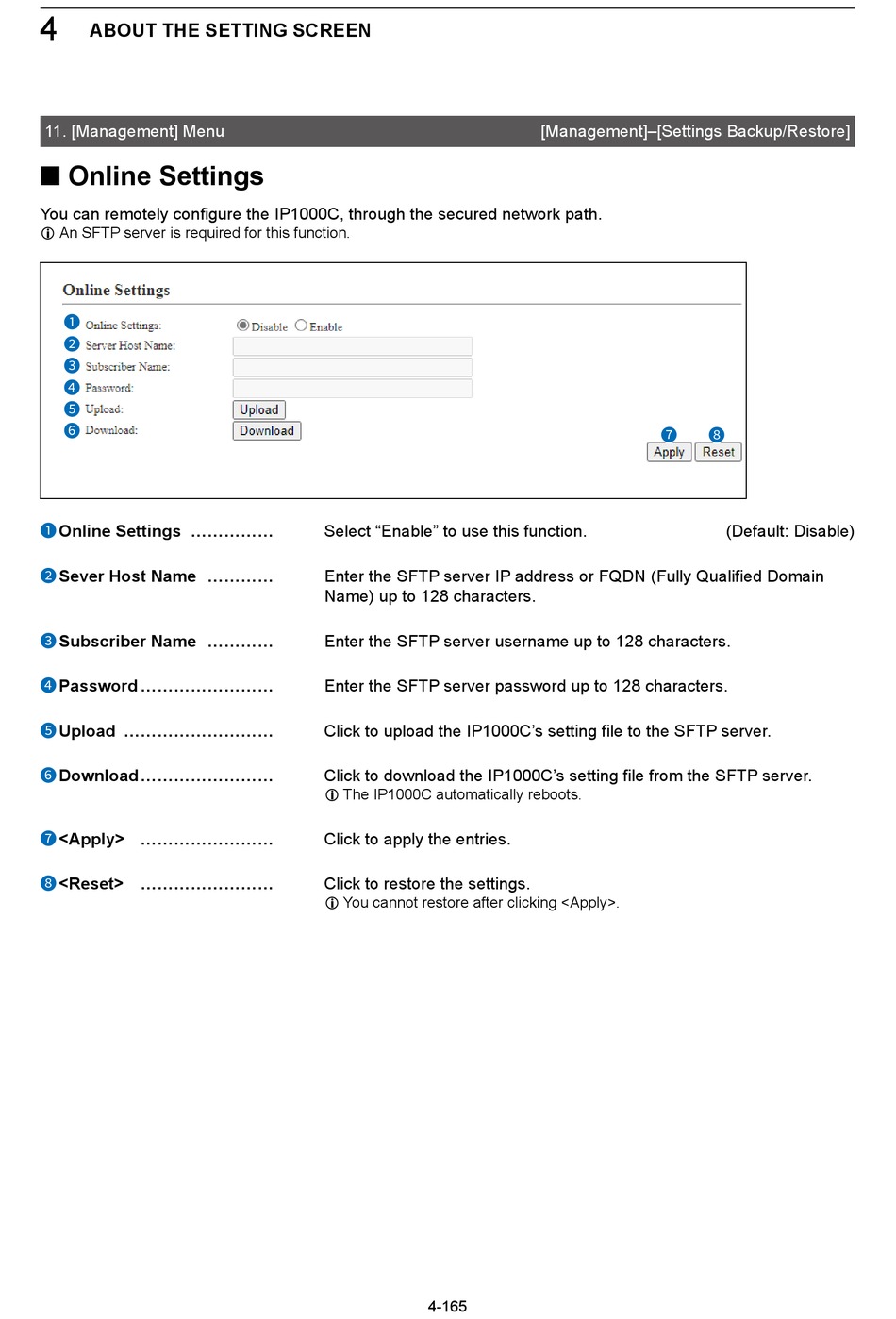

■ Online Settings
You can remotely configure the IP1000C, through the secured network path.
L An SFTP server is required for this function.
1
2
3
4
5
6
Online Settings �����
1
Sever Host Name ����
2
Subscriber Name ����
3
Password ��������
4
Upload ���������
5
Download ��������
6
<Apply> ��������
7
<Reset> ��������
8
Select "Enable" to use this function.
Enter the SFTP server IP address or FQDN (Fully Qualified Domain
Name) up to 128 characters.
Enter the SFTP server username up to 128 characters.
Enter the SFTP server password up to 128 characters.
Click to upload the IP1000C's setting file to the SFTP server.
Click to download the IP1000C's setting file from the SFTP server.
L The IP1000C automatically reboots.
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-165
[Management]–[Settings Backup/Restore]
7 8
(Default: Disable)
