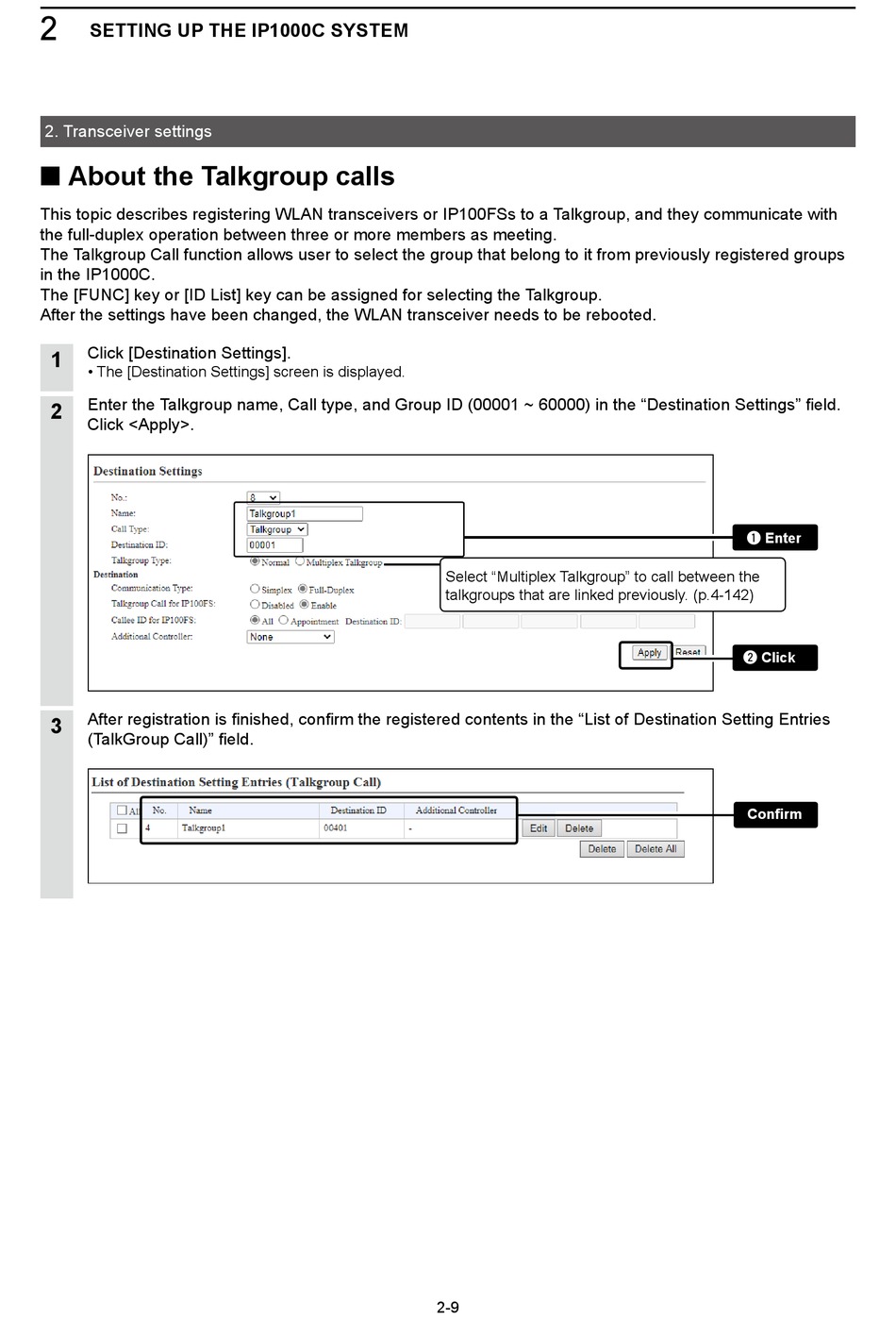

SETTING UP THE IP1000C SYSTEM
2. Transceiver settings
■ About the Talkgroup calls
This topic describes registering WLAN transceivers or IP100FSs to a Talkgroup, and they communicate with
the full-duplex operation between three or more members as meeting.
The Talkgroup Call function allows user to select the group that belong to it from previously registered groups
in the IP1000C.
The [FUNC] key or [ID List] key can be assigned for selecting the Talkgroup.
After the settings have been changed, the WLAN transceiver needs to be rebooted.
Click [Destination Settings].
1
• The [Destination Settings] screen is displayed.
Enter the Talkgroup name, Call type, and Group ID (00001 ~ 60000) in the "Destination Settings" field.
2
Click <Apply>.
After registration is finished, confirm the registered contents in the "List of Destination Setting Entries
3
(TalkGroup Call)" field.
Select "Multiplex Talkgroup" to call between the
talkgroups that are linked previously. (p.4-142)
2-9
q Enter
w Click
Confirm
