4
ABOUT THE SETTING SCREEN
2. [TOP] Menu

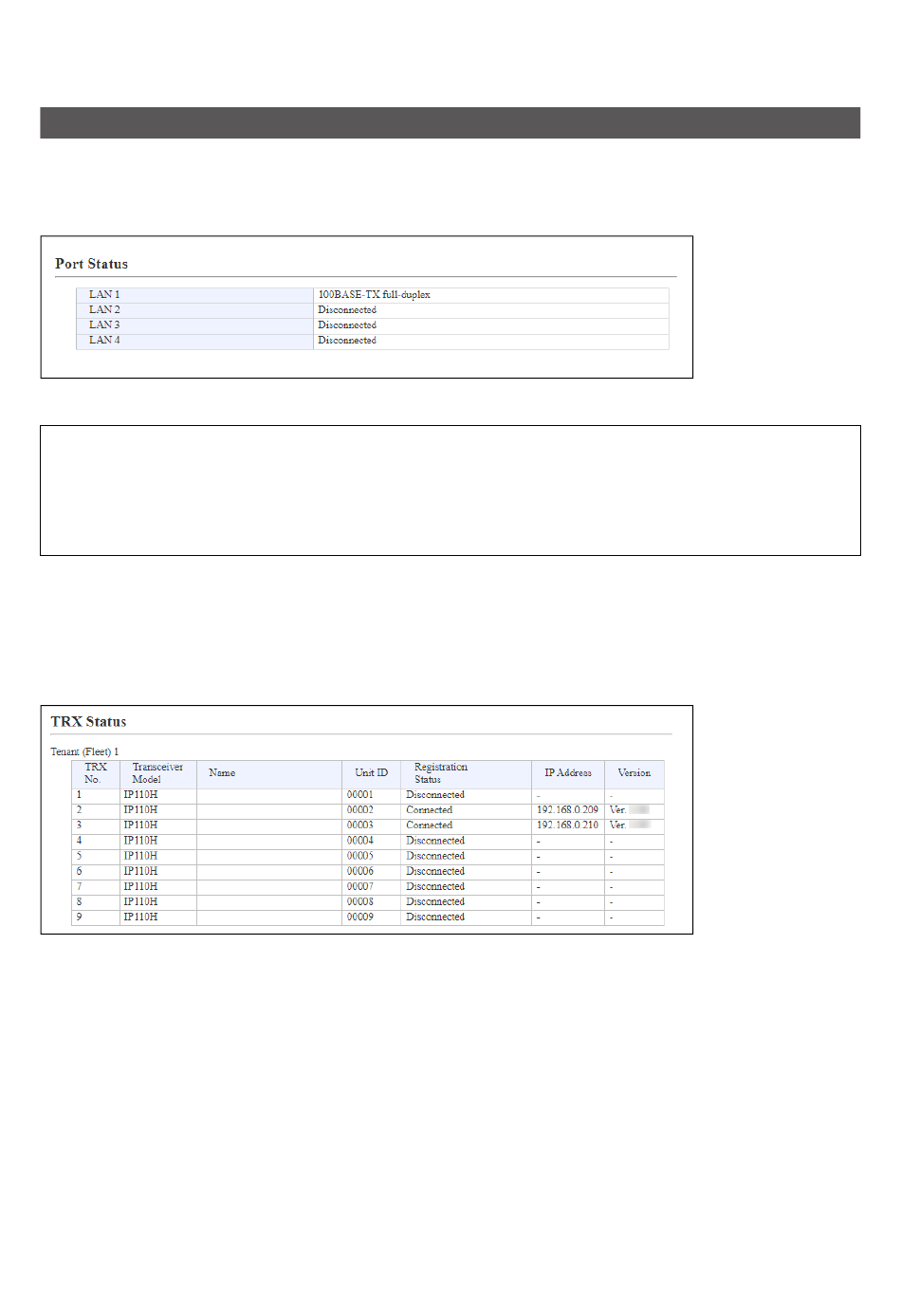

■ Port Status
Displays the communication rate and mode for each port.
(This is only an example.)
TIP:
• The IP1000C's [LAN] ports are auto-negotiation enabled, and can automatically select the optimal speed
and duplex mode if the peer devices are auto-negotiation enabled as well.
• We recommend to always enable auto-negotiation on the peer devices.
If a peer device is fixed to full-duplex mode, auto-negotiation enabled devices (including the IP1000C) may
generally take it for half-duplex mode and cannot communicate properly.
■ TRX Status
Displays the registered WLAN transceivers and IP100FS information such as the Registration status, IP
Address, and Version.
(This is only an example.)
4-6
