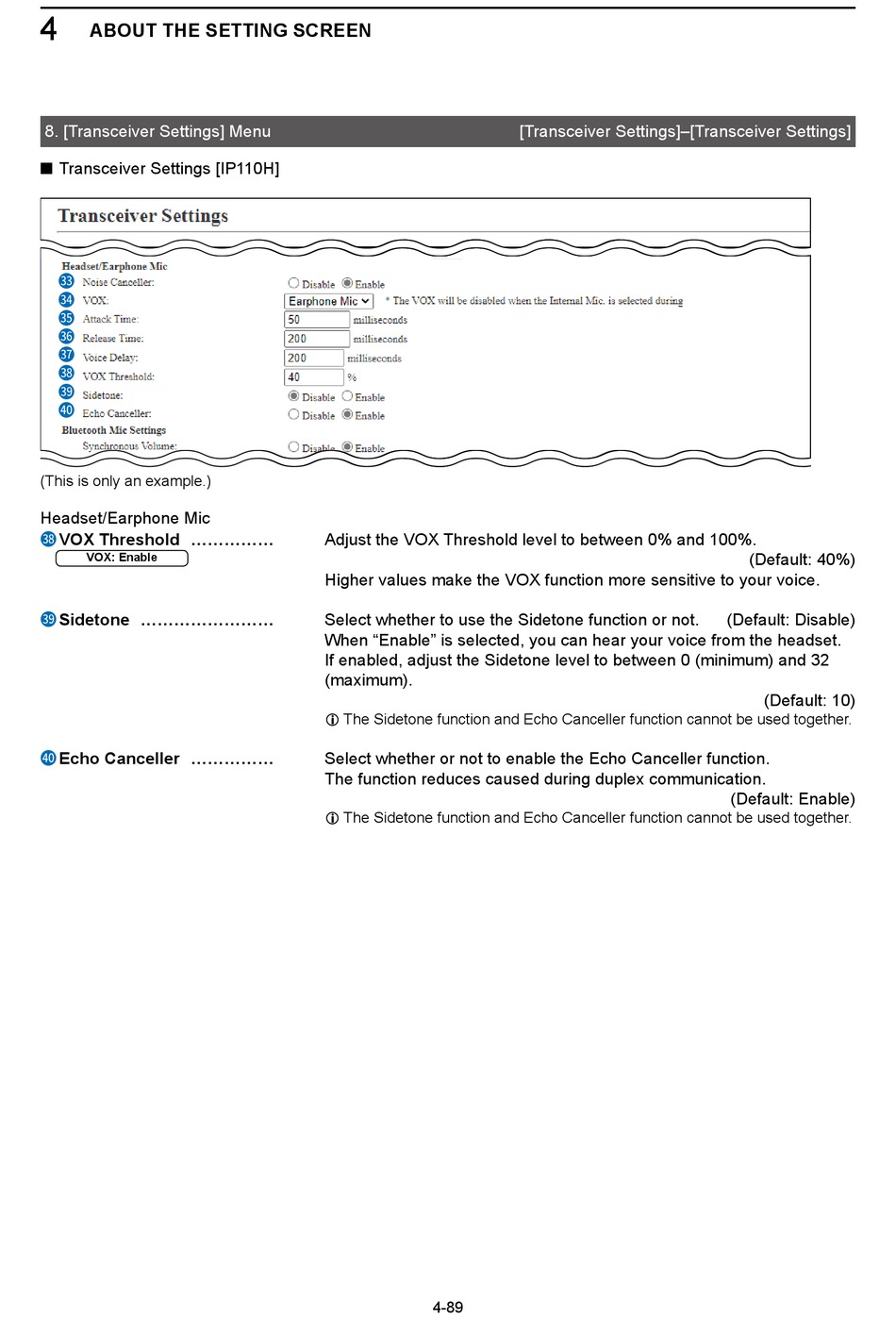

Icom IP1000C Instruction Manual page 142

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP110H]
33
34
35
36
37
38
39
40
(This is only an example.)
Headset/Earphone Mic
VOX Threshold �����
38
VOX: Enable
Sidetone ��������
39
Echo Canceller �����
40
Adjust the VOX Threshold level to between 0% and 100%.
Higher values make the VOX function more sensitive to your voice.
Select whether to use the Sidetone function or not.
When "Enable" is selected, you can hear your voice from the headset.
If enabled, adjust the Sidetone level to between 0 (minimum) and 32
(maximum).
L The Sidetone function and Echo Canceller function cannot be used together.
Select whether or not to enable the Echo Canceller function.
The function reduces caused during duplex communication.
L The Sidetone function and Echo Canceller function cannot be used together.
4-89
[Transceiver Settings]–[Transceiver Settings]
(Default: 40%)
(Default: Disable)
(Default: 10)
(Default: Enable)
