4

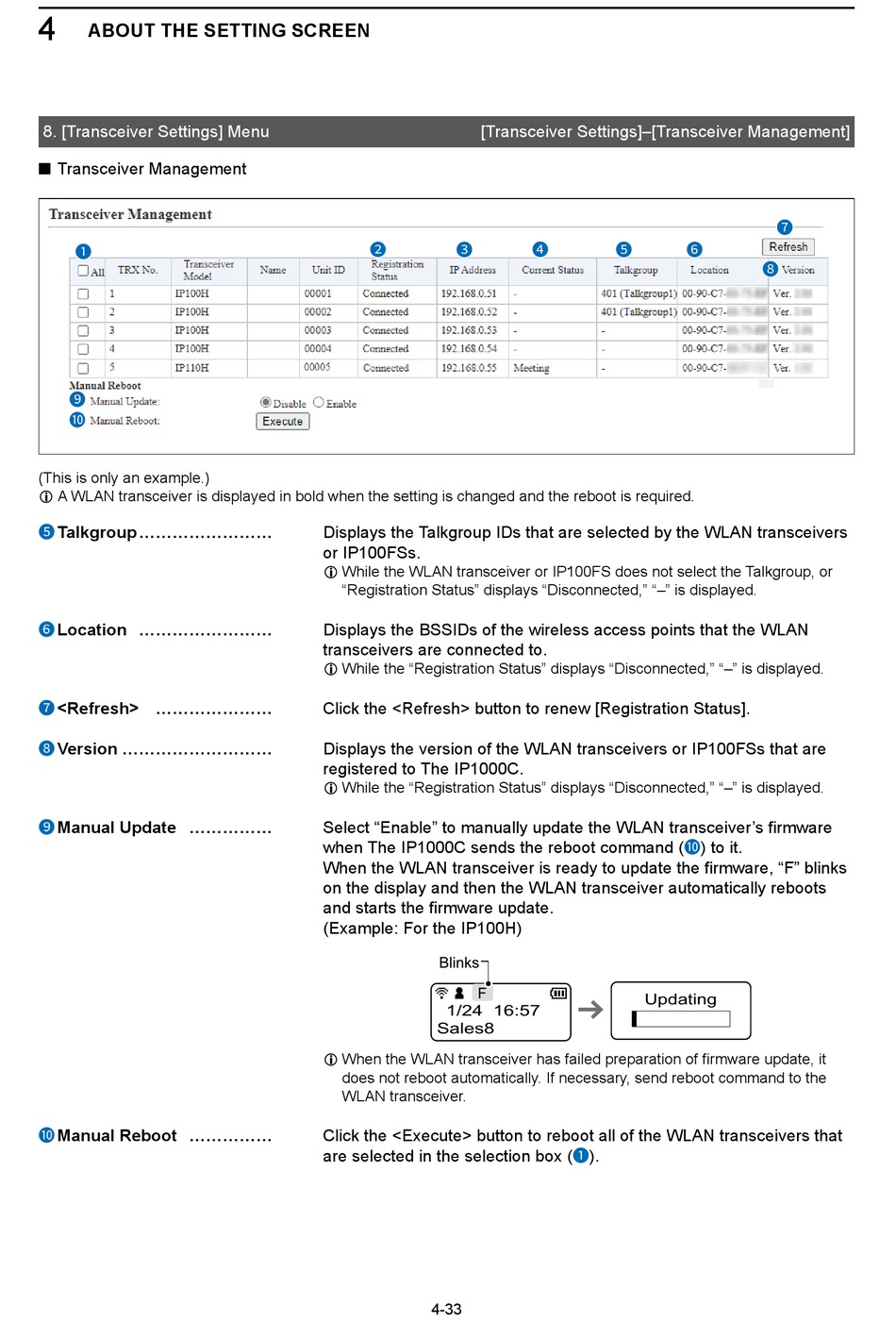

ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Management
1
9
10
(This is only an example.)
L A WLAN transceiver is displayed in bold when the setting is changed and the reboot is required.
Talkgroup ��������
5
Location ��������
6
<Refresh> �������
7
Version ���������
8
Manual Update �����
9
Manual Reboot �����
10
[Transceiver Settings]–[Transceiver Management]
2 3
Displays the Talkgroup IDs that are selected by the WLAN transceivers
or IP100FSs.
L While the WLAN transceiver or IP100FS does not select the Talkgroup, or
"Registration Status" displays "Disconnected," "–" is displayed.
Displays the BSSIDs of the wireless access points that the WLAN
transceivers are connected to.
L While the "Registration Status" displays "Disconnected," "–" is displayed.
Click the <Refresh> button to renew [Registration Status].
Displays the version of the WLAN transceivers or IP100FSs that are
registered to The IP1000C.
L While the "Registration Status" displays "Disconnected," "–" is displayed.
Select "Enable" to manually update the WLAN transceiver's firmware
when The IP1000C sends the reboot command
When the WLAN transceiver is ready to update the firmware, "F" blinks
on the display and then the WLAN transceiver automatically reboots
and starts the firmware update.
(Example: For the IP100H)
Blinks
F
1/24 16:57
Sales8
L When the WLAN transceiver has failed preparation of fi rmware update, it
does not reboot automatically. If necessary, send reboot command to the
WLAN transceiver.
Click the <Execute> button to reboot all of the WLAN transceivers that
are selected in the selection box (1).
4-33
4 5 6
(10 ) to it.
Updating
7
8
