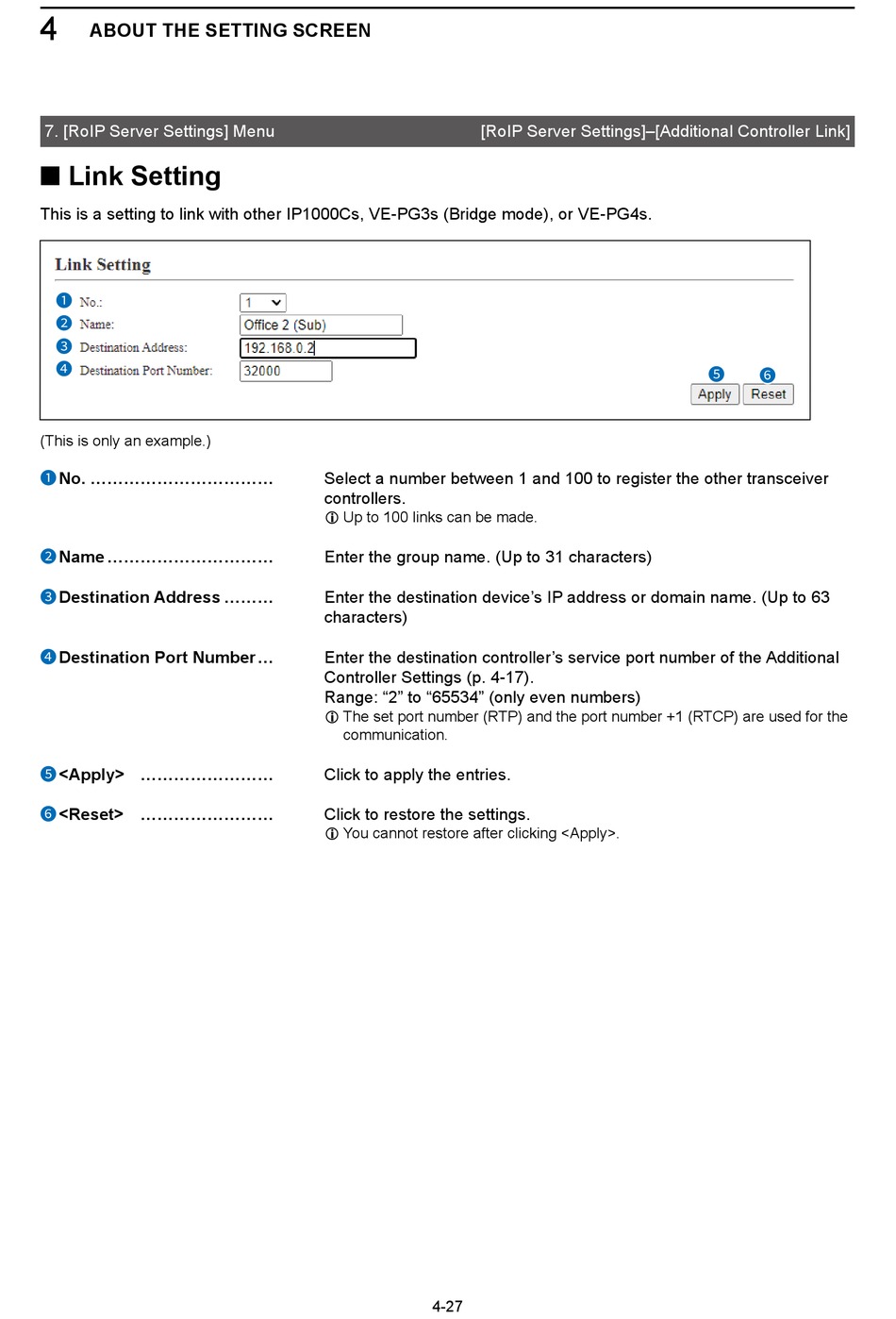

Icom IP1000C Instruction Manual page 80

4
ABOUT THE SETTING SCREEN
7. [RoIP Server Settings] Menu
■ Link Setting
This is a setting to link with other IP1000Cs, VE-PG3s (Bridge mode), or VE-PG4s.
1
2
3
4
(This is only an example.)
No. �����������
1
Name ����������
2
Destination Address ���
3
Destination Port Number �
4
<Apply> ��������
5
<Reset> ��������
6
[RoIP Server Settings]–[Additional Controller Link]
Select a number between 1 and 100 to register the other transceiver
controllers.
L Up to 100 links can be made.
Enter the group name. (Up to 31 characters)
Enter the destination device's IP address or domain name. (Up to 63
characters)
Enter the destination controller's service port number of the Additional
Controller Settings (p. 4-17).
Range: "2" to "65534" (only even numbers)
L The set port number (RTP) and the port number +1 (RTCP) are used for the
communication.
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-27
