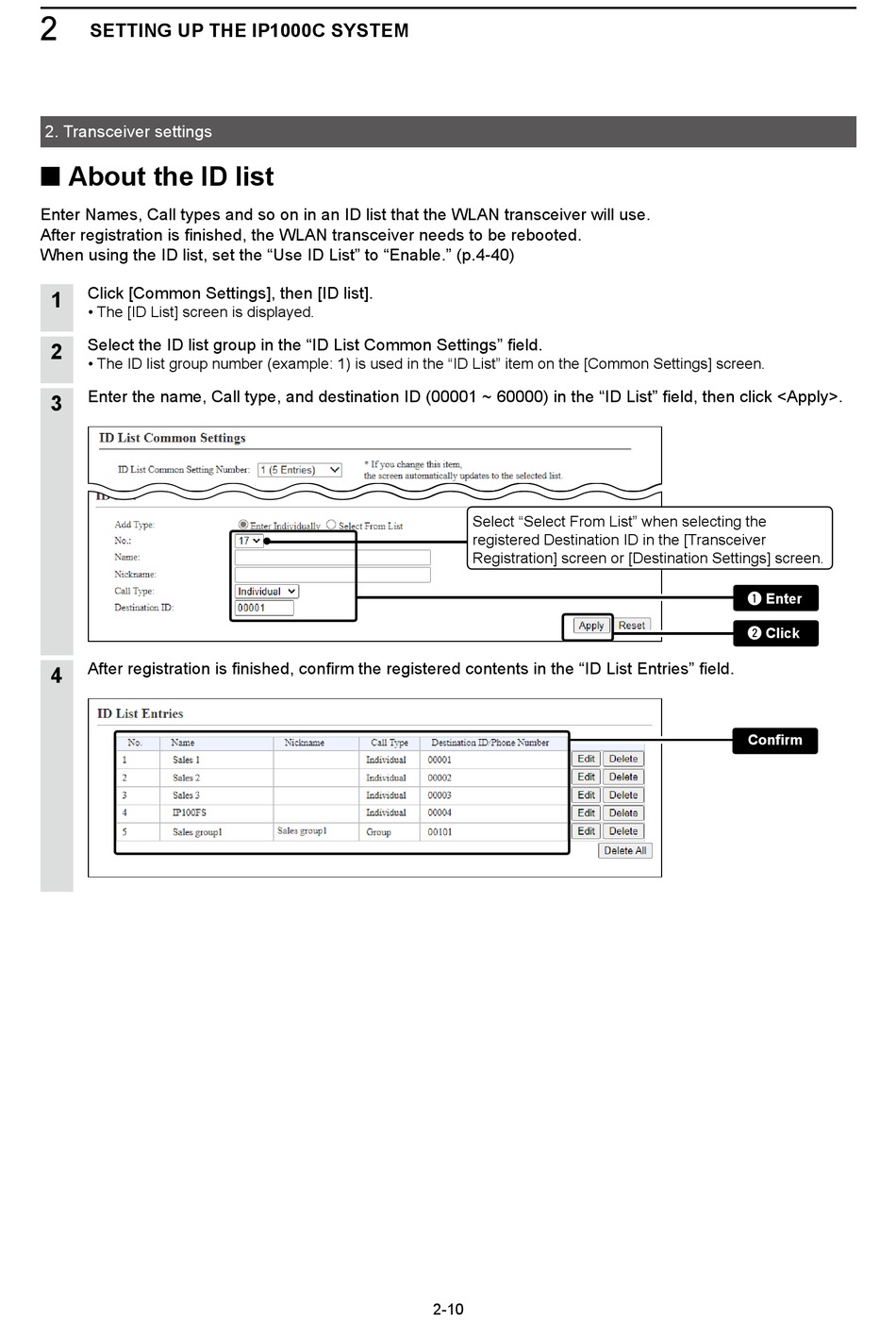

Icom IP1000C Instruction Manual page 29

2
SETTING UP THE IP1000C SYSTEM
2. Transceiver settings
■ About the ID list
Enter Names, Call types and so on in an ID list that the WLAN transceiver will use.
After registration is finished, the WLAN transceiver needs to be rebooted.
When using the ID list, set the "Use ID List" to "Enable." (p.4-40)
Click [Common Settings], then [ID list].
1
• The [ID List] screen is displayed.
Select the ID list group in the "ID List Common Settings" field.
2
• The ID list group number (example: 1) is used in the "ID List" item on the [Common Settings] screen.
Enter the name, Call type, and destination ID (00001 ~ 60000) in the "ID List" field, then click <Apply>.
3
After registration is finished, confirm the registered contents in the "ID List Entries" field.
4
Select "Select From List" when selecting the
registered Destination ID in the [Transceiver
Registration] screen or [Destination Settings] screen.
2-10
q Enter
w Click
Confirm
