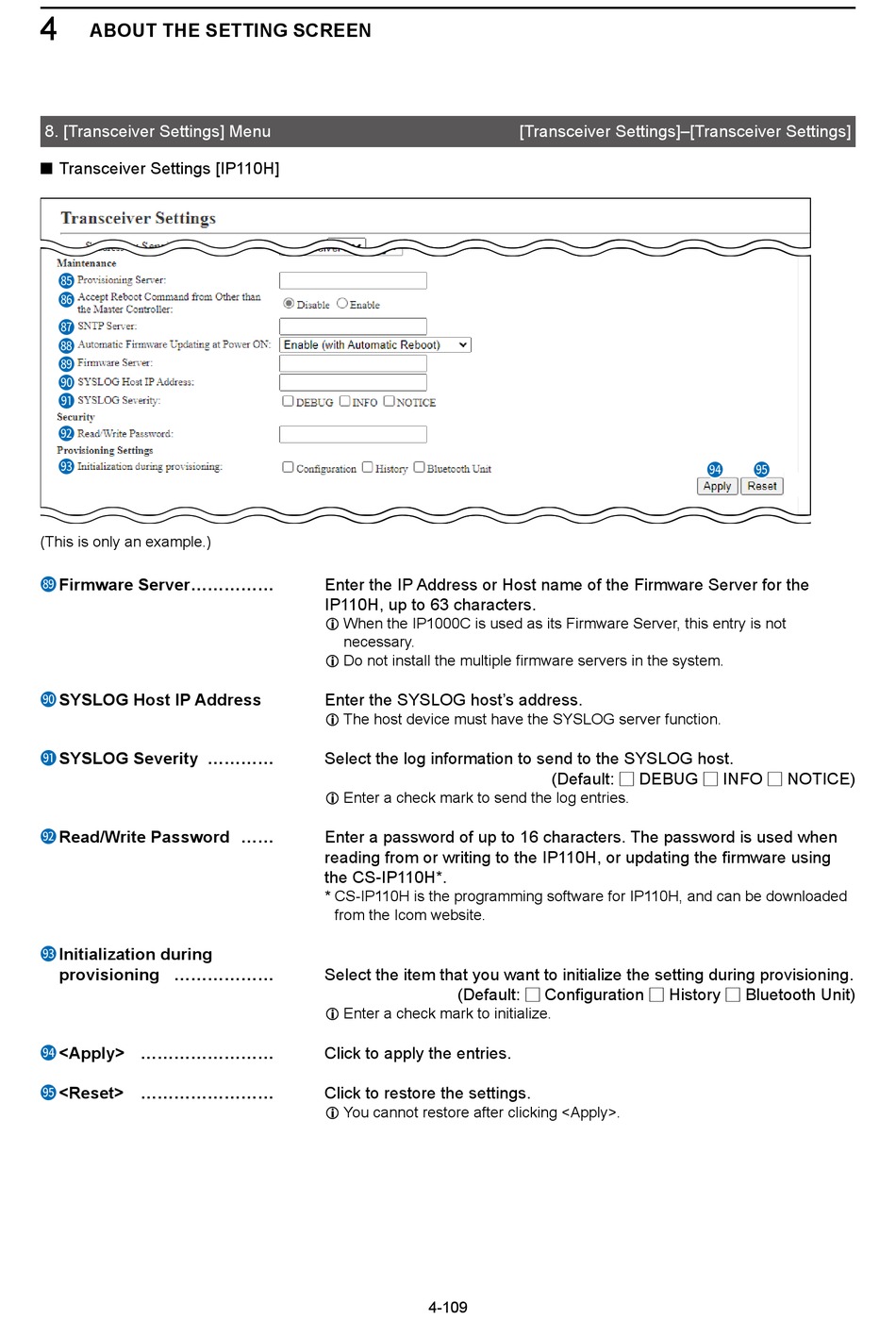

Icom IP1000C Instruction Manual page 162

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP110H]
85
86
87
88
89
90
91
92
93
(This is only an example.)
Firmware Server �����
89
SYSLOG Host IP Address
90
SYSLOG Severity ����
91
Read/Write Password ��
92
Initialization during
93
provisioning ������
<Apply> ��������
94
<Reset> ��������
95
Enter the IP Address or Host name of the Firmware Server for the
IP110H, up to 63 characters.
L When the IP1000C is used as its Firmware Server, this entry is not
necessary.
L Do not install the multiple firmware servers in the system.
Enter the SYSLOG host's address.
L The host device must have the SYSLOG server function.
Select the log information to send to the SYSLOG host.
L Enter a check mark to send the log entries.
Enter a password of up to 16 characters. The password is used when
reading from or writing to the IP110H, or updating the firmware using
the CS-IP110H*.
* CS-IP110H is the programming software for IP110H, and can be downloaded
from the Icom website.
Select the item that you want to initialize the setting during provisioning.
(Default:
L Enter a check mark to initialize.
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-109
[Transceiver Settings]–[Transceiver Settings]
(Default: DEBUG
M
Configuration History
M M
94 95
INFO NOTICE)
M M
Bluetooth Unit)
M
