SETTING UP THE IP1000C SYSTEM
5. Additional controller link with VE-PG3

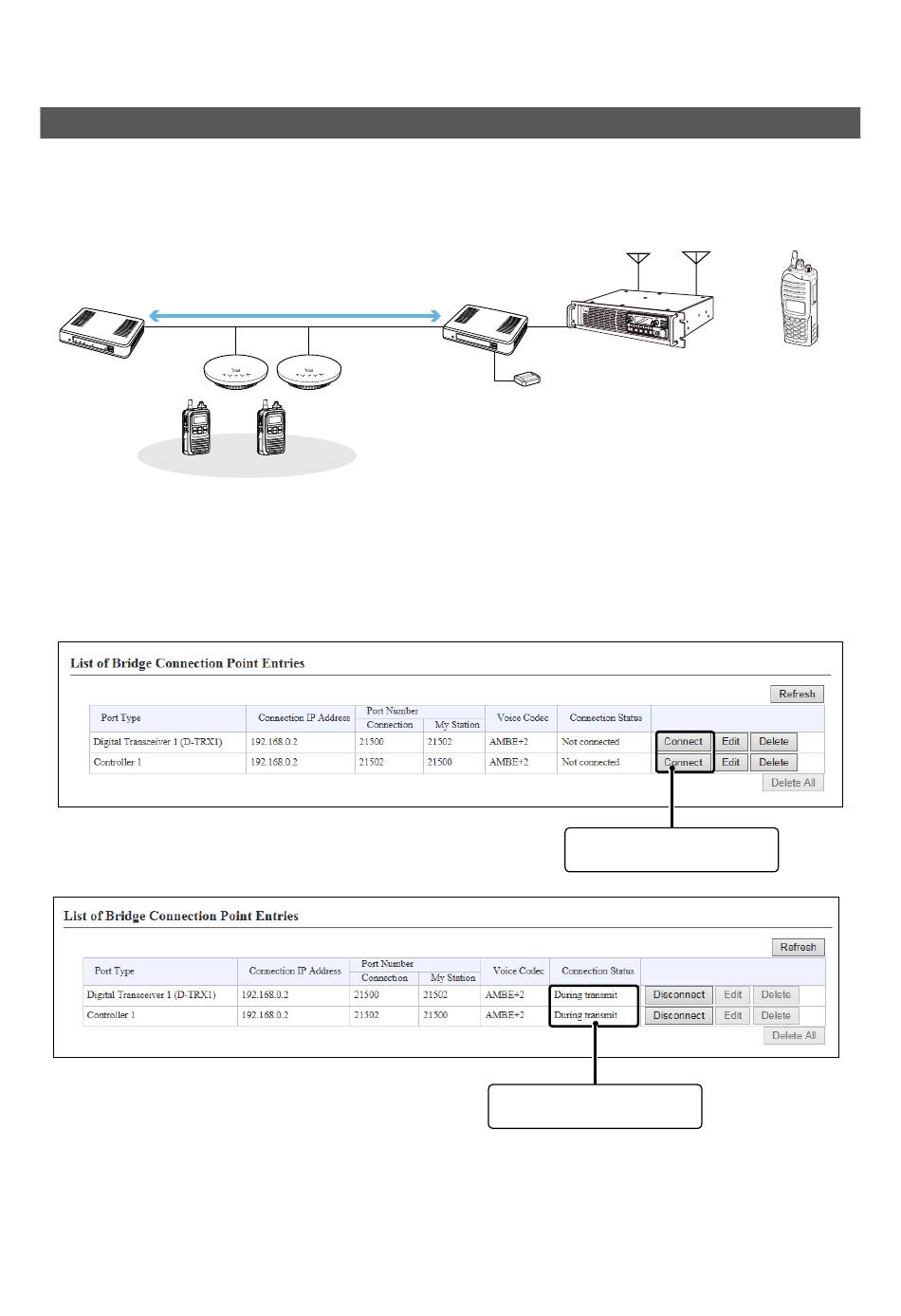

IP100H makes a Group Call with the Additional Controller Link (VE-PG3)
Additional Controller Link
IP1000C
Controller connection
192.168.0.3
(Area B)
IP100H
Sales31
Sales group3
00031
About the VE-PG3 settings (Bridge mode)
4. Confirm Digital Transceiver1 (D-TRX1) port setting, then click <Connect>.
• Confirm "Not connected" changes to "During transmit."
Confirm Controller 1 port setting, then click <Connect>.
• Confirm "Not connected" changes to "During transmit."
VE-PG3
(RoIP Gateway)
Sales32
00032
00301
192.168.0.2
(Area A)
[D-TRX1]
[USB]
CT-24
Port number (Controller 1): 21500
Port number (D-TRX1): 21502
Confirm the setting, then click
<Connect>.
Confirm "Not connected"
changes to "During transmit"
2-28
Repeater A
P 0 P 1
P 2
P 3
P 4
192.168.0.11
Transceiver
