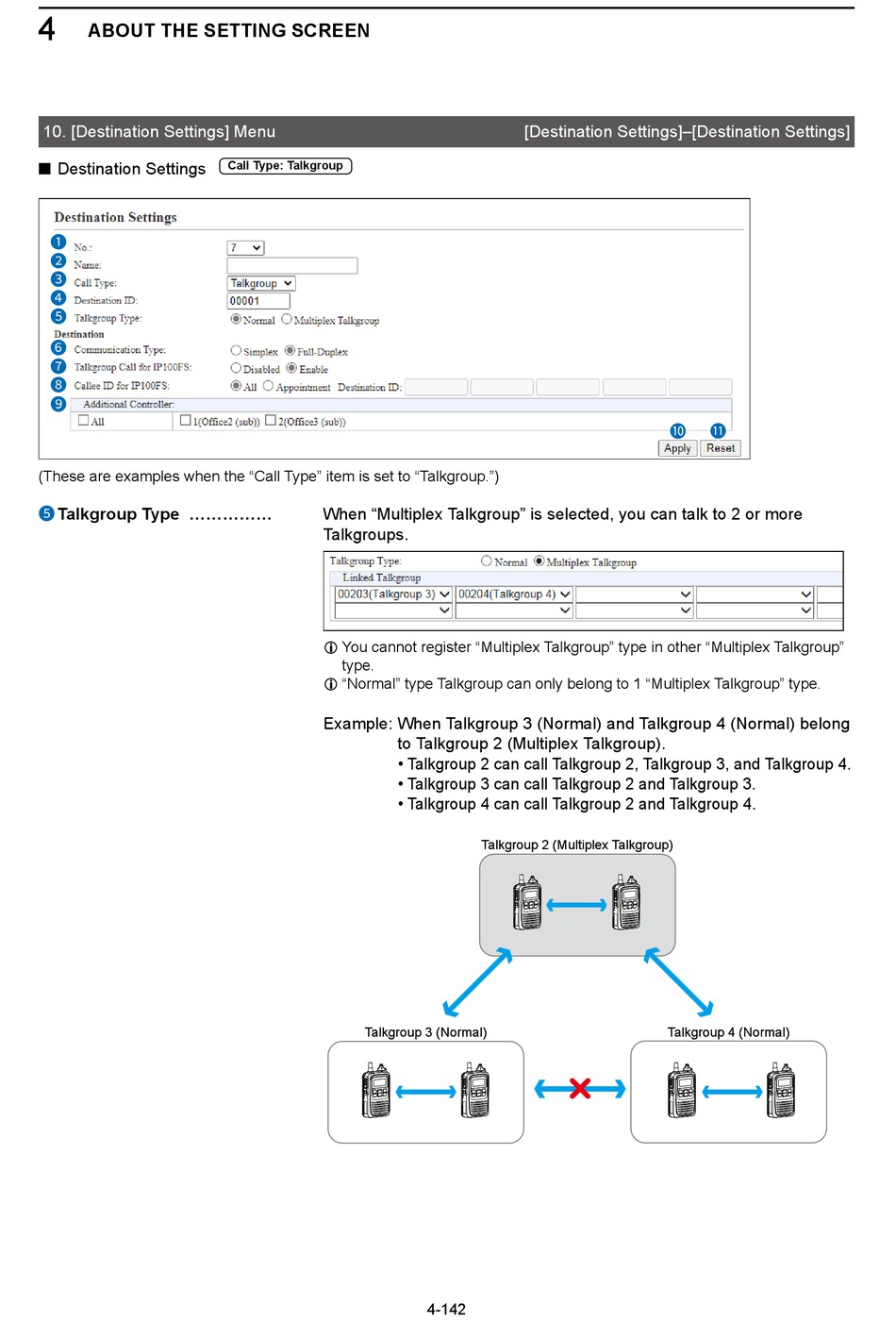

Icom IP1000C Instruction Manual page 195

4
ABOUT THE SETTING SCREEN
10. [Destination Settings] Menu
■ Destination Settings
1
2
3
4
5
6
7
8
9
(These are examples when the "Call Type" item is set to "Talkgroup.")
Talkgroup Type �����
5
Call Type: Talkgroup
When "Multiplex Talkgroup" is selected, you can talk to 2 or more
Talkgroups.
L You cannot register "Multiplex Talkgroup" type in other "Multiplex Talkgroup"
type.
L "Normal" type Talkgroup can only belong to 1 "Multiplex Talkgroup" type.
Example: When Talkgroup 3 (Normal) and Talkgroup 4 (Normal) belong
to Talkgroup 2 (Multiplex Talkgroup).
• Talkgroup 2 can call Talkgroup 2, Talkgroup 3, and Talkgroup 4.
• Talkgroup 3 can call Talkgroup 2 and Talkgroup 3.
• Talkgroup 4 can call Talkgroup 2 and Talkgroup 4.
Talkgroup 3 (Normal) Talkgroup 3 (Normal)
[Destination Settings]–[Destination Settings]
Talkgroup 2 (Multiplex Talkgroup) Talkgroup 2 (Multiplex Talkgroup)
4-142
10 11
Talkgroup 4 (Normal) Talkgroup 4 (Normal)
