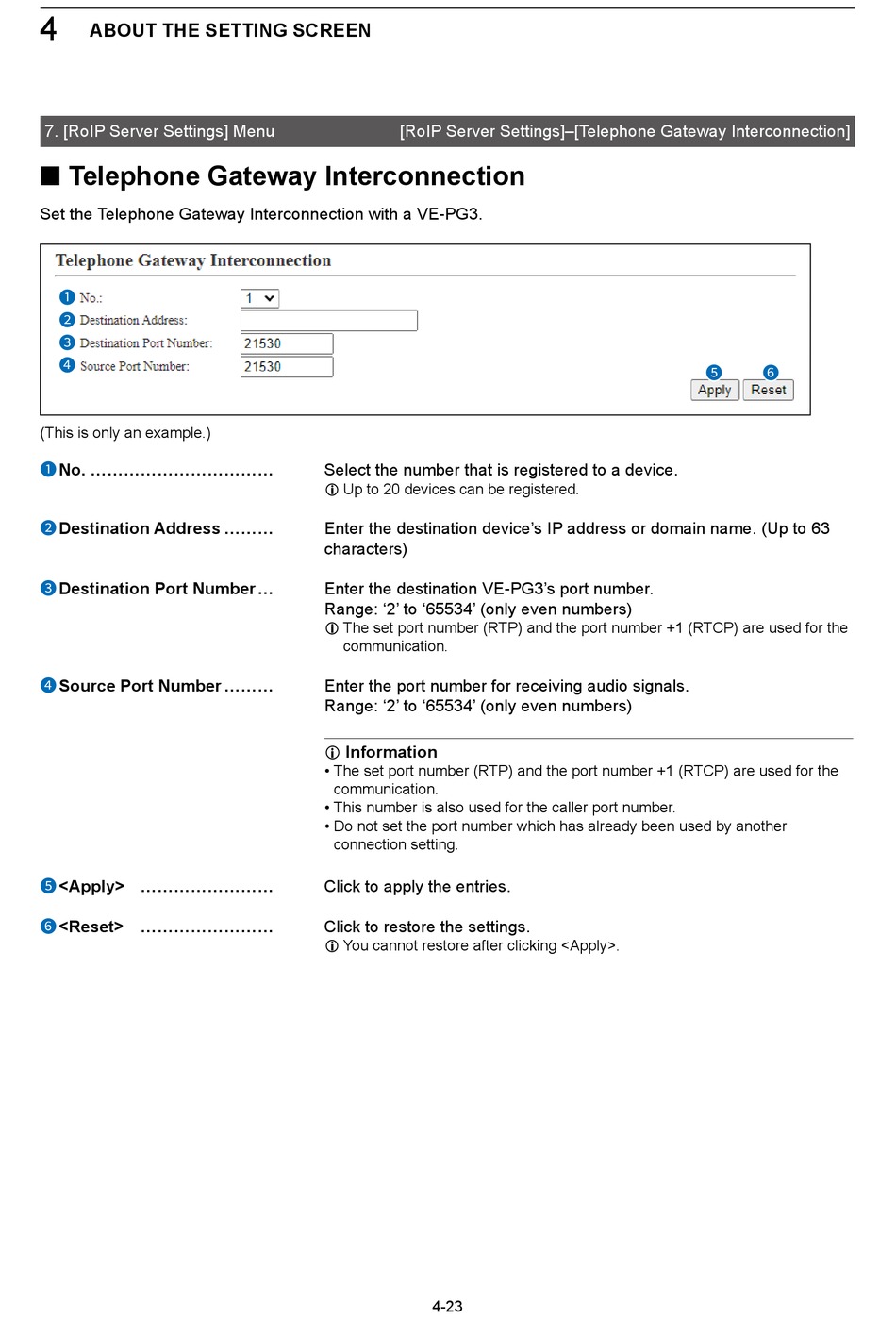

Icom IP1000C Instruction Manual page 76

4
ABOUT THE SETTING SCREEN
7. [RoIP Server Settings] Menu
■ Telephone Gateway Interconnection
Set the Telephone Gateway Interconnection with a VE-PG3.
1
2
3
4
(This is only an example.)
No. �����������
1
Destination Address ���
2
Destination Port Number �
3
Source Port Number ���
4
<Apply> ��������
5
<Reset> ��������
6
[RoIP Server Settings]–[Telephone Gateway Interconnection]
Select the number that is registered to a device.
L Up to 20 devices can be registered.
Enter the destination device's IP address or domain name. (Up to 63
characters)
Enter the destination VE-PG3's port number.
Range: '2' to '65534' (only even numbers)
L The set port number (RTP) and the port number +1 (RTCP) are used for the
communication.
Enter the port number for receiving audio signals.
Range: '2' to '65534' (only even numbers)
Information
L
• The set port number (RTP) and the port number +1 (RTCP) are used for the
communication.
• This number is also used for the caller port number.
• Do not set the port number which has already been used by another
connection setting.
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-23
