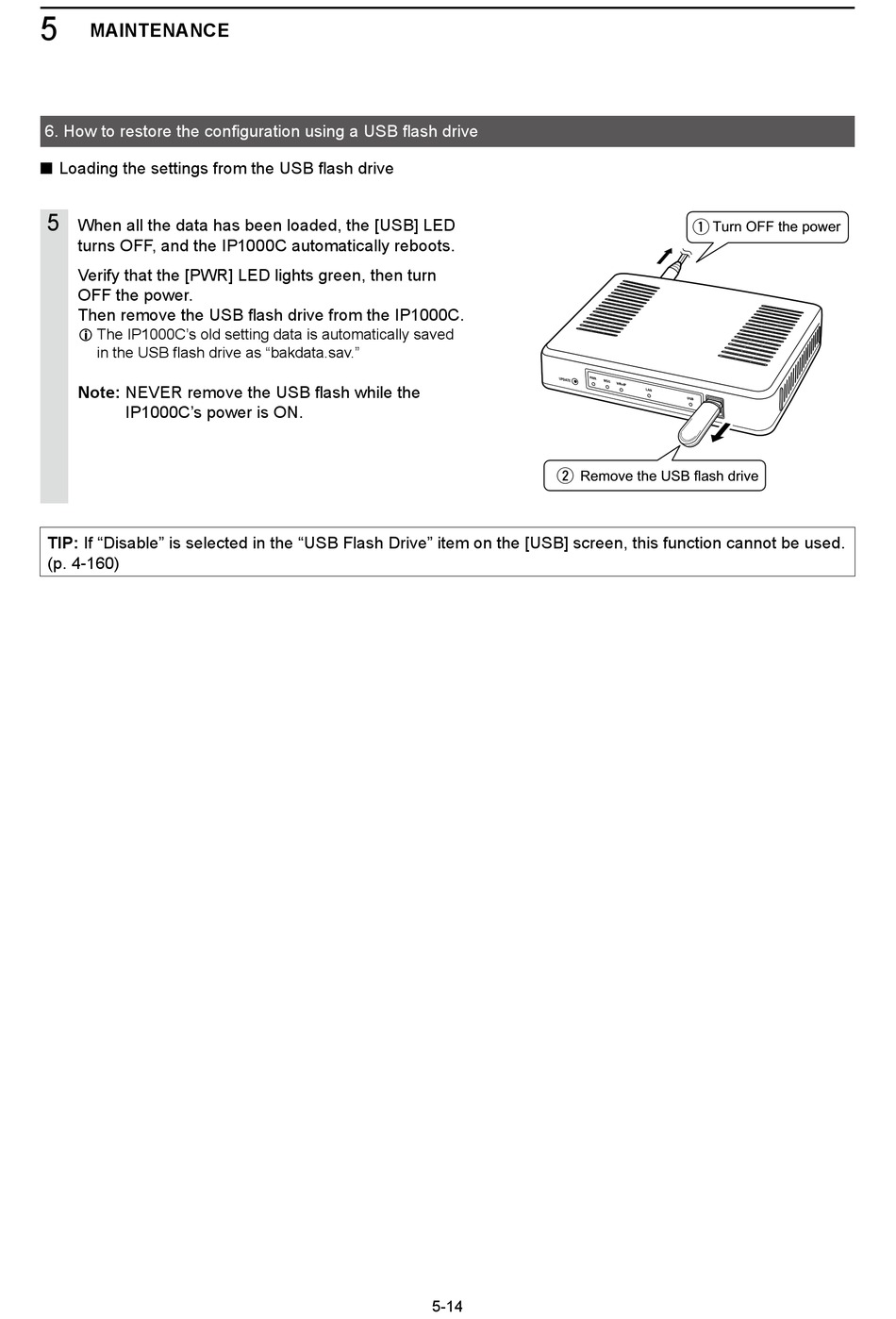

Icom IP1000C Instruction Manual page 238

5
MAINTENANCE
6. How to restore the configuration using a USB flash drive
■ Loading the settings from the USB flash drive
5
When all the data has been loaded, the [USB] LED
turns OFF, and the IP1000C automatically reboots.
Verify that the [PWR] LED lights green, then turn
OFF the power.
Then remove the USB flash drive from the IP1000C.
L The IP1000C's old setting data is automatically saved
in the USB flash drive as "bakdata.sav."
Note: NEVER remove the USB flash while the
IP1000C's power is ON.
TIP: If "Disable" is selected in the "USB Flash Drive" item on the [USB] screen, this function cannot be used.
(p. 4-160)
Remove the USB flash drive
w
5-14
Turn OFF the power
q
