Icom IP1000C Instruction Manual page 26

2
SETTING UP THE IP1000C SYSTEM
2. Transceiver settings

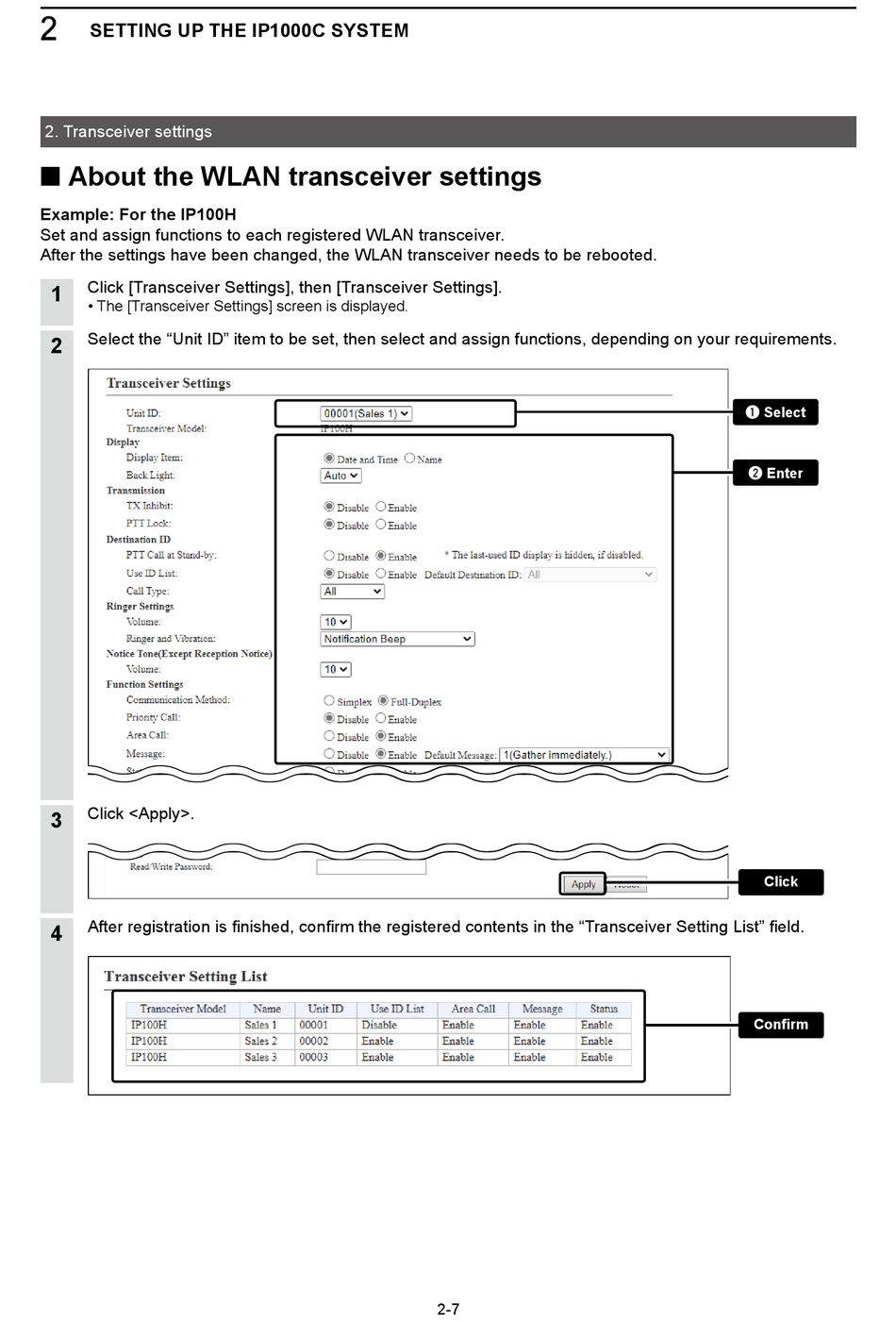

■ About the WLAN transceiver settings
Example: For the IP100H
Set and assign functions to each registered WLAN transceiver.
After the settings have been changed, the WLAN transceiver needs to be rebooted.
Click [Transceiver Settings], then [Transceiver Settings].
1
• The [Transceiver Settings] screen is displayed.
Select the "Unit ID" item to be set, then select and assign functions, depending on your requirements.
2
Click <Apply>.
3
After registration is finished, confirm the registered contents in the "Transceiver Setting List" field.
4
2-7
q Select
w Enter
Click
Confirm
