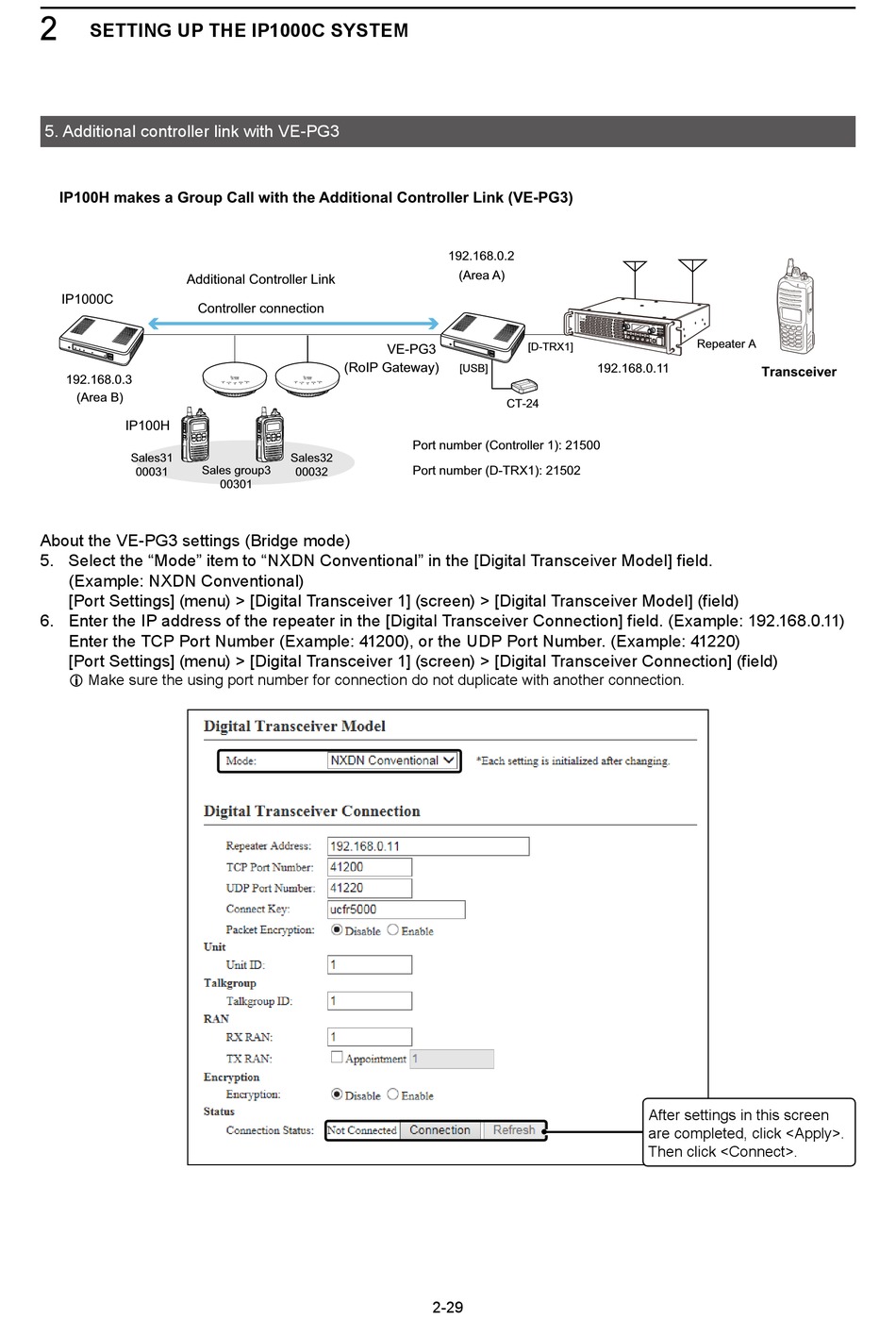

SETTING UP THE IP1000C SYSTEM
5. Additional controller link with VE-PG3
IP100H makes a Group Call with the Additional Controller Link (VE-PG3)
Additional Controller Link
IP1000C
Controller connection
192.168.0.3
(Area B)
IP100H
Sales31
Sales group3
00031
About the VE-PG3 settings (Bridge mode)
5. Select the "Mode" item to "NXDN Conventional" in the [Digital Transceiver Model] field.
(Example: NXDN Conventional)
[Port Settings] (menu) > [Digital Transceiver 1] (screen) > [Digital Transceiver Model] (field)
6. Enter the IP address of the repeater in the [Digital Transceiver Connection] field. (Example: 192.168.0.11)
Enter the TCP Port Number (Example: 41200), or the UDP Port Number. (Example: 41220)
[Port Settings] (menu) > [Digital Transceiver 1] (screen) > [Digital Transceiver Connection] (field)
L Make sure the using port number for connection do not duplicate with another connection.
VE-PG3
(RoIP Gateway)
Sales32
00032
00301
192.168.0.2
(Area A)
[D-TRX1]
[USB]
CT-24
Port number (Controller 1): 21500
Port number (D-TRX1): 21502
2-29
Repeater A
P 0 P 1
P 2
P 3
P 4
192.168.0.11
Transceiver
After settings in this screen
are completed, click <Apply>.
Then click <Connect>.
