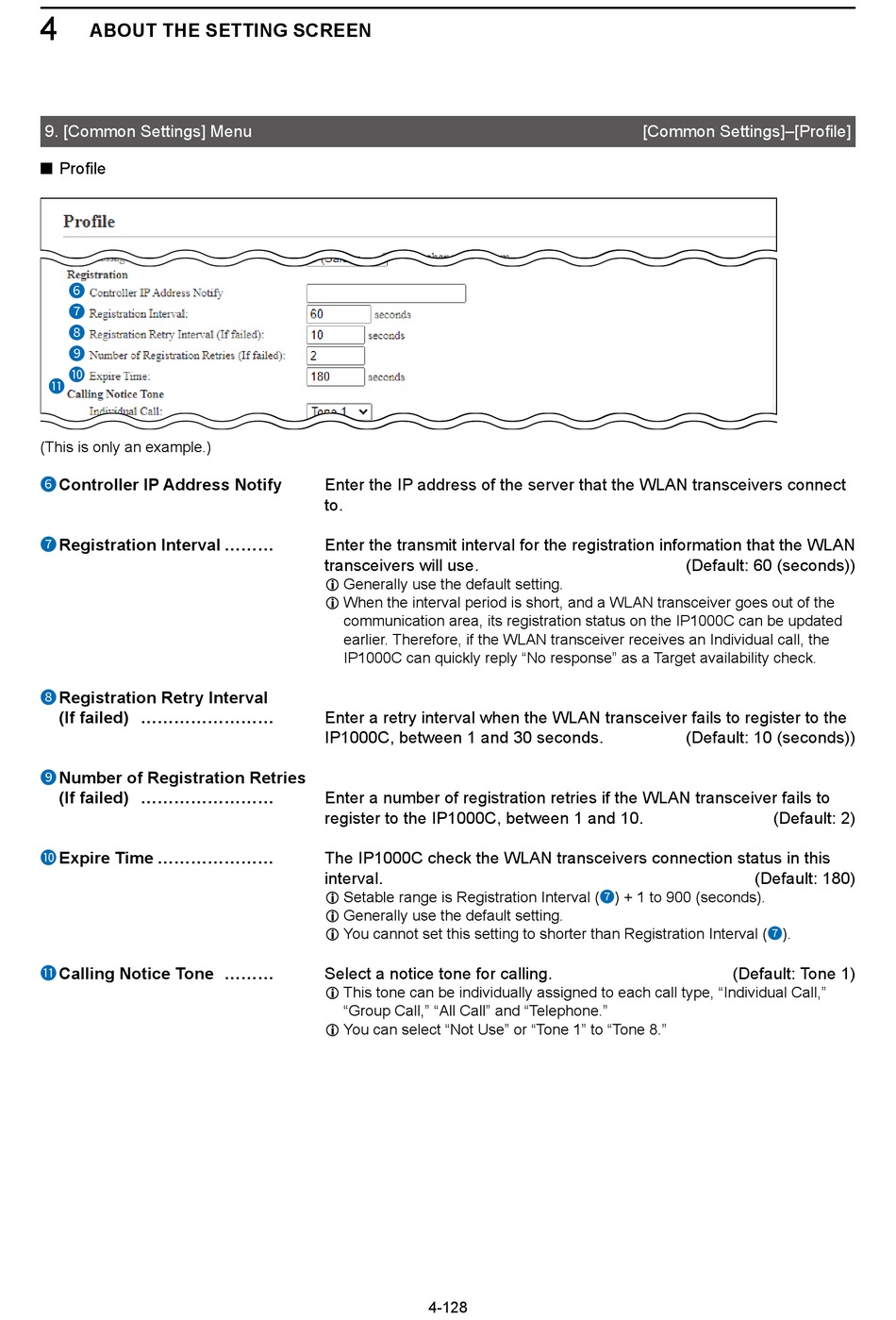

Icom IP1000C Instruction Manual page 181

4
ABOUT THE SETTING SCREEN
9. [Common Settings] Menu
■ Profile
6
7
8
9
10
11
(This is only an example.)
Controller IP Address Notiny
6
Registration Interval ���
7
Registration Retry Interval
8
(In nailed) ��������
Number on Registration Retries
9
(In nailed) ��������
Expire Time �������
10
Calling Notice Tone ���
11
Enter the IP address of the server that the WLAN transceivers connect
to.
Enter the transmit interval for the registration information that the WLAN
transceivers will use.
L Generally use the default setting.
L When the interval period is short, and a WLAN transceiver goes out of the
communication area, its registration status on the IP1000C can be updated
earlier. Therefore, if the WLAN transceiver receives an Individual call, the
IP1000C can quickly reply "No response" as a Target availability check.
Enter a retry interval when the WLAN transceiver fails to register to the
IP1000C, between 1 and 30 seconds.
Enter a number of registration retries if the WLAN transceiver fails to
register to the IP1000C, between 1 and 10.
The IP1000C check the WLAN transceivers connection status in this
interval.
L Setable range is Registration Interval (7) + 1 to 900 (seconds).
L Generally use the default setting.
L You cannot set this setting to shorter than Registration Interval (7).
Select a notice tone for calling.
L This tone can be individually assigned to each call type, "Individual Call,"
"Group Call," "All Call" and "Telephone."
L You can select "Not Use" or "Tone 1" to "Tone 8."
4-128
[Common Settings]–[Profile]
(Default: 60 (seconds))
(Default: 10 (seconds))
(Default: 2)
(Default: 180)
(Default: Tone 1)
