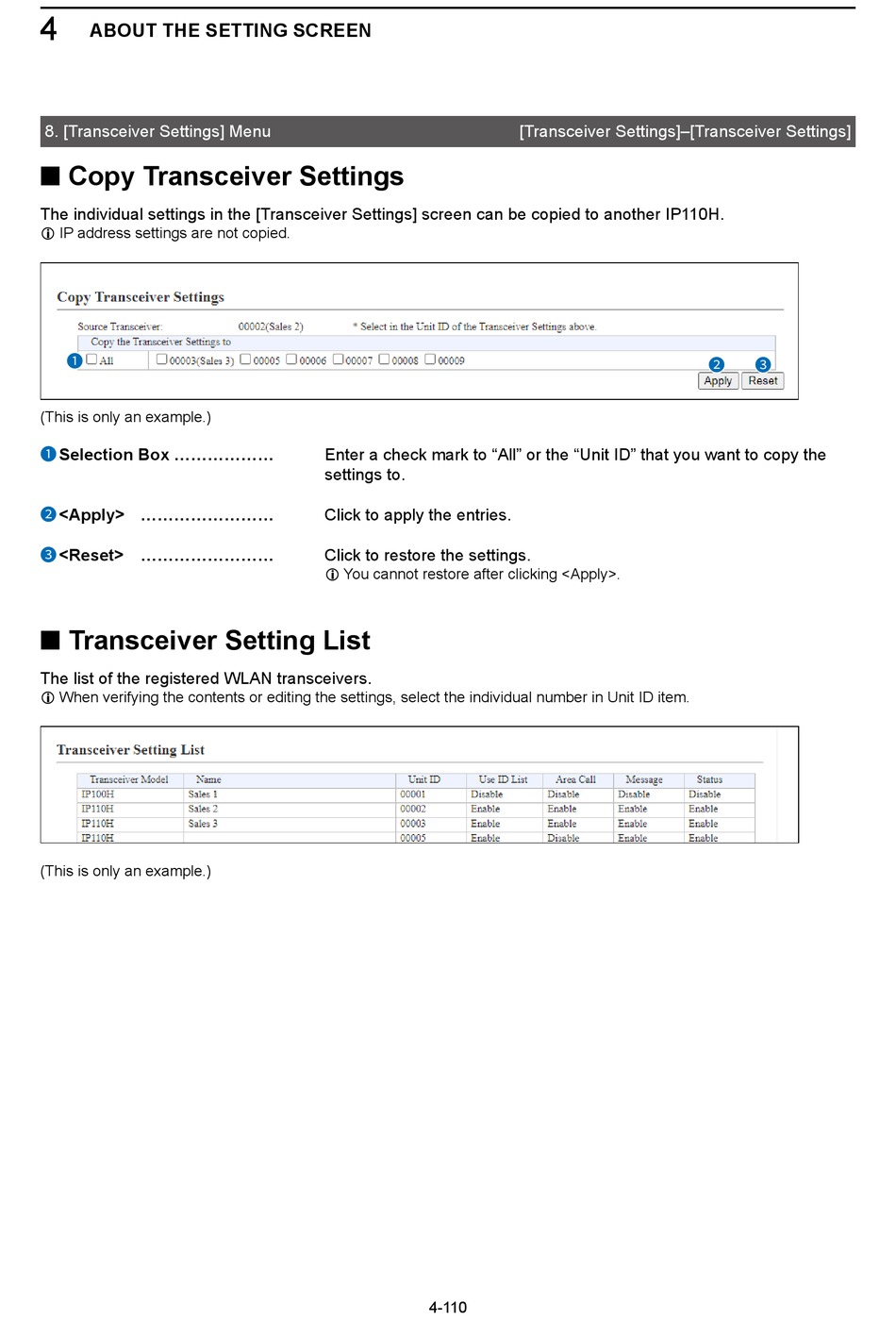

Icom IP1000C Instruction Manual page 163

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Copy Transceiver Settings
The individual settings in the [Transceiver Settings] screen can be copied to another IP110H.
L IP address settings are not copied.
1
(This is only an example.)
Selection Box ������
1
<Apply> ��������
2
<Reset> ��������
3
■ Transceiver Setting List
The list of the registered WLAN transceivers.
L When verifying the contents or editing the settings, select the individual number in Unit ID item.
(This is only an example.)
Enter a check mark to "All" or the "Unit ID" that you want to copy the
settings to.
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-110
[Transceiver Settings]–[Transceiver Settings]
2 3
