Page 1 INSTRUCTION MANUAL IP ADVANCED RADIO SYSTEM INTRODUCTION CONTROLLER IP1000C 1 BEFORE USING THE IP1000C 2 SETTING UP THE IP1000C SYSTEM 3 OTHER BASIC FUNCTIONS 4 ABOUT THE SETTING SCREEN 5 MAINTENANCE 6 FOR YOUR INFORMATION...
Page 2 All stated specifications and design are subject to change without notice or obligation. Icom and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand, and/or other countries.
Page 3 • The Area Calls can be operated by limiting to a certain area. • If you connect with Icom’s VE-PG3 (ver. 1.13 or later), you will be able to communicate with certain types of Icom transceivers. Also If you connect in bridge port with Icom’s VE-PG3 (ver. 1.03 or later), you will be able to communicate using the VoIP router, which enables you make extension phone calls and outline phone calls.
Page 4 Approved Icom optional equipment is designed for optimal performance when used with an Icom transceiver. Icom is not responsible for the destruction or damage to an Icom device in the event the Icom device is used with equipment that is not manufactured or approved by Icom.
Page 5 INTRODUCTION SETTING PROCEDURE Set up the IP1000C, following the procedure below. CONNECTION GUIDE Connect to a PC and turn ON the power Step.1 ▼ Access the setting screen CONNECTION GUIDE/Section 2 Step.2 ▼ Configuring the network connection pp. 4-11, 4-12 Step.3...
Page 6 BEFORE USING THE IP1000C Section 1. Panel description …………………………………………………………………………………………………… 1-2 M Front panel ……………………………………………………………………………………………………… 1-2 M Rear panel ……………………………………………………………………………………………………… 1-4 2. Feature description ………………………………………………………………………………………………… 1-5 M About the basic connection …………………………………………………………………………………… 1-5 M Connecting transceivers ………………………………………………………………………………………… 1-6 M Connecting a telephone and transceivers …………………………………………………………………… 1-6 M Simplex and Full-Duplex ………………………………………………………………………………………...
Page 7 BEFORE USING THE IP1000C 1. Panel description ■ Front panel 2 3 4 [UPDATE] button �� When [MSG] lights green, a firmware update is ready. To download and install the new firmware, hold down this button until [MSG] blinks. • To use the Firmware Update function, an internet connection, DNS and default gateway settings are necessary.
Page 8 BEFORE USING THE IP1000C 1. Panel description ■ Front panel 2 3 4 [USB] �� Not lit: A USB flash drive is not inserted. Lights green: Inserting an USB flash drive. Blinks green: Accessing the USB flash drive* Blinks orange: Accessing the USB flash drive* While accessing (resetting or firmware updating) the USB flash drive, this LED alternately blinks green and orange.
Page 9 1000BASE-T Orange: 10BASE-T/100BASE-TX [INIT] button �� If you forget its IP address and you cannot access to the IP1000C setting screen, you can initialize (reset) the IP1000C by pushing [INIT] on the rear panel. (p. 5-4) • Seethe“PRECAUTIONS”leafletfordetails. • Initializing resets all settings to the factory defaults.
Page 10 BEFORE USING THE IP1000C 2. Feature description ■ About the basic connection The IP1000C enables you to communicate through IP networks by using the IP1000C as a Controller for the WLAN transceivers. • A wireless access point is required • As of June 2023, the IP100H, IP110H, and IP100FS are available for the IP1000C client.
Page 11 ■ Connecting a telephone and transceivers If you connect in bridge connection with Icom’s VE-PG3 (ver. 1.13 or later), you will be able to communicate with certain types of our transceivers and also, using the VoIP router enables you make extension phone calls and outline phone calls.
Page 12 2. Feature description ■ Simplex and Full-Duplex The IP1000C has two methods of communications (Simplex and Full-Duplex.) The Simplex is for communications where receptions and transmissions are done alternately one by one, and the Full-Duplex is for simultaneous receptions and transmissions as a telephone call.
Page 13 • It is required to divide the registered WLAN transceivers and IP100FS in the [Transceiver Registration] screen into groups in the [Destination Settings] screen. • The ID List and the destination settings set in the IP1000C are commonly used in each group that the WLAN transceivers and IP100FS belong to.
Page 14 Talkgroup Call between the linked talkgroups. • Set to the IP1000C whether All Call includes the Talkgroup or not, or the Talkgroup Call calls the IP100FS or not. • The ID List and the destination settings set in the IP1000C are commonly used in each group that the WLAN transceivers...
Page 15 BEFORE USING THE IP1000C 2. Feature description ■ Individual Call Individual Call is when you talk to a desired transceiver 1 on 1. When an individual call is made, the WLAN transceiver displays the connection result. (Connected, Busy, or No response) •...
Page 16 BEFORE USING THE IP1000C 2. Feature description ■ Priority Call and its priority The Priority Call function is set to “Disable” in the default setting. The priority levels of the Call types are in the following order. Priority level Priority...
Page 17 BEFORE USING THE IP1000C 2. Feature description ■ Area Call This function is used when operating by limiting to a certain area. (Default: Disable) If you make an All Call or Group Call when Area Call in the WLAN transceiver is set to ON, the WLAN transceiver and IP100FS that are in the same area with the WLAN transceiver connected to the wireless access point are called.
Page 18 • To use this function, requires to enable the [Message] item in the [Transceiver Settings] screen for each WLAN transceiver. • The messages that are registered to the IP1000C are commonly used by the WLAN transceivers that belong to the setting group.
Page 19 BEFORE USING THE IP1000C 2. Feature description ■ About Status Settings Set the Status to send the status information (Example: Away from the desk) from the WLAN transceiver. (Default: Disable) • The status information of up to 32 characters can be programmed in the [Status] screen on the [Common Settings] menu.
Page 20 SETTING UP THE IP1000C SYSTEM Section 1. Flow using the WLAN transceiver ………………………………………………………………………………… 2-2 M Prepare for connection and settings ………………………………………………………………………… 2-2 M About the Setting procedures ………………………………………………………………………………… 2-2 2. Transceiver settings………………………………………………………………………………………………… 2-4 M Registering the terminals ……………………………………………………………………………………… 2-5 M Confirming the registration and rebooting the WLAN transceiver ………………………………………… 2-6 M About the WLAN transceiver settings …………………………………………………………………………...
Page 21 This is an explanation of the flow from connecting with PC to accessing to the Setting screen. 1. Connect to a PC and turn ON the power See the CONNECTION GUIDE (Separated) for details Connect a PC to the IP1000C’s [LAN] port, and insert the power cable into the [DC] jack. Connect to a PC IP1000C Power cable 2.
Page 22 Register the unit IDs that are registered on the [Transceiver Registration] screen or the group IDs that are registered on the [Destination Settings] screen. L When an IP1000C’s bridge connection is made with a VE-PG3, you can register the telephone number of the IP phone. [Message] screen Enter messages that the WLAN transceivers will send.
Page 23 Settings] screen, set common settings, such as the various notice tones, talkback settings on the [Common Settings] screen. About updating setup If the IP1000C’s setup has been changed, be sure to reboot the WLAN transceiver to read its setting. 2. Transceiver settings Each terminal requires that you set the unit ID and so on.
Page 24 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ Registering the terminals Set the Unit ID (Individual number) to register each WLAN transceiver or IP100FS. Click [Transceiver Settings], then [Transceiver Registration]. • The [Transceiver Registration] screen is displayed. Enter the “Transceiver Model,” “Name” and “Unit ID” items in the “Transceiver Settings” field, and then click <Add>.
Page 25 After that, reboot the IP100H and it will automatically read the contents of the IP1000C’s setting. • The CS-IP100H is a freeware that can be downloaded from the Icom website. • If the IP100H will not display the standby screen, check the settings of the IP1000C and the wireless access point. IP100H...
Page 26 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About the WLAN transceiver settings Example: For the IP100H Set and assign functions to each registered WLAN transceiver. After the settings have been changed, the WLAN transceiver needs to be rebooted.
Page 27 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About the Group calls This topic describes registering WLAN transceivers or IP100FSs to a group, and they communicate with the full-duplex operation between three or more members as meeting. After the settings have been changed, the WLAN transceiver needs to be rebooted.
Page 28 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About the Talkgroup calls This topic describes registering WLAN transceivers or IP100FSs to a Talkgroup, and they communicate with the full-duplex operation between three or more members as meeting. The Talkgroup Call function allows user to select the group that belong to it from previously registered groups in the IP1000C.
Page 29 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About the ID list Enter Names, Call types and so on in an ID list that the WLAN transceiver will use. After registration is finished, the WLAN transceiver needs to be rebooted.
Page 30 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About messages Enter messages that the WLAN transceivers will transmit. After registration is finished, the WLAN transceiver needs to be rebooted. When using the Message, set the “Message” to “Enable.” (p.4-45) Click [Common Settings], then [Messages].
Page 31 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About the status settings Enter the status that the WLAN transceiver will transmit. After registration is finished, the WLAN transceiver needs to be rebooted. When using the Status, set the “Status” to “Enable.” (p.4-46) Click [Common Settings], then [Status].
Page 32 SETTING UP THE IP1000C SYSTEM 2. Transceiver settings ■ About commonly use the ID list and message in the group Specify the ID and message lists of the group that the WLAN transceiver belongs to. After registration is finished, the WLAN transceiver needs to be rebooted.
Page 33 SETTING UP THE IP1000C SYSTEM 3. Bridge connection and Caller settings When making a bridge connection with a VE-PG3*, the IP1000C system can communicate with the transceivers. * A VE-PG3 with a firmware version 1.13 or less cannot communicate with the IP1000C system.
Page 34 SETTING UP THE IP1000C SYSTEM 3. Bridge connection and Caller settings Bridge connection Extension number 2001 VE-PG3 (RoIP Gateway) IP1000C 192.168.0.2 192.168.0.1 Wireless access point IP phone IP100H Extension number 500 Sales2 Sales1 00002 Seles group1 00001 00011 About the IP1000C settings 4.
Page 35 00011 About the VE-PG3 settings (Converter mode) 1. Enter the IP address of the IP1000C in the [Bridge Connection] field. (Example: 192.168.0.1) Select the Voice Cording. (Example: G.711u Signaling) [Port Settings] (menu) > [Bridge] (screen) (Example: Bridge1) > [Bridge Connection] (field) L Make sure the using port number for connection do not duplicate with another connection.
Page 36 SETTING UP THE IP1000C SYSTEM 3. Bridge connection and Caller settings Bridge connection Extension number 2001 VE-PG3 (RoIP Gateway) IP1000C 192.168.0.2 192.168.0.1 Wireless access point IP phone IP100H Extension number 500 Sales2 Sales1 00002 Seles group1 00001 00011 About the VE-PG3 settings (Converter mode) 4.
Page 37 4. Additional controller link The Additional Controller Link function allows you to communicate another sites. L Up to 10 sub IP1000Cs can be connected to a master IP1000C. L Use a VPN router, such as Icom’s SR-VPN1, between sites if necessary.
Page 38 SETTING UP THE IP1000C SYSTEM 4. Additional controller link IP100H makes a Group Call with the Additional Controller Link IP1000C 192.168.0.1 Wireless Office1 (Master) access point Additional Controller Link Sales1 Sales2 Sales group1 00001 00002 00101 192.168.0.2 192.168.0.3 Office2 (Sub)
Page 39 Example: Calling Sales group 2 (00201) 1. Select “Enable” in the [Additional Controller] item, and “Sub” in the [Controller Mode] item. Then click <reboot> to reboot the IP1000C. [RoIP Settings] (menu) > [RoIP Settings] (screen) > [Additional Controller Settings] (field) 2.
Page 40 SETTING UP THE IP1000C SYSTEM 4. Additional controller link IP100H makes a Group Call with the Additional Controller Link IP1000C 192.168.0.1 Wireless Office1 (Master) access point Additional Controller Link Sales1 Sales2 Sales group1 00001 00002 00101 192.168.0.2 192.168.0.3 Office2 (Sub)
Page 41 About the Office3 setting (Sub) 1. Select “Enable” in the [Additional Controller] item, and “Sub” in the [Controller Mode] item. Then click <reboot> to reboot the IP1000C. [RoIP Settings] (menu) > [RoIP Settings] (screen) > [Additional Controller Settings] (field) 2. Enter a name and a destination IP address. (Example: Office1 (Master)) [RoIP Server Settings] (menu) >...
Page 42 SETTING UP THE IP1000C SYSTEM 4. Additional controller link IP100H makes a Group Call with the Additional Controller Link IP1000C 192.168.0.1 Wireless Office1 (Master) access point Additional Controller Link Sales1 Sales2 Sales group1 00001 00002 00101 192.168.0.2 192.168.0.3 Office2 (Sub)
Page 43 [RoIP Settings] (menu) > [RoIP Settings] (screen) > [Additional Controller Settings] (field) L When several IP1000Cs are linked and use All call or Group call between the controllers, the IP1000C whose Controller mode is set to “Sub” cannot link to the bridge mode’s VE-PG3 to additional controller.
Page 44 SETTING UP THE IP1000C SYSTEM 5. Additional controller link with VE-PG3 IP100H makes a Group Call with the Additional Controller Link (VE-PG3) 192.168.0.2 (Area A) Additional Controller Link IP1000C Controller connection Repeater A [D-TRX1] VE-PG3 (RoIP Gateway) 192.168.0.11 [USB] Transceiver 192.168.0.3...
Page 45 SETTING UP THE IP1000C SYSTEM 5. Additional controller link with VE-PG3 IP100H makes a Group Call with the Additional Controller Link (VE-PG3) 192.168.0.2 (Area A) Additional Controller Link IP1000C Controller connection Repeater A [D-TRX1] VE-PG3 (RoIP Gateway) 192.168.0.11 [USB] Transceiver 192.168.0.3...
Page 46 SETTING UP THE IP1000C SYSTEM 5. Additional controller link with VE-PG3 IP100H makes a Group Call with the Additional Controller Link (VE-PG3) 192.168.0.2 (Area A) Additional Controller Link IP1000C Controller connection Repeater A [D-TRX1] VE-PG3 (RoIP Gateway) 192.168.0.11 [USB] Transceiver 192.168.0.3...
Page 47 SETTING UP THE IP1000C SYSTEM 5. Additional controller link with VE-PG3 IP100H makes a Group Call with the Additional Controller Link (VE-PG3) 192.168.0.2 (Area A) Additional Controller Link IP1000C Controller connection Repeater A [D-TRX1] VE-PG3 (RoIP Gateway) 192.168.0.11 [USB] Transceiver 192.168.0.3...
Page 48 SETTING UP THE IP1000C SYSTEM 5. Additional controller link with VE-PG3 IP100H makes a Group Call with the Additional Controller Link (VE-PG3) 192.168.0.2 (Area A) Additional Controller Link IP1000C Controller connection Repeater A [D-TRX1] VE-PG3 (RoIP Gateway) 192.168.0.11 [USB] Transceiver 192.168.0.3...
Page 49 About the VE-PG3 settings (Bridge mode) 7. Enter the IP address of the IP1000C in the [Controller Connection] field. (Example: 192.168.0.3) Enter the Controller Port Number same as the IP1000C’ Service port number in the Link setting field. (Example: 32000) Enter the Local Port Number same as the IP1000C’...
Page 50 1. How to restrict access ……………………………………………………………………………………………… 3-2 M Setting password ………………………………………………………………………………………………… 3-2 2. How to set the IP1000C’s internal clock time …………………………………………………………………… 3-3 M Setting date and time (Manual setting) ……………………………………………………………………… 3-3 M Setting date and time (Automatic setting) …………………………………………………………………… 3-3 3.
Page 51 L Choose one that is not easy to guess. L Use numbers, characters and letters (both lower and upper case). NOTE: When you forget the password, you cannot access to the IP1000C. In this case, initialize the IP1000C using the <INIT> button. (p. 5-4)
Page 52 OTHER BASIC FUNCTIONS 2. How to set the IP1000C’s internal clock time You can set the IP1000C’s internal clock time. ■ Setting date and time (Manual setting) Click the [Management] menu, then [Date and Time]. • The [Date and Time] screen appears.
Page 53 Click w Enter e Click Click <Reboot>. • When you are asked to reboot the IP1000C, follow the instructions. Click About the DHCP server function The IP1000C’s DHCP server function is disabled as default. L Before changing this function to “Enable,” make sure that the addresses of the devices on the network do not overlap or conflict.
Page 54 ABOUT THE SETTING SCREEN Section 1. About the setting screen …………………………………………………………………………………………… 4-4 2. [TOP] Menu ………………………………………………………………………………………………………… 4-5 M System Status …………………………………………………………………………………………………… 4-5 M Network Status ………………………………………………………………………………………………… 4-5 M Port Status ……………………………………………………………………………………………………… 4-6 M TRX Status ……………………………………………………………………………………………………… 4-6 3. [Information] Menu ………………………………………………………………………………………………… 4-7 M SYSLOG …………………………………………………………………………………………………………...
Page 55 ABOUT THE SETTING SCREEN (Continued from the previous page) 8. [Transceiver Settings] Menu …………………………………………………………………………………… 4-32 M Transceiver Management …………………………………………………………………………………… 4-32 M Transceiver Settings ………………………………………………………………………………………… 4-34 M Transceiver Setting Entry List ……………………………………………………………………………… 4-36 M TRX Batch Setting …………………………………………………………………………………………… 4-37 M Transceiver Settings [IP100H] ……………………………………………………………………………… 4-38 M Transceiver Settings [IP110H] ………………………………………………………………………………...
Page 56 ABOUT THE SETTING SCREEN (Continued from the previous page) M Traceroute Test ……………………………………………………………………………………………… 4-162 M Reboot ………………………………………………………………………………………………………… 4-163 M Settings Backup ……………………………………………………………………………………………… 4-164 M Settings Restore ……………………………………………………………………………………………… 4-164 M Online Settings ……………………………………………………………………………………………… 4-165 M List of Settings ………………………………………………………………………………………………… 4-166 M Factory Defaults ……………………………………………………………………………………………… 4-167 M Firmware Status ………………………………………………………………………………………………...
Page 57 Setting buttons Icom website link Setting buttons Click the Icom logo to open the Icom website, if your PC Save or cancel setting values. is connected to the Internet. If “A reboot is required to apply all the new settings.” is displayed on the screen when you click the [Apply] button, click the [OK] button.
Page 58 • The MAC address is also printed on the label on the bottom of the IP1000C. • The version information of the firmware in every WLAN transceiver registered into this IP1000C can be checked on the [TRX status] field. (p. 4-6) ■...
Page 59 • We recommend to always enable auto-negotiation on the peer devices. If a peer device is fixed to full-duplex mode, auto-negotiation enabled devices (including the IP1000C) may generally take it for half-duplex mode and cannot communicate properly.
Page 60 Click to refresh the log screen. <Clear> �� Click to delete all log entries. L All log entries are also deleted when the IP1000C is turned OFF or initialized. <Save> �� Click to save the log to a PC with a text file (extension: “txt”).
Page 61 ABOUT THE SETTING SCREEN 3. [Information] Menu [Information]–[Statistics] ■ Memory Usage Displays a statistical graph of the memory usage. L These setting items are reset when you leave this screen. Plot Interval �� Select the plot interval. (Default: 2 minutes) Automatic Refresh ��...
Page 62 ABOUT THE SETTING SCREEN 3. [Information] Menu [Information]–[Statistics] ■ Trafﬁ c Statistics Displays the trafﬁ c graph for LAN port. L These setting items are reset when you leave this screen. Plot Interval �� Select the plot interval. (Default: 2 minutes) Automatic Refresh ��...
Page 63 [Network Settings]–[IP Address] ■ Host Name Enter the host name. Host Name �� Enter the host name. (Up to 31 characters) (Default: IP1000C) L The name must start with an alphanumeric character, and must NOT start or end with a “–.” 4-10...
Page 64 ABOUT THE SETTING SCREEN 4. [Network Settings] Menu [Network Settings]–[IP Address] ■ IP Address Enter the IP1000C’s IP Address. IP Address �� Enter the LAN IP address according to your network environment. (Default: 192.168.0.1) L When using the DHCP Server function, the network part of the IP address must be the same as that set in the “IP Pool Start Address”...
Page 65 ABOUT THE SETTING SCREEN 4. [Network Settings] Menu [Network Settings]–[DHCP Server] ■ DHCP Server Configure the DHCP Server function. DHCP Server �� Select “Enable” to use the DHCP Server function. (Default: Disable) IP Pool Start Address �� Enter the IP pool start address. (Default: 192.168.0.10) Pool Size ��...
Page 66 ABOUT THE SETTING SCREEN 4. [Network Settings] Menu [Network Settings]–[DHCP Server] ■ DHCP Server Default Gateway �� Enter the default gateway IP address. Primary DNS Server �� Enter the DNS server address specified by your service provider. If you have two DNS server addresses, enter the primary address. Secondary DNS Server �...
Page 67 ABOUT THE SETTING SCREEN 4. [Network Settings] Menu [Network Settings]–[DHCP Server] ■ Static DHCP Enter MAC and static IP addresses to the DHCP server. L You can enter up to 32 entries. Static DHCP �� Enter the MAC and IP addresses, and then click <Add>. L Make sure that the addresses of the devices on the network do not overlap conflict.
Page 68 ABOUT THE SETTING SCREEN 4. [Network Settings] Menu [Network Settings]–[Static Routing] ■ Routing Table Displays the routing information. (This is only an example.) Destination �� The network address of the route’s destination network. Subnet Mask �� The subnet mask of the route’s destination network. Gateway ��...
Page 69 ABOUT THE SETTING SCREEN 4. [Network Settings] Menu [Network Settings]–[Static Routing] ■ Static Routing Enter the static routing destinations. L You can enter up to 32 entries. (This is only an example.) Destination �� The network address of the route’s destination network. Subnet Mask ��...
Page 70 IP1000C whose Controller mode is set to “Sub” cannot link to the bridge mode’s VE-PG3 to additional controller. In that case, the VE-PG3 must be linked to the IP1000C whose Controller mode is set to “Master.”...
Page 71 ABOUT THE SETTING SCREEN 5. [RoIP Settings] Menu [RoIP Settings]–[Advanced Settings] ■ Advanced Settings Set the V/RoIP details.  The items on the [RoIP Settings] screen differs depending on the TOS Type setting. TOS Type: Not Used TOS Type: TOS TOS Type: Diffserv (These are examples when the “Buffering Type”...
Page 72 ABOUT THE SETTING SCREEN 5. [RoIP Settings] Menu [RoIP Settings]–[Advanced Settings] ■ Advanced Settings TOS Type: Not Used TOS Type: TOS TOS Type: Diffserv (These are examples when the “Buffering Type” item is set to “Static.”) TOS Type �� Select the TOS (Type-Of Service) format. (Default: TOS) •...
Page 73 ABOUT THE SETTING SCREEN 5. [RoIP Settings] Menu [RoIP Settings]–[Advanced Settings] ■ Advanced Settings TOS Type: Not Used TOS Type: TOS TOS Type: Diffserv (These are examples when the “Buffering Type” item is set to “Static.”) Media (RTP) �� Select the Priority level and Service type of the sent VoIP packets. •...
Page 74 6. [Tenant (Fleet) Settings] Menu [Tenant (Fleet) Settings]–[Tenant (Fleet)] ■ Tenant (Fleet) The tenant (fleet) divides the WLAN transceivers or IP100FSs which belong to this IP1000C for a system management purpose. (Example: Security company/Commissioned company) L The terminals cannot communicate among different tenants (fleets).
Page 75 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Call Type Priority] ■ Call Type Priority Select the priority level of the call types. (This is only an example.) Call type Priority (High to low) Select the priority level of the call types. (Default: Telephone –...
Page 76 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Telephone Gateway Interconnection] ■ Telephone Gateway Interconnection Set the Telephone Gateway Interconnection with a VE-PG3. (This is only an example.) No. �� Select the number that is registered to a device. L Up to 20 devices can be registered.
Page 77 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Telephone Gateway Interconnection] ■ Telephone Gateway Interconnection Entry List The list of the registered device for the Telephone Gateway Interconnection. (This is only an example.) <Edit> �� Click to edit the setting on the [Telephone Gateway Interconnection] field.
Page 78 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Telephone Gateway Interconnection] ■ Telephone Gateway Interconnection Group If the courses of the Telephone Gateway Interconnection to the VE-PG3s are made into a group, the unused course in the group can be selected to dispatch. (This is only an example.) No.
Page 79 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Telephone Gateway Interconnection] ■ Telephone Gateway Interconnection Group Entry List The list of the registered Telephone Gateway Interconnection group. (This is only an example.) <Edit> �� Click to edit the setting on the [Telephone Gateway Interconnection Group] field.
Page 80 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Additional Controller Link] ■ Link Setting This is a setting to link with other IP1000Cs, VE-PG3s (Bridge mode), or VE-PG4s. (This is only an example.) No. �� Select a number between 1 and 100 to register the other transceiver controllers.
Page 81 [RoIP Server Settings]–[Additional Controller Link] ■ Linked Controller List The [Linked Controller List] is a list of the destination IP addresses and port numbers registered to this IP1000C. (This is only an example.) <Edit> �� Click to edit the setting on the [Link Setting] field.
Page 82 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Area Call] ■ Area Setting The Area call function limits the communication with the devices in the specified area. When a WLAN transceiver makes an All call or Group call using the Area call function, it calls other WLAN transceivers or IP100FSs in the same area.
Page 83 [RoIP Server Settings]–[Area Call] ■ Access Point Search The IP1000C can search an access point on the network to register the access point for Area Call. L Icom guarantees this function only for the AP-90M and AP-95M. (As of June 2023) (This is only an example.)
Page 84 ABOUT THE SETTING SCREEN 7. [RoIP Server Settings] Menu [RoIP Server Settings]–[Area Call] ■ Area Entry List The list of the registered Area setting. (This is only an example.) <Edit> �� Click to edit the setting on the [Area Setting] field. <Delete>...
Page 85 8. [Transceiver Settings] Menu Management] [Transceiver Settings]–[Transceiver ■ Transceiver Management The IP1000C can monitor the registered WLAN transceivers and IP100FSs. And if necessary, The IP1000C can reboot the registered WLAN transceivers at the same time. 10 (This is only an example.) L A WLAN transceiver is displayed in bold when the setting is changed and the reboot is required.
Page 86 L While the “Registration Status” displays “Disconnected,” “–” is displayed. Manual Update �� Select “Enable” to manually update the WLAN transceiver’s firmware when The IP1000C sends the reboot command (10 ) to it. When the WLAN transceiver is ready to update the firmware, “F” blinks on the display and then the WLAN transceiver automatically reboots and starts the firmware update.
Page 87 TRX No. �� Selects the number that the WLAN transceiver or IP100FS is registered Up to 100 terminals can be registered. L Depending on the IP1000C versions, up to 20 terminals can be registered. Transceiver Model �� Select a WLAN transceiver model.
Page 88 10 (This is only an example.) Server Port Number �� Enter the port number that The IP1000C uses to communicate with the WLAN transceiver or IP100FS. (UDP port) Information • The set port number (RTP) and the port number +1 (RTCP) are used for the communication.
Page 89 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Registration] ■ Transceiver Setting Entry List The list of the registered WLAN transceivers and IP100FSs. (This is only an example.) Selection Box �� Click a selection box to add a check mark to delete an entry. L By clicking the [All] box, you can select or cancel all entries in the list.
Page 90 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Registration] ■ TRX Batch Setting You can register consecutive Destination IDs collectively. Or you can copy the Destination ID contents to the other ID. Range �� Enter a range of collective Destination IDs. <Add>...
Page 91 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] Individually assign the functions or set the receive notification tone to the registered IP100H. L After the setting is completed, you must reboot the IP100H. (This is only an example.) Unit ID ��...
Page 92 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) PTT Call at Stand-by �� Select whether the IP100H displays the Destination ID (Call type) in the standby mode or not. (Default: Enable) •...
Page 93 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Use ID List �� Select whether or not the IP100H uses the ID list. (Default: Disable) • Disable The call type is fixed to that which is selected in the “Call Type” item, as below, even if you push the [ ] key on the IP100H.
Page 94 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Default Talkgroup �� Select a talkgroup if you want to set the IP100H to join a talkgroup when you turn ON the power. (Default: Disable) •...
Page 95 L When this setting is set to “0,” the notification beep becomes OFF. L Depending on the [Common Settings], the IP100H sounds beeps when the IP100H is transmitting or connecting to the IP1000C. Communication Method � Select the communication method that the IP100H uses.
Page 96 L The priority is given to the first call between calls with the same priority level. L The reply call follows the priority level of the talk side. Change the target during communication with the Priority Call function enabled IP1000C Wireless access point...
Page 97 When the IP100H calls All Call or Group Call using the Area Call function, it calls only other IP100Hs or IP100FSs in the same area that it connects to the wireless access point. IP100H makes an All Call with the Area Call function Wireless IP1000C access point Sales Accounts Parts...
Page 98 [Messages] screen in the [Common Settings] menu. L Select the message number 1 to 10 in the “Default Message” item that is registered on the [Message] screen. IP100H transmits a message Wireless IP1000C access point Blinks Scrolls All Call Message...
Page 99 IP100FS. IP100FS One-Touch button IP100H sends the Status IP1000C Wireless access point At lunch Status At lunch Name, Destination ID, Status number and Status information Status selection screen IP100H (TX) IP1000C Transceiver Management screen At lunch Status 4-46...
Page 100 Select whether the IP100H receives the mixing audio or not. (Default: Disable) When this setting is set to “Enable,” the IP1000C sends the mixing audio of all calls that call to the IP100H. L The IP100H displays the called station that has the highest priority in the mixing audio.
Page 101 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Fix Call Destination �� Select whether the IP100H uses the Fix Call Destination function or not. (Default: Disable) When this setting is set to other than “Disable,” the IP100H calls the preset destination instead of the selected destination that is displayed on the third line.
Page 102 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Option Key �� Assign “Message,” “One Touch,” “Clear down,” “Mute,” “Emergency,” or “No function” to the IP100H’s Option key. (Default: No Function) L When this setting is set to “No function,”...
Page 103 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Option Key ………………… • One Touch Pushing [Option] on the IP100H selects a specified Call type and destination ID or phone number. Specify the “Individual,”...
Page 104 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Option Key ………………… • Clear Down Pushing [Option] on the IP100H terminates the phone call with an IP phone. L You can assign another function, if you select “Enable” on the [Clear Down during Telephone Call] (21) item.
Page 105 The IP1000C should not be used when high reliability is necessary. The communication cannot be made, depending on the environment around the IP1000C, such as the consumption of a battery, the signal environment, or the access point or network status.
Page 106 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Target Availability Check � Select whether the IP100H displays a confirmation after it makes an Individual Call, or not. (Default: Enable) When “Enable”...
Page 107 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Gain �� Adjust the microphone sensitivity. (Default: 0 (dB)) The adjustable range is –12 (low) to 12 (high) dB, in 3 dB steps. L When the noise level around the IP100H is high, set to low sensitivity and speak in a slightly louder voice that helps listening easily.
Page 108 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) VOX �� Select whether the IP100H can use the VOX (voice operated transmission) function or not. (Default: Disable) The transceiver has a VOX function*, which allows hands-free operation.
Page 109 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Attack Time �� Adjust the Attack time to between 5 and 2000 milliseconds in 5 millisecond steps. (Default: 50 (milliseconds)) VOX: Enable When audio from a headset microphone is input for this specified time, the IP100H starts transmitting.
Page 110 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Emergency �� Select whether or not to use the emergency function. (Default: Disable) Holding down the [Option] or [Log] key until “Emergency” is displayed turns ON the Emergency function, and sends an emergency call to the previously set User ID.
Page 111 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Call Type �� Select the call type of emergency call from Individual, Group, All, or Telephone. (Default: All) Emergency: Enable L If you select “Individual”...
Page 112 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Lone Worker �� If the Lone Worker function is activated, the Emergency function is automatically turned ON after the set period has passed with no Emergency: Enable operation.
Page 113 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Buffering Type �� Select a type of buffers to reduce the received audio break-up. (Default: Dynamic) • Static The buffer time is set the “Receive Buffer Size” item. Set the buffer time to between 20 and 500 milliseconds to keep the audio from breaking up.
Page 114 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP100H] (This is only an example.) Media (RTP) �� Select the Priority level and Service type of the sent VoIP packets. • Priority Level Set the TOS priority level to between 0 and 7. (Default: 7) •...
Page 115 Antenna Type �� Select the Antenna that the IP100H will use. (Default: Transceiver’s Setting) • Transceiver’s Setting Uses the last antenna set by the CS-IP100H or IP1000C. • Internal Antenna Uses the internal antenna. The internal antenna reduces the communication range.
Page 116 Select the IP100H’s IP settings. (Default: Transceiver’s Setting) • Transceiver’s Setting Uses the last IP setting set by the CS-IP100H or IP1000C. • DHCP Client Selects the DHCP Client when the IP address is automatically obtained by a DHCP server.
Page 117 (As of June 2023) SNTP Server �� Enter the IP address of the device that is specified as the SNTP server for the IP100H. L When the IP1000C is used as its SNTP Server, this entry is not necessary. 4-64...
Page 118 • Enable (without Automatic Reboot) When this setting is set to “Enable (without Automatic Reboot),” the IP100H works as follows. 1. The IP100H confirms the latest firmware in the IP1000C when turning ON. 2. The IP100H automatically downloads the firmware if it needs to update.
Page 119 Enter the IP Address or Host name of the Firmware Server for the IP100H, up to 63 characters. L When the IP1000C is used as its Firmware Server, this entry is not necessary. L Do not install the multiple firmware servers in the system.
Page 120 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] Individually assign the functions or set the receive notification tone to the registered IP110H. L After the setting is completed, you must reboot the IP110H. (This is only an example.) Unit ID ��...
Page 121 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) TX Inhibit �� Select “Enable” to inhibit the IP110H’s transmission. (Default: Disable) L When this setting is set to “Enable,” the IP110H cannot also transmit with an optional microphone or using VOX function as well.
Page 122 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) PTT Call at Stand-by �� Select whether the IP110H displays the Destination ID (Call type) in the standby mode or not. (Default: Enable) •...
Page 123 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] 11 12 13 14 15 16 17 18 (This is only an example.) Use ID List �� Select whether or not the IP110H uses the ID list. (Default: Disable) 12 •...
Page 124 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Default Talkgroup �� Select a talkgroup if you want to set the IP110H to join a talkgroup when you turn ON the power. (Default: Disable) •...
Page 125 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Ringer and Vibration �� Set the action when the IP110H receives a Call or message to between “Notification Beep,” “Vibration” and “Notification Beep + Vibration.” (Default: Notification Beep) •...
Page 126 L When this setting is set to “0,” the notification beep becomes OFF. L Depending on the [Common Settings], the IP110H sounds beeps when the IP110H is transmitting or connecting to the IP1000C. Communication Method � Select the communication method that the IP110H uses.
Page 127 L The priority is given to the first call between calls with the same priority level. L The reply call follows the priority level of the talk side. Change the target during communication with the Priority Call function enabled IP1000C Wireless access point...
Page 128 When the IP110H that is enabled Area Call calls All Call or Group Call, it calls only other IP110Hs in the same area that it connects to the wireless access point. IP110H makes an All Call with the Area Call function Wireless IP1000C access point Sales Accounts Parts...
Page 129 [Messages] screen in the [Common Settings] menu. L Select the message number 1 to 10 in the “Default Message” item that is registered on the [Message] screen. IP110H transmits a message Wireless IP1000C access point Blinks Scrolls All Call IP110H...
Page 130 Management] screen in the [Transceiver Settings] menu or the one-Touch button of the IP100FS. IP100FS One-Touch button IP110H sends the Status IP1000C Wireless access point At lunch Name, Destination ID, Status number and Status information Presence selection screen IP110H (TX) IP1000C Transceiver Management screen At lunch Status 4-77...
Page 131 Select whether the IP110H receives the mixing audio or not. (Default: Disable) When this setting is set to “Enable,” the IP1000C sends the mixing audio of all calls that call to the IP110H. L The IP110H displays the called station that has the highest priority in the mixing audio.
Page 132 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Bluetooth �� Select whether or not to use the Bluetooth function. If enabled, set also whether or not to use the automatic connection with the paired Bluetooth devices.
Page 133 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Fix Call Destination �� Select whether the IP110H uses the Fix Call Destination function or not. (Default: Disable) When this setting is set to other than “Disable,” the IP110H calls the preset destination instead of the selected destination that is displayed on the third line.
Page 134 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) [P1] ~ [P5] �� Assign “Message,” “One Touch,” “Clear Down,” “Mute,” “Emergency,” “Playback Recording,” “Temporary Audio Level,” or “No Function” to a IP110H’s Programmable key ([P1] to [P5]).
Page 135 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) [P1] ~ [P5] …………………… • Clear Down Holding the programmable key for 1 second terminates the phone call with an IP phone. L You can assign another function, if you select “Enable”...
Page 136 The IP1000C should not be used when high reliability is necessary. The communication cannot be made, depending on the environment around the IP1000C, such as the consumption of a battery, the signal environment, or the access point or network status.
Page 137 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) [P1] ~ [P5] …………………… • Playback Recording Holding down the programmable key for 1 second displays the recorded log screen. Select and push [ENT] on the IP110H to start playing back the recorded audio.
Page 138 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Clear Down during Telephone Call Select “Enable,” if you want to terminate the phone call by pushing the IP110H’s programmable key. (Default: Enable) L When the programmable key is set to “Clear Down,”...
Page 139 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Target Availability Check � Select whether the IP110H displays a confirmation after it makes an Individual Call, or not. (Default: Enable) When “Enable”...
Page 140 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Gain �� Adjust the microphone sensitivity. (Default: 0 (dB)) The adjustable range is –12 (low) to 12 (high) dB, in 3 dB steps. L When the noise level around the IP110H is high, set to low sensitivity and speak in a slightly louder voice that helps listening easily.
Page 141 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Headset/Earphone Mic Noise Canceller �� Select whether or not to use the noise canceller function. The function reduces the environmental noise and the destination can hear your voice clearer.
Page 142 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Headset/Earphone Mic VOX Threshold �� Adjust the VOX Threshold level to between 0% and 100%. (Default: 40%) VOX: Enable Higher values make the VOX function more sensitive to your voice. Sidetone ��...
Page 143 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] 41 42 43 44 45 46 47 48 49 50 51 52 53 54 (This is only an example.) Bluetooth Mic Settings Synchronous Volume �� Select whether or not to synchronize the audio volume level of the 41 Bluetooth headset with the setting of IP110H.
Page 144 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] 41 42 43 44 45 46 47 48 49 50 51 52 53 54 (This is only an example.) Bluetooth Mic Settings Auto Disconnect �� Select whether or not to terminate the SCO (Synchronous Connection- 44 Oriented) with the Bluetooth headset.
Page 145 The function toggles receiving and transmitting by momentarily pushing [PTT]. L Icom has checked the PTT operation with some 3M Peltor headsets, such as the WS Headset XP, WS ProTac XP, and WS Alert XP, however, compatibility is not guaranteed.
Page 146 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Emergency �� Select whether or not to use the emergency function. (Default: Disable) This function is usable only when the emergency function is assigned to a programmable key.
Page 147 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Call Type �� Select the call type of emergency call from Individual, Group, All, or Telephone. (Default: All) Emergency: Enable L If you select “Individual”...
Page 148 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Man Down �� Select whether or not to use the Man Down function. (Default: Disable) If the Man Down function is activated, the Emergency function is automatically turned ON after the set period of time has passed with the transceiver leaning past the preset angle.
Page 149 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Monitoring �� Select whether or not to monitor for the set period of time until activating the Man Down function. (Default: Enable, 10 (seconds)) If enabled, set On Timer between 1 and 255 seconds.
Page 150 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) With Stationary �� Select whether or not to use the Man Down function with the Stationary function option. (Default: Disable) If this item is set to “Enable,”...
Page 151 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Lone Worker �� If the Lone Worker function is activated, the Emergency function is automatically turned ON after the set period has passed with no operation.
Page 152 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Lone Worker ON Timer �� Enter the time period for starting the Lone Worker function within the range of 1 to 255 minutes (1 minute steps). (Default: 60 (minutes)) •...
Page 153 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) With Stationary �� Select whether or not to use the Lone Worker function with the Stationary function option. (Default: Disable) If this item is set to “Enable,”...
Page 154 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Stationary Detection �� Set whether or not to use the Stationary Detection function. (Default: Disable) ON Timer �� Set a time between 1 and 255 seconds. L When the user is detected as stationary for this set period of time, the Stationary Detection’s Reminder Timer starts.
Page 155 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Motion Detection �� Set whether or not to use the Motion Detection function. (Default: Disable) Motion Detection Timer � Set the period of time to activate the Motion Detection function. (Default: 10 (seconds)) Select a time between 1 and 255 seconds.
Page 156 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Stationary Sensitivity �� Set the acceleration sensor sensitivity to detect if the user is stationary or not for the Stationary Detection function. (Default: 2) This setting is used for the Stationary Detection function, and it determines the acceleration threshold level to activate the Stationary...
Page 157 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Buffering Type �� Select a type of buffers to reduce the received audio break-up. (Default: Dynamic) • Static The buffer time is set the “Receive Buffer Size” item. Set the buffer time to between 20 and 500 milliseconds to keep the audio from breaking up.
Page 158 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Transceiver Settings [IP110H] (This is only an example.) Media (RTP) �� Select the Priority level and Service type of the sent VoIP packets. • Priority Level Set the TOS priority level to between 0 and 7. (Default: 7) •...
Page 159 Select the IP110H’s IP settings. (Default: Transceiver’s Setting) • Transceiver’s Setting Uses the last IP setting set by the CS-IP110H or IP1000C. • DHCP Client Selects the DHCP Client when the IP address is automatically obtained by a DHCP server.
Page 160 L Only the IP1000C and VE-PG4 is compatible with this function. (As of June 2023) SNTP Server �� Enter the IP address of the device that is specified as the SNTP server for the IP110H. L When the IP1000C is used as its SNTP Server, this entry is not necessary. 4-107...
Page 161 • Enable (without Automatic Reboot) When this setting is set to “Enable (without Automatic Reboot),” the IP110H works as follows. 1. The IP110H confirms the latest firmware in the IP1000C when turning ON. 2. The IP110H automatically downloads the firmware if it needs to update.
Page 162 Enter the IP Address or Host name of the Firmware Server for the IP110H, up to 63 characters. L When the IP1000C is used as its Firmware Server, this entry is not necessary. L Do not install the multiple firmware servers in the system.
Page 163 ABOUT THE SETTING SCREEN 8. [Transceiver Settings] Menu [Transceiver Settings]–[Transceiver Settings] ■ Copy Transceiver Settings The individual settings in the [Transceiver Settings] screen can be copied to another IP110H. L IP address settings are not copied. (This is only an example.) Selection Box ��...
Page 164 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ Wireless LAN Registers wireless LAN settings that are commonly used by the WLAN transceivers. L You can individually set the common settings to each registered group in the “Common Setting List” field on the [Common Settings] screen.
Page 165 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ Wireless LAN (This is only an example.) SSID �� Enter an SSID that is the same as the wireless access point. Enter up to 32 characters, using numbers, symbols and letters (both lower and upper case).
Page 166 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ Wireless LAN (This is only an example.) Authentication �� Select the authentication method that is the same as the wireless access point. (Default: Open System/Shared Key) L Be sure to verify the Access point setting, because the terminals and access points cannot communicate using different authentication methods.
Page 167 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ Wireless LAN (This is only an example.) Encryption �� Select the encryption type that is the same as the wireless access point. (Default: None) L Be sure to verify the access point setting, because the terminals and access points cannot communicate using different encryption.
Page 168 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ Wireless LAN (This is only an example.) WEP Encryption Key or PSK (Pre-Shared Key) �� • WEP Encryption Key Enter the encryption key that is the same as the wireless access point.
Page 169 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ Wireless LAN (This is only an example.) <Apply> �� Click to apply the entries. <Reset> �� Click to restore the settings. L You cannot restore after clicking <Apply>. 4-116...
Page 170 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Wireless LAN] ■ List on Wireless LAN Entries The list of the wireless LAN settings. (This is only an example.) <Edit> �� Click to edit the entries in the [Wireless LAN] field. <Delete>...
Page 171 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[ID List] ■ ID List Common Settings Selects an ID list that the WLAN transceivers will use. L You can individually specify an ID list that the WLAN transceivers belong to the groups in the “Profile” field on the [Common Settings] screen.
Page 172 ■ Save or Write the ID List Setting You can save an ID list file on your PC or load an ID list file to the IP1000C. L If any WLAN transceiver settings have been changed, you must reboot it.
Page 173 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[ID List] ■ ID List Enters target IDs in the group that is selected in the “ID List Common Settings” field. L You can enter up to 50 target IDs in each group. This is an example when group 1 is selected in the [ID List Common Setting] field.
Page 174 L After clicking <Delete All>, the contents cannot be recalled. When entering the Destination ID that is not registered in this IP1000C When applying the Destination ID to the ID list that is not registered in the [Transceiver Settings] screen or the [Destination Settings] screen, the ID is displayed in red as an error ID in the ID List Entries.
Page 175 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Messages] ■ Message Group Entering messages Selects to register a message that the WLAN transceivers will use. L You can individually specify the message group that the WLAN transceivers belong to the groups in the “Common Setting List”...
Page 176 [Common Settings]–[Messages] ■ Save or Write the Message Setting You can save a message file on your PC or load a message file to the IP1000C. L If any WLAN transceiver settings have been changed, you must reboot it. This is an example when group 1 is selected in the [Message Group] field.
Page 177 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Messages] ■ Messages Enter messages in the group that is selected in the “Message Group” field. You can transmit fixed message of up to 32 characters. L You can enter up to 10 messages in each message group. (This is only an example.) <Apply>...
Page 178 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Status] ■ Status Settings Selects to register a status that the WLAN transceivers use. L You can programmed statuses of up to 32 characters. You can enter up to 10 statuses. L If any entries on this screen have been changed, you must reboot the WLAN transceivers.
Page 179 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile List Displays the entries that are entered in the “Common Settings” item. (This is only an example.) <Add> �� Click to add an new profile. <Edit> �� Click to edit the entries in the “Profile” items. <Delete>...
Page 180 (Default: Transceiver’s Setting) • Transceiver’s Setting Uses the last wireless LAN setting that was set by the programming software or IP1000C. • 1 (Name) to 20 (Name) Select a number with wireless LAN name that was entered in the Wireless LAN screen.
Page 181 L Generally use the default setting. L When the interval period is short, and a WLAN transceiver goes out of the communication area, its registration status on the IP1000C can be updated earlier. Therefore, if the WLAN transceiver receives an Individual call, the IP1000C can quickly reply “No response”...
Page 182 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile (This is only an example.) Connection Notice Tone Success �� Select a notice tone for a successful connection. (Default: Enable) L When an individual call, Message call, Status call or telephone call connection is successful, the notice tone sounds.
Page 183 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile (This is only an example.) Ringer Settings �� Select a notice tone when a call is received. (Default: Not Use) L This tone can be individually assigned to each call type, “Individual Call,” “Group Call,”...
Page 184 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile (This is only an example.) Courtesy Beep �� Select a notice tone when a received call is finished. (Default: Tone 1) L This tone can be individually assigned to each call type, “Individual Call,” “Group Call,”...
Page 185 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile (This is only an example.) Destination ID �� Select a destination ID that will be displayed after returning to the standby mode. (Default: Disable) • Disable Displays the destination ID or call type that is specified in the “Destination ID”...
Page 186 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile (This is only an example.) Date Format �� Select a date format to display on the WLAN transceiver’s standby screen. (Default: MM/DD) You can select “MM/DD,” “DD/MM,” “MM-DD,” “DD-MM,” “MM.DD” or “DD.
Page 187 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile (This is only an example.) TalkBack Lock �� Select whether the Talk Back Lock function “Disable” or “Enable.” (Default: Enable) • Enable After a call is finished and the WLAN transceiver returns to the standby mode, if it is received another call in the Talk back timer, it accepts to receive when higher priority level call is received, or refuses same or lower priority level call is received than the finished...
Page 188 When the WLAN transceiver make a Telephone call and the callee phone number is not registered its Telephone Gateway Interconnection in the [Destination Settings] screen on the [Destination Settings] menu, the IP1000C uses this default Telephone Gateway Interconnection. (See pp. 4-146 and 4-151) (Default: NONE) Selectable number or group number are only registered in the [Destination Settings] screen on the [Destination Settings] menu.
Page 189 ABOUT THE SETTING SCREEN 9. [Common Settings] Menu [Common Settings]–[Profile] ■ Profile Batch Setting You can register consecutive Profiles collectively. Or you can copy the Profile contents to the other Profile. Range �� Sets a range of collective Profiles. <Add> By clicking the <Add>...
Page 190 Communication Type �� Select “Simplex” or “Full-Duplex” to use the All call. Simplex operation L When the Simplex is selected, the called station cannot reply until the caller station stops transmitting. Wireless access point IP1000C IP100H IP100H IP100FS (Remote communicator) Full-Duplex operation...
Page 191 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Settings Call Type: All (These are examples when clicking <Edit> on the [List of Destination Setting Entries (All Call)] field.) Additional Controller �� Select Additional Controller when configuring several controllers, and the All call calls between the different controllers.
Page 192 Communication Type �� Select “Simplex” or “Full-Duplex” to select the operation type. Simplex operation When the Simplex is selected, the called station cannot reply until the caller station stops transmitting. Wireless access point IP1000C IP100H IP100H IP100FS (Remote communicator) Full-Duplex operation...
Page 193 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Settings Call Type: Group (These are examples when the “Call Type” item is set to “Group.”) WLAN Transceivers �� Click to select the WLAN transceivers or IP100FS which belong to the group.
Page 194 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Settings Call Type: Talkgroup Set the destinations to call a Talkgroup through the Internet. L The items on the [Destination Settings] screen differ, depending on the Call Type setting. (These are examples when the “Call Type”...
Page 195 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Settings Call Type: Talkgroup (These are examples when the “Call Type” item is set to “Talkgroup.”) Talkgroup Type �� When “Multiplex Talkgroup” is selected, you can talk to 2 or more Talkgroups.
Page 196 Communication Type �� Select “Simplex” or “Full-Duplex” to select the operation type. Simplex operation L When the Simplex is selected, the called station cannot reply until the caller station stops transmitting. Wireless access point IP1000C IP100H IP100H IP100FS (Remote communicator) Full-Duplex operation...
Page 197 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Settings Call Type: Talkgroup (These are examples when the “Call Type” item is set to “Talkgroup.”) Talkgroup Call for IP100FS Select whether or not the Talkgroup Call includes the IP100FSs. (Default: Enable) Callee ID for IP100FS ��...
Page 198 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Settings Call Type: Individual Set the destinations to call the group through the Internet. L The items on the [Destination Settings] screen differ depending on the Call Type setting. (These are examples when the “Call Type”...
Page 199 Select the bridge connection device (VE-PG3) to call the IP phone. L It is necessary to complete the bridge connection setting between the IP1000C and the VE-PG3s that are registered in the [Telephone Gateway Interconnect] screen on the [RoIP Server Setting] menu.
Page 200 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ List of Destination Setting Entries (All Call) Click to edit the setting on the [Destination Settings] field. (This is only an example.) ■ List of Destination Setting Entries (Group Call) The list of the registered Group Calls.
Page 201 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ List of Destination Setting Entries (Talkgroup Call) The list of the registered Talkgroup Calls. (This is only an example.) Selection Box �� Click a selection box to add a check mark to delete an entry. L By clicking the [All] box, you can select or cancel all entries in the list.
Page 202 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ List of Destination Setting Entries (Multiplex Talkgroup Call) The list of the registered Management Talkgroup (Multiplex Talkgroup) Calls. (This is only an example.) Selection Box �� Click a selection box to add a check mark to delete an entry. L By clicking the [All] box, you can select or cancel all entries in the list.
Page 203 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ List of Destination Setting Entries (Individual Call) The list of the registered Individual Calls. (This is only an example.) Selection Box �� Click a selection box to add a check mark to delete an entry. L By clicking the [All] box, you can select or cancel all entries in the list.
Page 204 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ List of Destination Setting Entries (Telephone) The list of the registered Phone Calls. (This is only an example.) Selection Box �� Click a selection box to add a check mark to delete an entry. L By clicking the [All] box, you can select or cancel all entries in the list.
Page 205 ABOUT THE SETTING SCREEN 10. [Destination Settings] Menu [Destination Settings]–[Destination Settings] ■ Destination Batch Setting You can register consecutive Destinations collectively. Or you can copy the Destinations contents to another Destination. Call Type �� Select the Call Type of the Destinations that you want to add. Destination ID ��...
Page 206 L You cannot restore after clicking <Apply>. CAUTION: If you have forgotten the password, you cannot access the IP1000C’s setting screen again. In this case, you have to initialize the IP1000C using the <INIT> button. See page 5-4 for details. To prevent unauthorized access You must be careful when choosing your password.
Page 207 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Date and Time] ■ Date and Time You can set the IP1000C’s internal clock time. (See Section 3 for details.) Current Time �� Displays the current time. Manually Set Time �� Displays the time when you have opened this screen.
Page 208 Use Daylight Savings Time Select “Disable” if not necessary. (Default: Enable) L If “Enable” is selected, the IP1000C automatically adjusts the time according to your time zone. L If the Daylight Savings Time is not used in your area, this selection doesn’t affect the time setting.
Page 209 Enter the time management server’s IP address. (Default: 210.173.160.27) L If the IP1000C cannot access this address, then the address set in the [NTP Server 2] (3) item is used. Note: The default NTP servers are provided by INTERNET MULTIFEED NTP Server 2 ��...
Page 210 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Date and Time] ■ SNTP Server The SNTP server is for our RoIP device which have no route to an external Time server (NTP). L To use this function, an internet connection and default gateway settings are necessary. SNTP Server ��...
Page 211 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[SYSLOG] ■ SYSLOG Select the information to be saved to the SYSLOG host. DEBUG �� Select “Enable” to display the debug information. (Default: Disable) INFO �� Select “Enable” to display the INFO messages. (Default: Enable) NOTICE ��...
Page 212 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[SNMP] ■ SNMP Configure the SNMP function. SNMP�� Select “Enable” to use the SNMP function. (Default: Enable) Community Name (GET) � Enter the Community name to get the SNMP community string. (Up to 31 characters) (Default: public) System Location ��...
Page 213 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[USB] ■ USB Select the USB flash drive option. USB Flash Drive �� Select “Enable” to use a USB flash drive. (Default: Enable) Note: If you use the Automatic firmware update function or Automatic Setting Load function, select “Enable.”...
Page 214 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Network Test] ■ Ping Test Run the Ping test. Host �� Enter the IP address or host name to send the Ping packets to. Number of Times �� Select the number of times to send. (Default: 4) Packet Size ��...
Page 215 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Network Test] ■ Traceroute Test Run the Traceroute test. Node �� Enter the node’s (device’s) IP address. Max Hop Count �� Select the maximum hop number. (Default: 16) Timeout�� Select the response time. (Default: 3) Note: If there is no response within the selected time, a time out error is returned.
Page 216 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Reboot] ■ Reboot Click <Reboot> to reboot the IP1000C. L When clicking <Reboot>, the “Do you want to reboot the system?” message appears. Click <OK> to continue. 4-163...
Page 217 Click <Backup> to save the settings to a PC as a backup file (Extension: sav). See the topic below to load the saved file into the IP1000C. NOTE: DO NOT write the saved file to any other devices. ■ Settings Restore Load the setting file (Extension: “sav”) to the IP1000C.
Page 218 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Settings Backup/Restore] ■ Online Settings You can remotely configure the IP1000C, through the secured network path. L An SFTP server is required for this function. Online Settings �� Select “Enable” to use this function.
Page 219 ABOUT THE SETTING SCREEN 11. [Management] Menu [Management]–[Settings Backup/Restore] ■ List of Settings Displays the changed settings. Note: The list is clear when the IP1000C is initialized. (This is only an example.) 4-166...
Page 220 NOTE: • After the IP1000C is initialized, the IP address is returned to the default (192.168.0.1). • If the network part of the PC IP address is different from that of the IP1000C, you cannot access the IP1000C setting screen.
Page 221 11. [Management] Menu [Management]–[Firmware Update] NOTE: • NEVER turn OFF the power until the updating has been completed. Otherwise, the IP1000C may be damaged. • Ask your dealer for updated function or specification details. ■ Firmware Status Displays the firmware version.
Page 222 Note: To use this function, an Internet connection, DNS and default gateway settings are necessary. Check for Updates �� Click <Check> to access the update management server. When the IP1000C has successfully accessed the server, the latest firmware version is displayed as shown below. (This is only an example.) About the firmware information: •...
Page 223 Select the update file �� Click <Choose File> to select the firmware file (extension: “dat”). L The selected file appears in the “Update Firmware using File” item. Firmware Update �� Click <Update> to update the firmware. Note: After updating, the IP1000C automatically reboots. 4-170...
Page 224 Ask your network administrator if a web transmission from the IP1000C is blocked. CAUTION: • DO NOT turn off the IP1000C while updating the firmware. Otherwise the IP1000C and the transceivers may be damaged. • Ask your dealer for updated function or specification details.
Page 225 MAINTENANCE Section 1. How to save the IP1000C’s setting to a PC ……………………………………………………………………… 5-2 M Saving the setting ……………………………………………………………………………………………… 5-2 2. How to load the saved file to an IP1000C ……………………………………………………………………… 5-3 M Reloading the settings file into the IP1000C ………………………………………………………………… 5-3 3.
Page 226 MAINTENANCE 1. How to save the IP1000C’s setting to a PC You can save the IP1000C’s settings of its setting screen to a PC or USB flash drive. The saved settings can be used to recover the configuration. L The settings can be directly loaded into the IP1000C from the USB flash drive.
Page 227 2. How to load the saved file to an IP1000C You can load the IP1000C’s settings from a PC. L The settings can be directly loaded into the IP1000C from a USB flash drive. (p. 5-12) ■ Reloading the settings file into the IP1000C Click [Management], then [Settings Backup/Restore].
Page 228 Initializing clears all the settings. L If the network part of the PC IP address is different from that of the IP1000C, you cannot access the IP1000C setting screen. In such case, change the PC IP address according to the IP1000C address.
Page 229 Click About the initializing condition You can restore all the IP1000C’s settings. The IP1000C’s IP address is set to “192.168.0.1,” when initialized. Set the PC’s IP address to “192.168.0.xxx.” (You can set xxx to any number from 2 to 254.)
Page 230 NOTE: • NEVER turn OFF the power until the updating has been completed. Otherwise, the IP1000C may be damaged. • If the firewall is running, stop it before updating the firmware. If you want to stop the firewall, ask your network administrator for the detail.
Page 231 • NEVER turn OFF the power until the updating has been completed. Otherwise, the IP1000C may be damaged. • The IP1000C’s IP address is set to “192.168.0.1,” when initialized by the firmware update. Set the PC’s IP address to “192.168.0.xxx.” (You can set xxx to any number from 2 to 254.)
Page 232 In Online Update, click <Check> if there is an available firmware update. • The IP1000C connects to the update management server. When the IP1000C has successfully connected, the latest firmware status is displayed. Carefully read the displayed update details before starting the firmware update.
Page 233 • Insert the drive securely. • NEVER remove the USB flash drive or turn OFF the IP1000C’s power, while transferring data. It will cause data corruption, or damage the USB flash drive. While transferring data, the [USB] LED alternately blinks orange and green.
Page 234 • The firmware is not automatically saved as a backup. • The latest settings backup file is saved as “bakdata.sav” (with no revision number). • If the content of settings file is the same as the IP1000C’s current settings, no setting backup file is saved. 5-10...
Page 235 Note: The firmware and settings files in any other folders are not loaded. L If inserting the flash drive (Figure 1 and 2 in the picture below) into the IP1000C (0090C7000002), the setting backup file is automatically created in the root directory as there is no folder whose name is IP1000C’s LAN MAC address.
Page 236 Note: Before using a USB flash drive, see page 5-9. ■ Saving the settings file to a USB flash drive Insert the flash drive securely into one of the PC’s USB ports. Open the IP1000C’s setting screen. Click [Management], then [Settings Backup/Restore]. • The [Settings Backup/Restore] screen appears.
Page 237 Insert the USB flash drive Alternately blinks orange and green while accessing the device. Note: NEVER remove the USB flash drive or turn OFF the IP1000C’s power, while setting data. It will cause data corruption, or damage the USB flash drive. 5-13...
Page 238 OFF, and the IP1000C automatically reboots. Verify that the [PWR] LED lights green, then turn OFF the power. Then remove the USB flash drive from the IP1000C. L The IP1000C’s old setting data is automatically saved in the USB flash drive as “bakdata.sav.”...
Page 239 Select the root directory of the USB flash drive, and save the firmware file as “firmware.dat.“ L Any of other file name is not acceptable. L If you made the folder name is the IP1000C’s LAN MAC address (example: “0090C7000001”), save the file to the folder.
Page 240 ■ Updating the firmware All LEDs light orange while the firmware update is in progress. Note: NEVER remove the USB flash drive or turn OFF the IP1000C’s power. Lights orange while updating the firmware. When the update has been finished, the IP1000C automatically reboots.
Page 241 FOR YOUR INFORMATION Section 1. Troubleshooting …………………………………………………………………………………………………… 6-2 2. How to connect to the IP1000C using Telnet …………………………………………………………………… 6-4 M How to connect ………………………………………………………………………………………………… 6-4 M How to use the [CONSOLE] port ……………………………………………………………………………… 6-4 M About Telnet commands ………………………………………………………………………………………… 6-4 3.
Page 242 FOR YOUR INFORMATION 1. Troubleshooting If the IP1000C seems to be malfunctioning, please check the following before sending it to a service center. The [PWR] LED does not light. • The power adapter is not connected to the IP1000C. - Verify that the power adapter is securely connected.
Page 243 IP1000C. - Using the CS-IP100H or CS-IP110H, check and modify the provisioning server settings. - In the IP1000C software, check and modify the provisioning server settings of the WLAN transceiver. • The IP1000C does not connect to the network. - Check the connections between the IP1000C or Hub and check the LAN cables.
Page 244 5. When the Telnet access is successful, “IP1000C #” is displayed on the Telnet screen. ■ How to use the [CONSOLE] port The IP1000C can be configured using a terminal software. (Optional OPC-1402A is required.) Set the COM port as shown below, to communicate with the IP1000C. COM port settings: • COM port number: The port number that the optional OPC-1402A is connected to. • Bits per second: 115200 (bps) •...
Page 245 FOR YOUR INFORMATION 3. Specifications Note: All specifications are subject to change without notice. ■ General Power supply: 12 V DC ±10% [Plug polarity: Less than 15 Watts Usable condition: Temperature 0 to +40°C; +32 to +104°F, Humidity 5–95% (At no condensation) Dimension: A pproximately 232 (W) × 38 (H) × 168 (D) mm; 9.1 (W) × 1.5 (H) × 6.6 (D) in (projections not included) Weight: Approximately 0.8 kg; 28 oz (without the supplied accessories) Regulatory Compliance: F CC Part15 Subpart B/Canada ICES-003 [USA-11] EN55022/EN55024/EN61000-3-2/EN61000-3-3 [EUR-12], [EUR-14] Interface: L EDs (PWR, MSG, V/RoIP, LAN, USB) Buttons (UPDATE, INIT) [USB] port (USB 2.0) ×2 ■...
Page 246 How the World Communicates A7125-3EX-11 © 2014–2023 Icom Inc. Jun. 2023 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan...

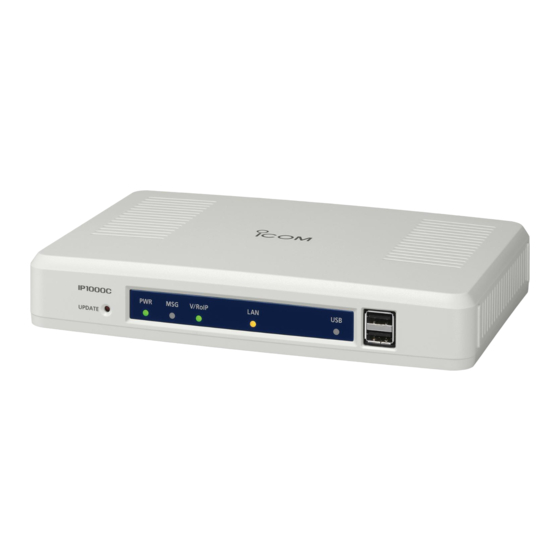

Icom IP1000C Instruction Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Icom IP1000C

Summary of Contents for Icom IP1000C
