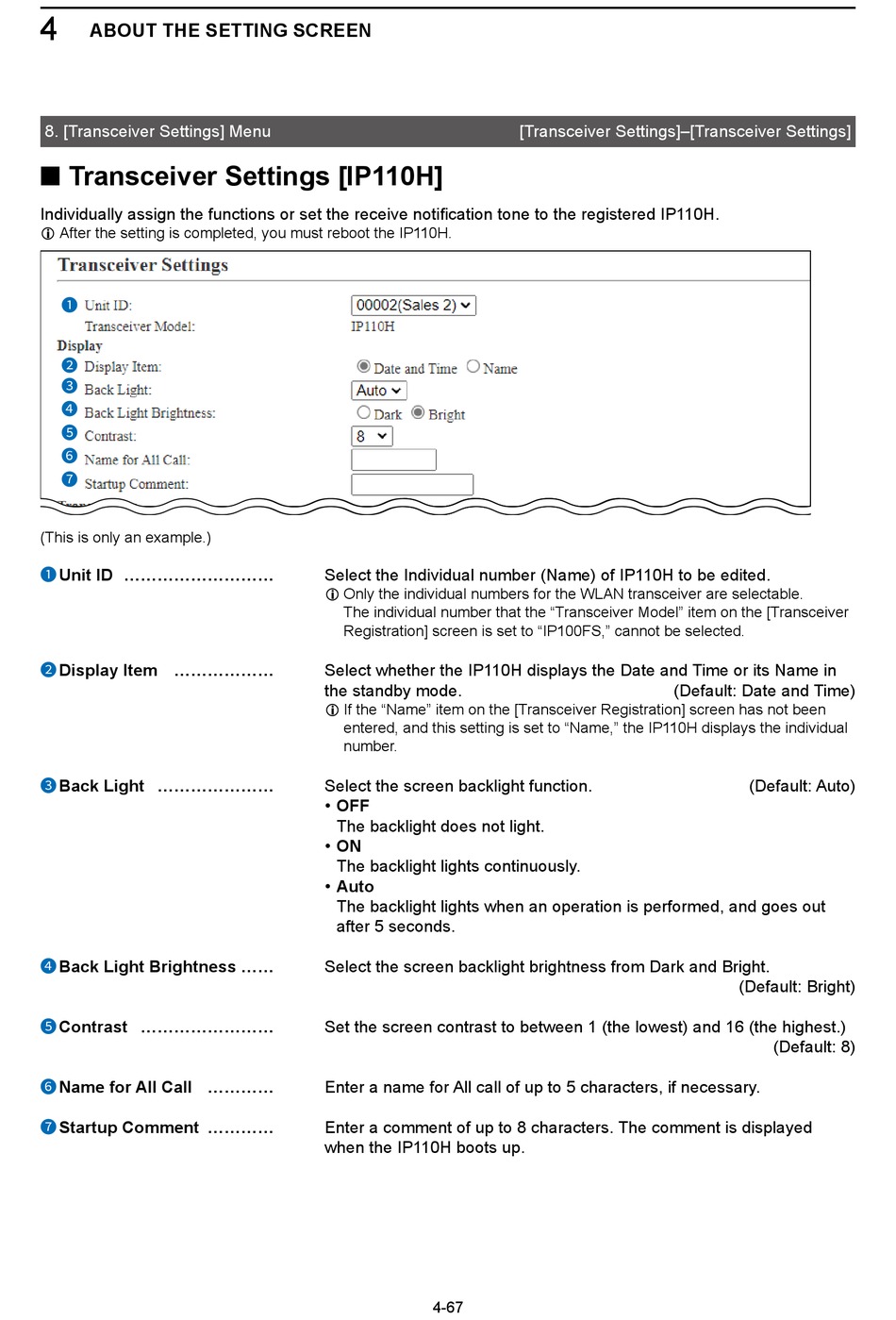

Icom IP1000C Instruction Manual page 120

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP110H]
Individually assign the functions or set the receive notification tone to the registered IP110H.
L After the setting is completed, you must reboot the IP110H.
1
2
3
4
5
6
7
(This is only an example.)
Unit ID ���������
1
Display Item ������
2
Back Light �������
3
Back Light Brightness ��
4
Contrast ��������
5
Name for All Call ����
6
Startup Comment ����
7
Select the Individual number (Name) of IP110H to be edited.
L Only the individual numbers for the WLAN transceiver are selectable.
The individual number that the "Transceiver Model" item on the [Transceiver
Registration] screen is set to "IP100FS," cannot be selected.
Select whether the IP110H displays the Date and Time or its Name in
the standby mode.
L If the "Name" item on the [Transceiver Registration] screen has not been
entered, and this setting is set to "Name," the IP110H displays the individual
number.
Select the screen backlight function.
• OFF
The backlight does not light.
• ON
The backlight lights continuously.
• Auto
The backlight lights when an operation is performed, and goes out
after 5 seconds.
Select the screen backlight brightness from Dark and Bright.
Set the screen contrast to between 1 (the lowest) and 16 (the highest.)
Enter a name for All call of up to 5 characters, if necessary.
Enter a comment of up to 8 characters. The comment is displayed
when the IP110H boots up.
4-67
[Transceiver Settings]–[Transceiver Settings]
(Default: Date and Time)
(Default: Auto)
(Default: Bright)
(Default: 8)
