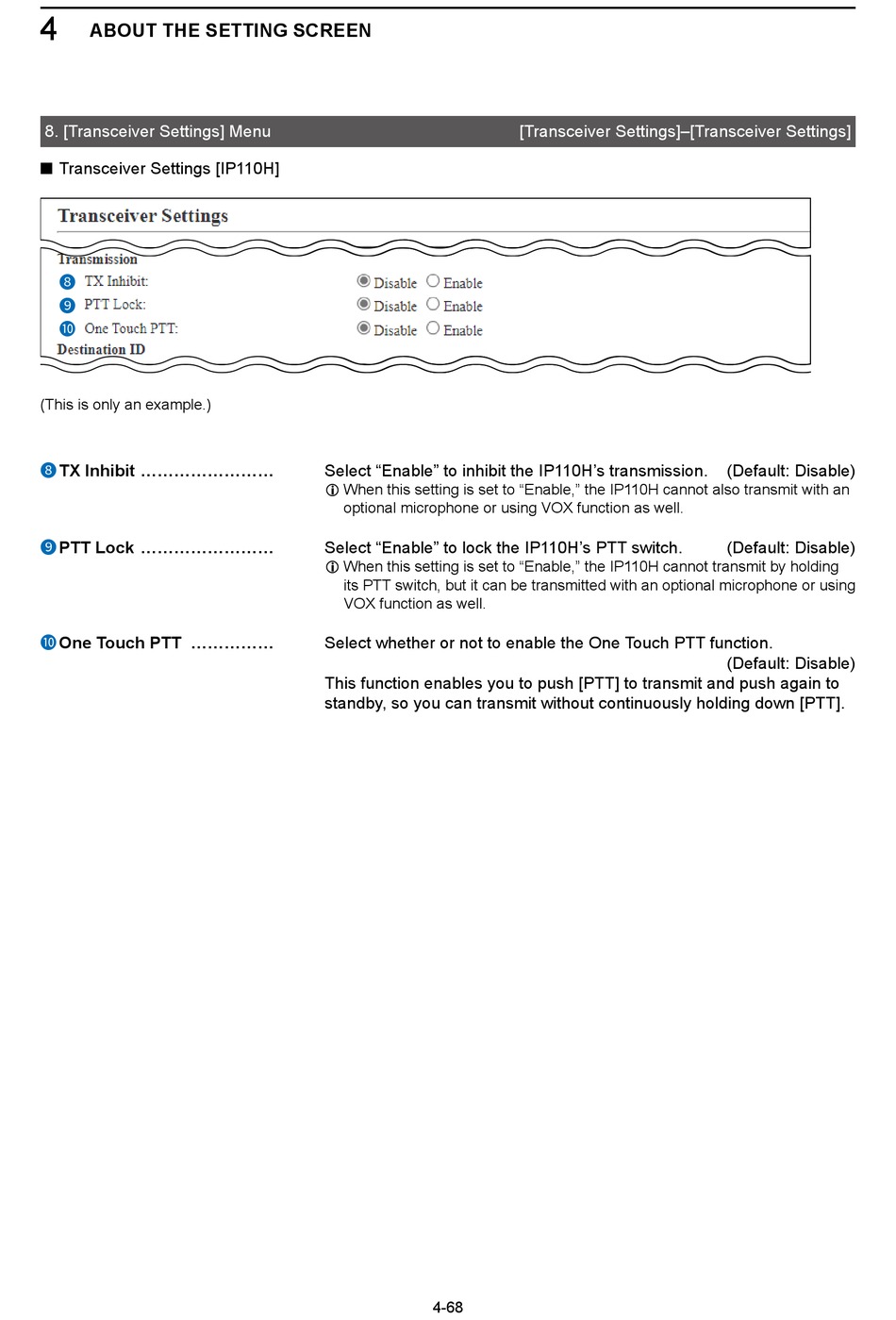

Icom IP1000C Instruction Manual page 121

4
ABOUT THE SETTING SCREEN
8. [Transceiver Settings] Menu
■ Transceiver Settings [IP110H]
8
9
10
(This is only an example.)
TX Inhibit ��������
8
PTT Lock ��������
9
One Touch PTT �����
10
Select "Enable" to inhibit the IP110H's transmission.
L When this setting is set to "Enable," the IP110H cannot also transmit with an
optional microphone or using VOX function as well.
Select "Enable" to lock the IP110H's PTT switch.
L When this setting is set to "Enable," the IP110H cannot transmit by holding
its PTT switch, but it can be transmitted with an optional microphone or using
VOX function as well.
Select whether or not to enable the One Touch PTT function.
This function enables you to push [PTT] to transmit and push again to
standby, so you can transmit without continuously holding down [PTT].
4-68
[Transceiver Settings]–[Transceiver Settings]
(Default: Disable)
(Default: Disable)
(Default: Disable)
