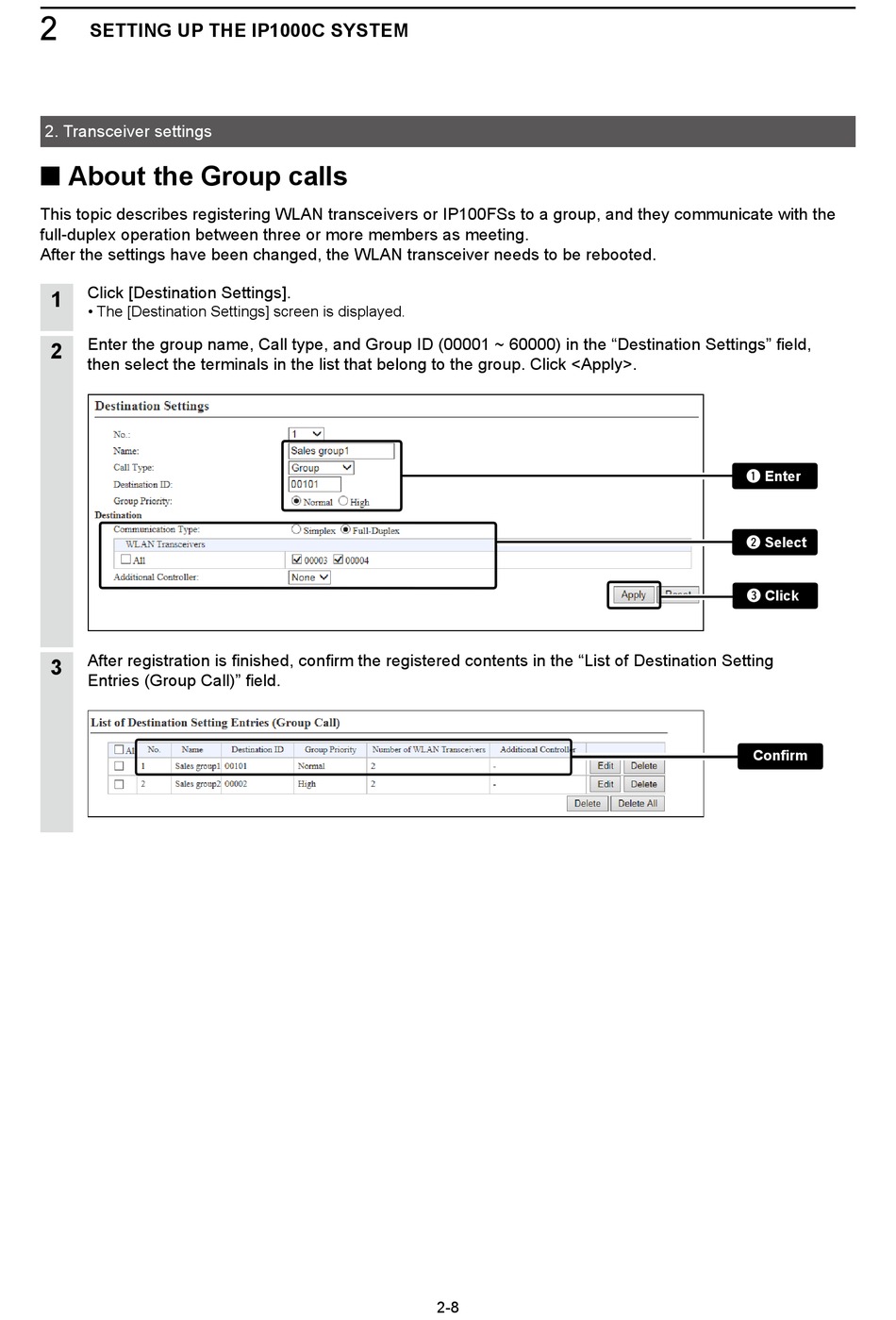

Icom IP1000C Instruction Manual page 27

2
SETTING UP THE IP1000C SYSTEM
2. Transceiver settings
■ About the Group calls
This topic describes registering WLAN transceivers or IP100FSs to a group, and they communicate with the
full-duplex operation between three or more members as meeting.
After the settings have been changed, the WLAN transceiver needs to be rebooted.
Click [Destination Settings].
1
• The [Destination Settings] screen is displayed.
Enter the group name, Call type, and Group ID (00001 ~ 60000) in the "Destination Settings" field,
2
then select the terminals in the list that belong to the group. Click <Apply>.
After registration is finished, confirm the registered contents in the "List of Destination Setting
3
Entries (Group Call)" field.
2-8
q Enter
w Select
e Click
Confirm
