4

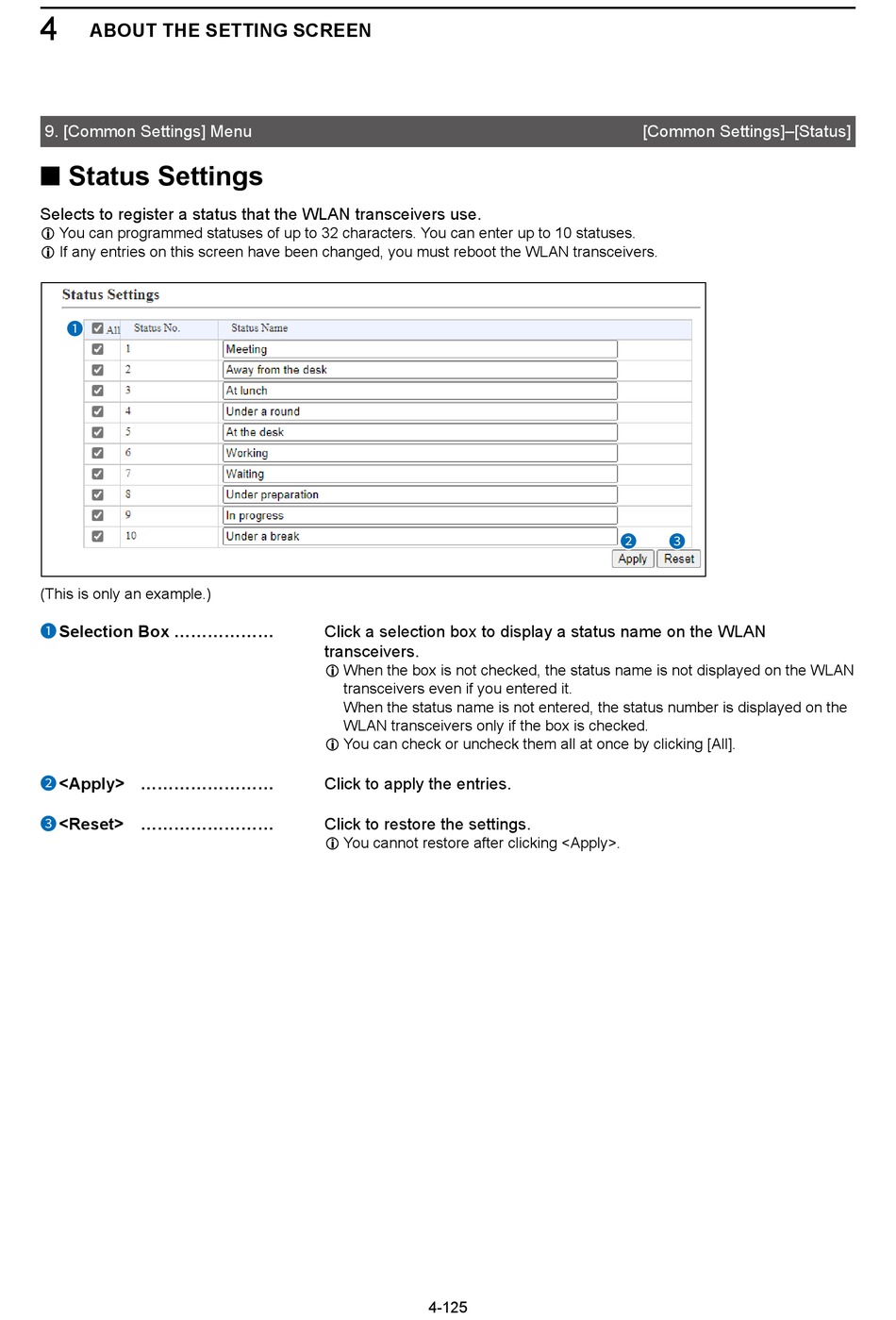

ABOUT THE SETTING SCREEN
9. [Common Settings] Menu
■ Status Settings
Selects to register a status that the WLAN transceivers use.
L You can programmed statuses of up to 32 characters. You can enter up to 10 statuses.
L If any entries on this screen have been changed, you must reboot the WLAN transceivers.
1
(This is only an example.)
Selection Box ������
1
<Apply> ��������
2
<Reset> ��������
3
Click a selection box to display a status name on the WLAN
transceivers.
L When the box is not checked, the status name is not displayed on the WLAN
transceivers even if you entered it.
When the status name is not entered, the status number is displayed on the
WLAN transceivers only if the box is checked.
L You can check or uncheck them all at once by clicking [All].
Click to apply the entries.
Click to restore the settings.
L You cannot restore after clicking <Apply>.
4-125
[Common Settings]–[Status]
2 3
